Electric Galvanized Wire

Electro Galvanized Wire / Lightly Galvanised Wire / Binding Wire / Bailing Wire / Baling Wire

Inquiry Form

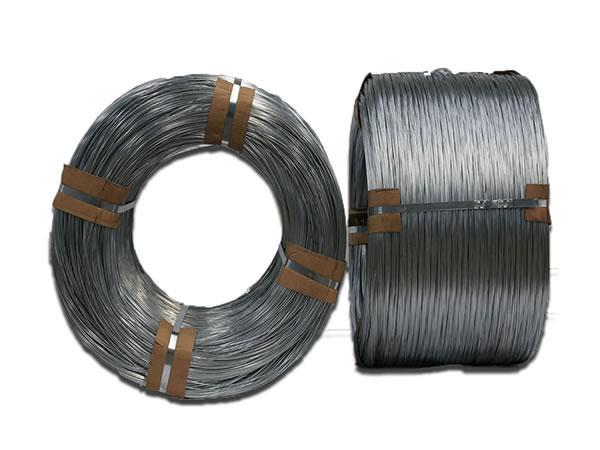

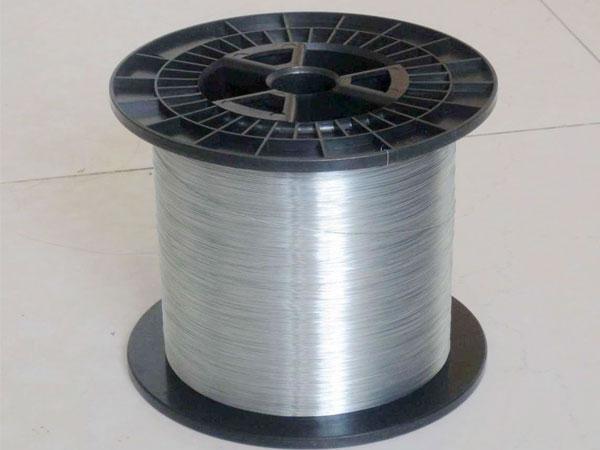

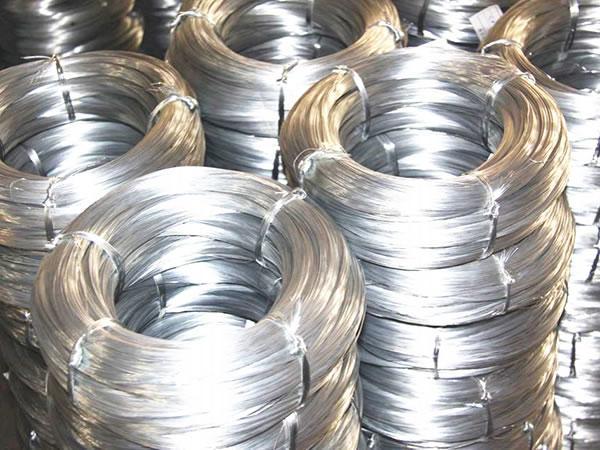

Electric galvanized wire, electro galvanized wire, or simply galvanized wire as it's called is produced in diameters ranging from 0.14mm to 5.0mm. The wire can be shipped in coils, spools, U type wire or straight wire, and can be cut into tie wires.

Production Process of Electric Galvanized Wire

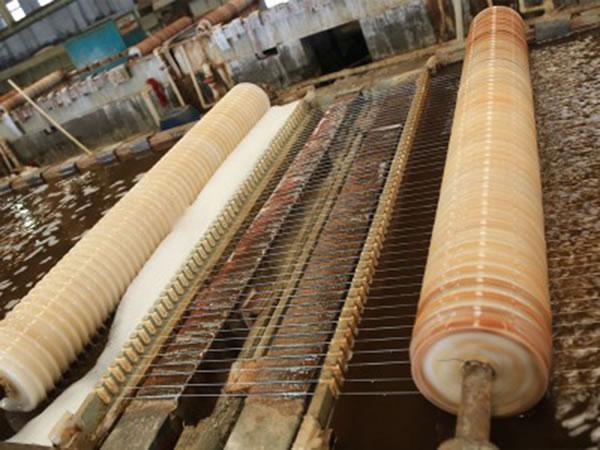

Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.

Electro galvanized wire is often used in construction and agricultural applications for the production of wire meshes, gabion boxes, highway fencing, bailing wire, armored cable, and many other useful products.

Wire Diameter of Electric Galvanized Iron Wire
0.14mm - 5.0mm.

Zinc Coating for Electric Galvanized Iron Wire
About 10-20g/m2.

Tensile Strength of Electric Galvanized Wire
35-55kgf/mm2, 350-550N/mm2,900-1200N/mm2, 1300-1800N/mm2

Standard
BS or ASTM

Packing Way of Electric Galvanized Wire
1-1000kgs/coils

Production Process of Electric Galvanized Iron Wire
Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.

Specification of Electric Galvanized Wire
Gauge SWG BWG BG AWG
# inch mm inch mm inch mm inch mm
0 0.324 8.23 0.34 8.639 0.3954 10.069 0.3249 8.252
1 0.3 7.62 0.03 7.62 0.3532 8.971 0.2893 7.348
2 0.276 7.01 0.284 7.214 0.3147 7.993 0.2576 6.544
3 0.252 6.401 0.259 6.579 0.2804 7.122 0.2294 5.827
4 0.232 5.893 0.283 6.045 0.25 6.35 0.2043 5.189
5 0.212 5.385 0.22 5.588 0.2225 5.652 0.1819 4.621
6 0.192 4.877 0.203 5.156 0.1981 5.032 0.162 4.115
7 0.176 4.47 0.18 4.572 0.1764 4.481 0.1443 3.665
8 0.16 4.046 0.165 4.191 0.157 3.988 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1398 3.551 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.125 3.175 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.1113 2.827 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0991 2.517 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.0882 2.24 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0785 1.994 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0699 1.775 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0625 1.588 0.0508 1.291
17 0.056 1.422 0.058 1.473 0.0556 1.412 0.0453 1.15
18 0.048 1.219 0.049 1.245 0.0495 1.257 0.0403 1.024
19 0.04 1.016 0.042 1.067 0.044 1.118 0.0359 0.912
20 0.036 0.914 0.035 0.839 0.0392 0.996 0.032 0.812
21 0.032 0.813 0.032 0.831 0.349 0.887 0.0285 0.723
22 0.028 0.711 0.028 0.711 0.03125 0.749 0.02535 0.644
23 0.024 0.61 0.025 0.635 0.02782 0.707 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02476 0.629 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.02204 0.56 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01961 0.498 0.01594 0.405
27 0.0164 0.417 0.016 0.406 0.01745 0.443 0.0142 0.361
28 0.0148 0.376 0.014 0.356 0.01562 0.397 0.01264 0.321
29 0.0136 0.345 0.013 0.33 0.0139 0.353 0.01126 0.286
30 0.0124 0.315 0.012 0.305 0.0123 0.312 0.01003 0.255
31 0.0116 0.295 0.01 0.254 0.011 0.27 0.00893 0.227
32 0.0108 0.274 0.009 0.229 0.0098 0.249 0.00795 0.202
33 0.01 0.254 0.008 0.203 0.0087 0.221 0.00708 0.18
34 0.0092 0.234 0.007 0.178 0.0077 0.196 0.0063 0.16
35 0.0084 0.213 0.005 0.127 0.0069 0.175 0.00561 0.143
36 0.0076 0.193 0.004 0.102 0.0061 0.155 0.005 0.127

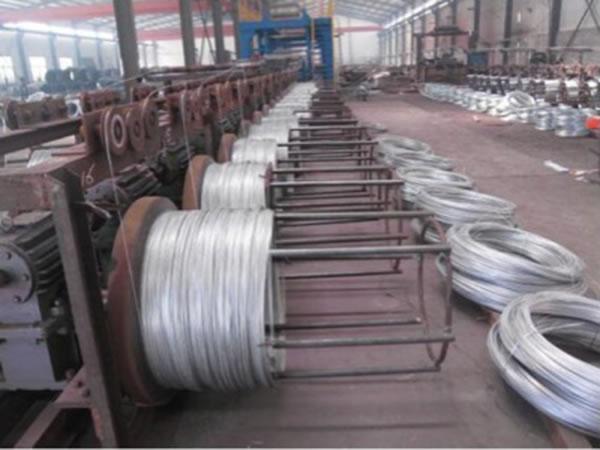

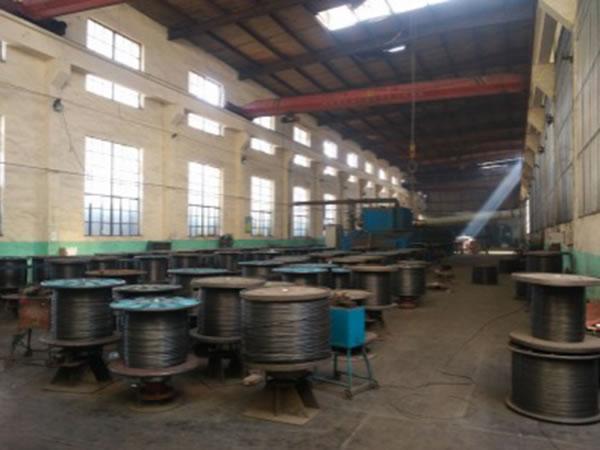

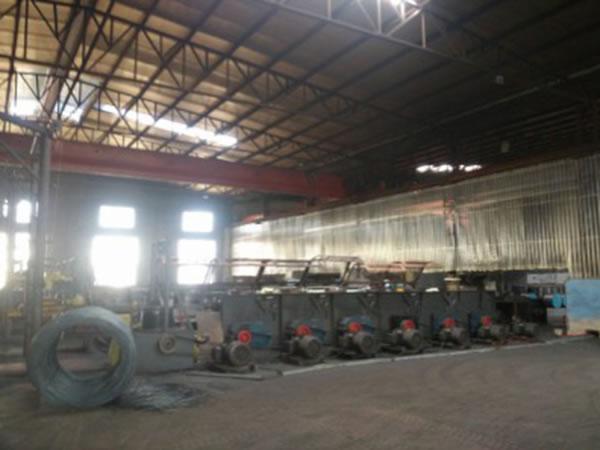

Factory Online Quality Control
