Phosphor Bronze Wire Mesh

This product has been discontinued and removed from our shelves.

Inquiry Form

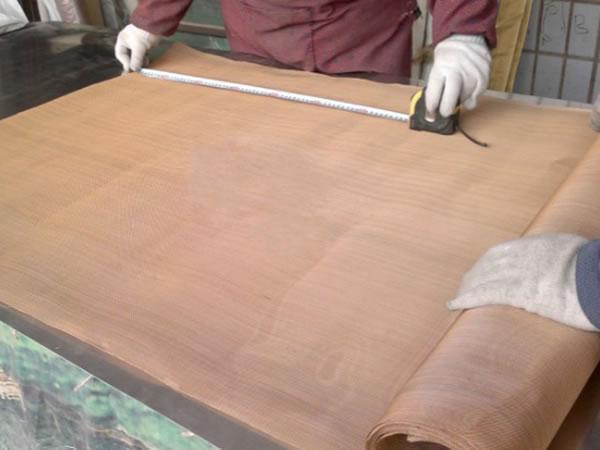

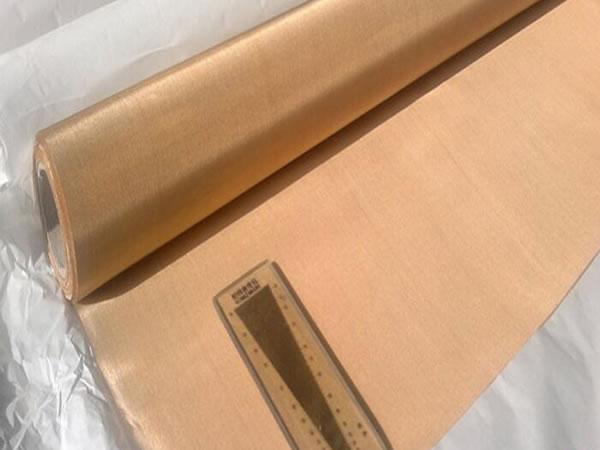

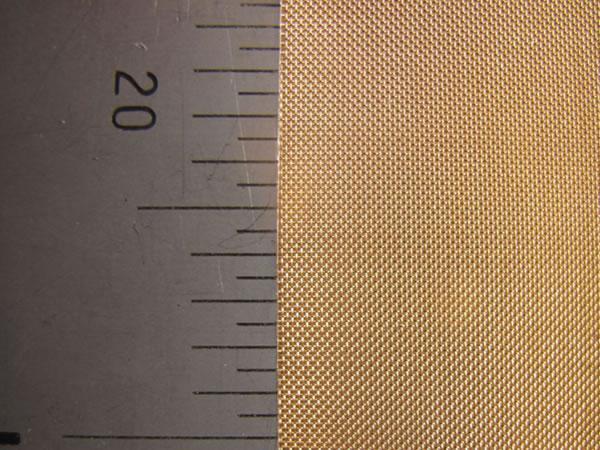

Shenzhou ZhongDi produces phosphor bronze wire mesh from 1 mesh to 400 mesh. It is also called phosphor bronze wire cloth. We produce rolls with a diameter from 0.2m to 3m and roll length from10m to 200m.

Material
Phosphor bronze wire is a copper alloy, with 2% to 8% Sn, approximately 0.1% to 0.4% phosphorous, the balance is copper. Red copper wire is a kind of industrial copper with a melting point of 1083℃.

Characteristics
Phosphor bronze wire is corrosion resistant, high strength, flexible and magnetic. The cloth is also noted for its outstanding electrical conductivity and thermal conductivity.

Uses
Usually used for sieving and filtering in pharmaceutical and food applications as well as in porcelain and glass processing.

Weave Method
Plain weave and twill weave.

Specification list for phosphor bronze wire mesh
Mesh/Inch Wire Dia
mm
d 		Mesh Opening mm
w 		Opening Area
A
% 		Weight
Kgs/m2 		Mesh/Inch Wire Dia
mm
d 		Mesh Opening
mm
w 		Opening Area A % Weight
Kgs/m2
4 1.20 5.15 65% 3.25 60 0.15 0.273 41% 0.76
5 1.00 4.08 65% 2.82 70 0.13 0.232 41% 0.66
6 0.71 3.52 69% 1.70 80 0.12 0.197 39% 0.65
8 0.70 2.47 61% 2.21 90 0.11 0.172 37% 0.61
10 0.50 2.04 65% 1.41 100 0.10 0.154 37% 0.56
12 0.45 1.66 62% 1.37 120X108 0.09 0.132 35% 0.52
14 0.40 1.41 61% 1.26 120 0.08 0.132 39% 0.43
16 0.30 1.28 66% 0.81 140 0.06 0.121 44% 0.28
18 0.25 1.16 68% 0.63 150 0.06 0.109 42% 0.30
20 0.25 1.02 65% 0.70 160 0.06 0.098 38% 0.32
22 0.38 0.77 44% 1.79 180 0.05 0.091 42% 0.25
30 0.20 0.65 58% 0.67 200 0.05 0.077 37% 0.28
32 0.25 0.54 46% 1.13 250 0.04 0.061 36% 0.22
40 0.23 0.40 40% 1.19 300 0.03 0.054 41% 0.15
50 0.17 0.33 44% 0.81 325 0.03 0.048 37% 0.16
60x50 0.19 0.26 34% 1.12 350 0.03 0.042 34% 0.17
60x50 0.17 0.28 39% 0.89 400 0.025 0.038 36% 0.14
(Roll width):0.60m-2.9m
