Slope Stabilization / Diamond Wire Rope Net / Erosion Blanket

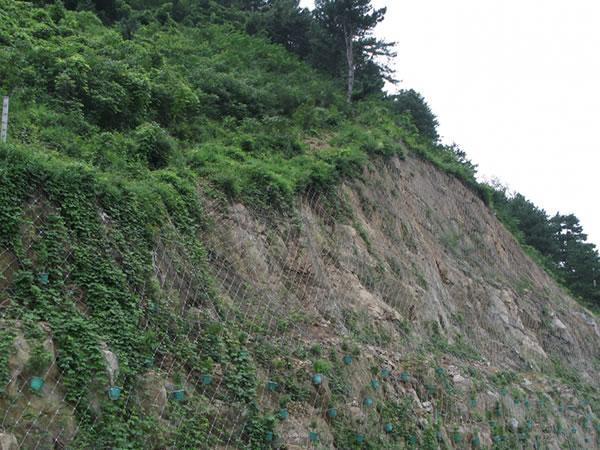

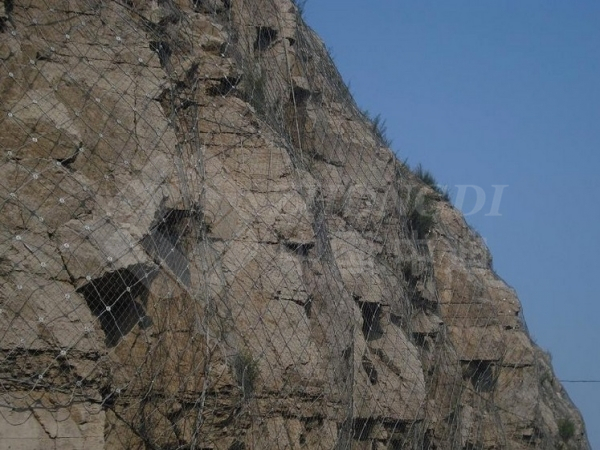

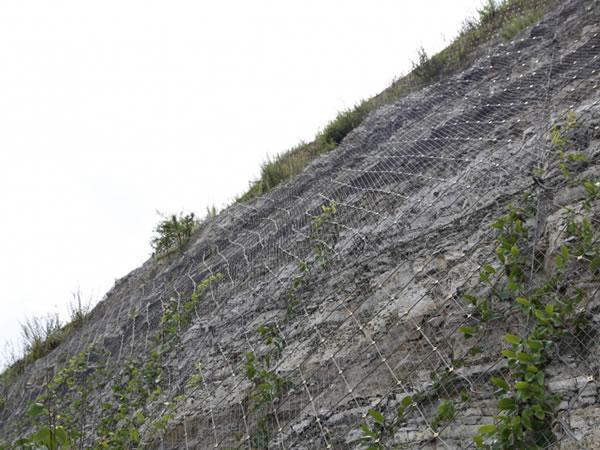

The WICCO system is a slope stabilization system that consists of a diamond wire rope net that can be installed on a slope face to hold down any lose rocks that may fall into undesired locations.
WICCO system erosion blanket consists of the diamond wire rope net, grid net, anchors, anchor bearing plate, border and seaming ropes and net connection elements.
Diamond wire rope net: Rope wire diameter: 8mm; Hole size: 300mm (+/- 5%); Roll size:4.0m x 4.0m, 4.5m x 4.5m etc.
1) Wire diameter: 2.0mm or 2.2mm;
2) Hole size: 50mm*50mm;
3) Roll size: 2m*20m
Deformed steel bar anchor diameter: 25mm or 28mm; Length:2m -5m; Anchor bearing plate: 320mm x 170/180mm
1) Border rope diameter: 12mm or 16mm;
2) Seaming rope diameter: 8mm
