Slope Stabilization System / Erosion Blanket / PVC coated diamond wire rope net

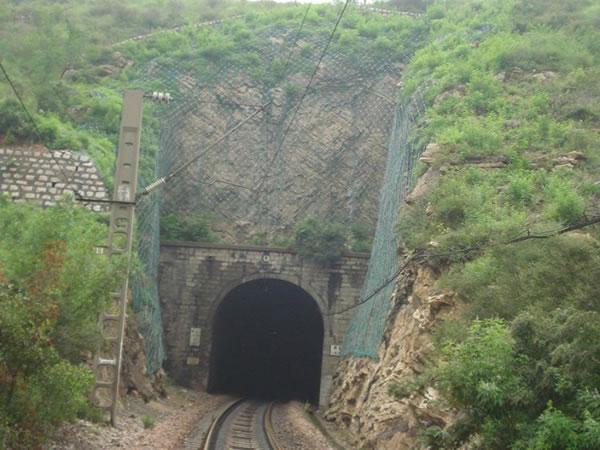

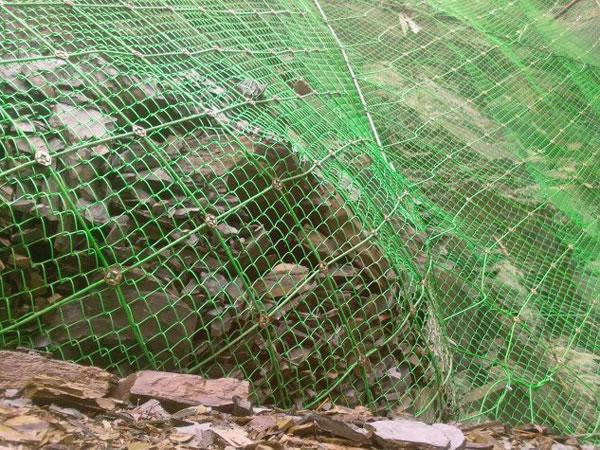

The NACCO system another slope stabilization system that uses a PVC coated diamond wire rope net. The netting effectively holds down any loose rocks and prevents them from falling into undesired locations.
The NACCO system consists of the diamond wire rope net, grid net, anchors, anchor bearing plate, border and seaming ropes and net connection elements.

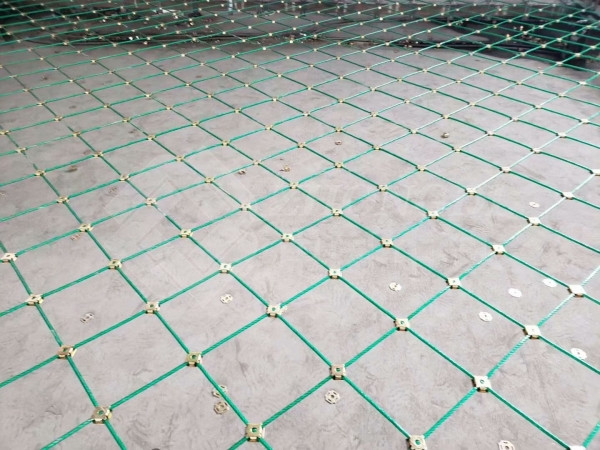

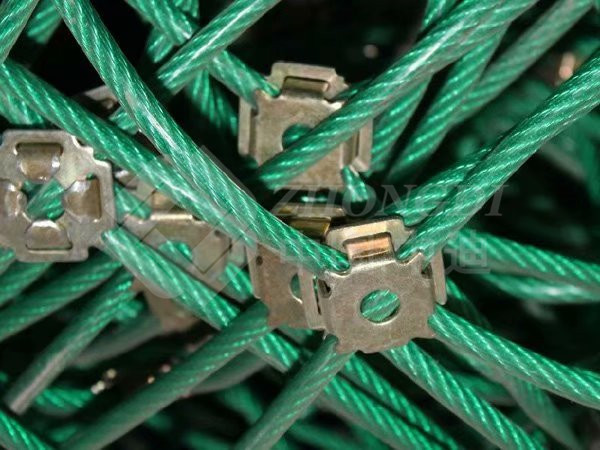

PVC Coated Diamond Wire Rope Net:
Rope wire diameter: 8mm
Hole size: 300mm (+/- 5%)
Roll size: 4m x 4m, 4.5m x 4.5m etc.
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m
Deformed steel bar anchor diameter: 25mm or 28mm
Length: 2m -5m
Anchor bearing plate: 320mm x 170/180mm
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
