Diamond Wire Rope Net System / Flexible Slope Protection System / Galvanized Steel Wire Rope Net / Flexible Steel Wire Rope Netting / SNS Shielding System / Stone Blocking Mesh / SNS Wire Mesh
SNS slope protection systems include SNS passive and SNS active slope protection systems. These slope protection systems are composed of the SNS slope protection mesh, steel wire mesh, decompression rings, supporting rope, sewing rope, steel columns, boundary ropes, wire rope anchors and other installation components.
This slope protection system is designed using the latest international standards for rock slope protection systems. Compared to traditional construction methods, an SNS slope protection system has overcome problems caused by grid construction defects, thus shortening the duration and cost for construction. The entire system is comprised of a high strength steel wire, bolt, and other installation components.
An SNS slope protection mesh is the main component to an SNS protection system. It is made of a steel wire rope, and due to this flexibility, not only adapts to uneven mountain or landslide surfaces, but also effectively buffers and disperses broken stones and their impact force. By pairing with other system components, an outstanding protection performance is guaranteed to prevent rock slopes from collapsing or falling. With the development and application of new technologies, the utilization rate of construction technology has increased, leading to an increase in the use of SNS slope protection systems to prevent geological disasters.
Anti-corrosion rust | √ | Clean Appearance | √ |
Solid Construction | √ | Uniform Grid Patterns | √ |
Economical and Versatile | √ | Strong and Stable | √ |
Extremely versatile & workable | √ | Low resistance to wind loads | √ |
Product Name | SNS Active/Passive Slope Protection Mesh | Material | High tensile steel wire /Stainless Steel Wire |
Hole Shape | Diamond / Square | Surface Treatment | Zn/Al Coated / Galvanized |
Wire Rope Diameter | 8mm-10-12mm | Type | Woven Wire Mesh |
Mesh Size | 150mm,200mm,250mm,300mm | Feature | Anti-corrosion rust |
SNS Active Slope Protection System

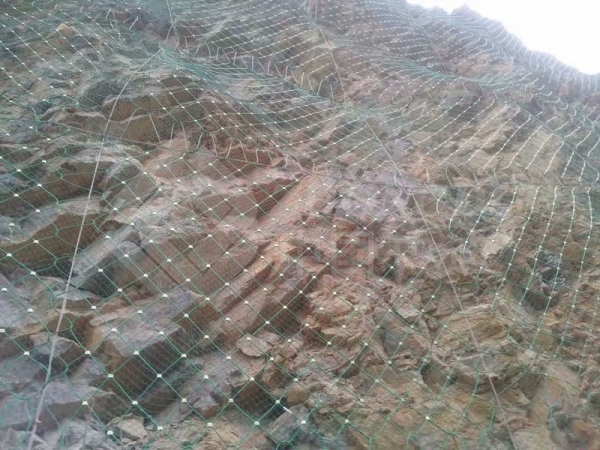

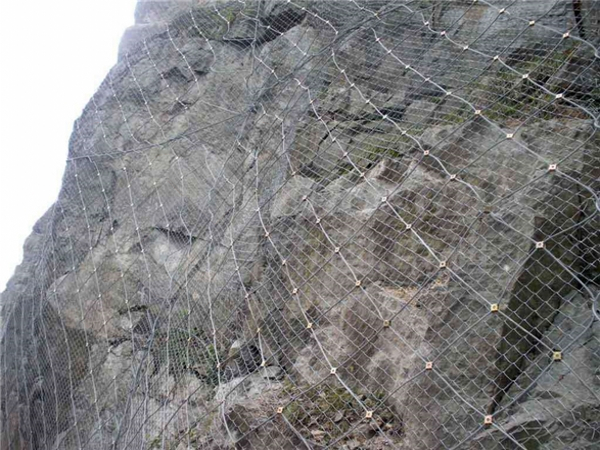

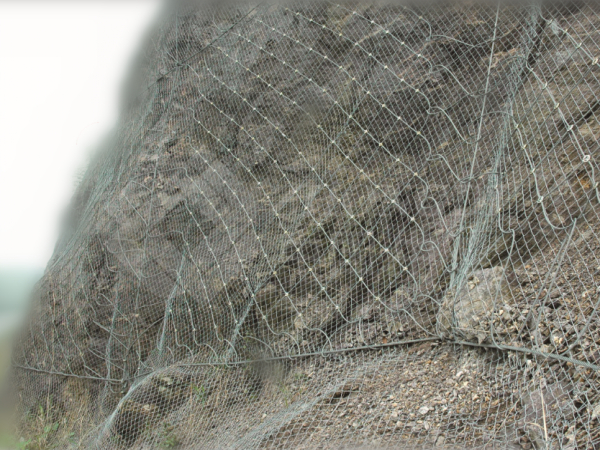

SNS active slope protection systems(also known as a passive SNS protection system)are more commonly referred to as rockfall netting as they are a wire rope net made of a steel wire rope. This rope is used in combination with installation components such as a wire rope anchor, sewing rope, and boundary rope, and are attached to the side. The surface of the sloping mountain body prevents gravel from falling, and due to the wire rope’s flexibility, the mesh surface not only features an outstanding protective performance, but also easily adapts to uneven slopes for an excellent protective performance.

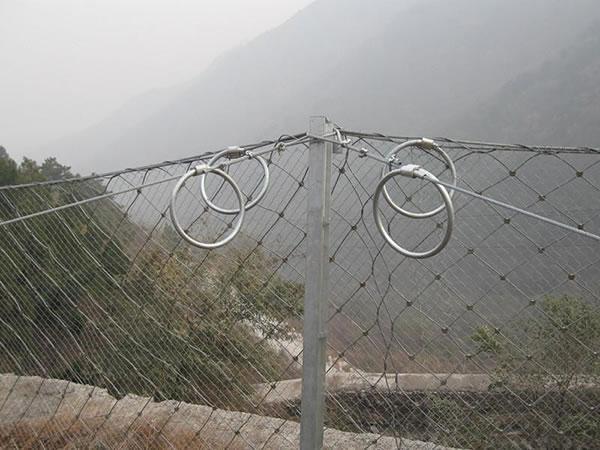

SNS Passive Slope Protection System
The SNS passive slope protection system is also known as a stone blocking mesh. It consists of a variety of components, including an SNS slope protection mesh, steel wire mesh, decompression rings, supporting rope, sewing rope, PC bar and steel column.

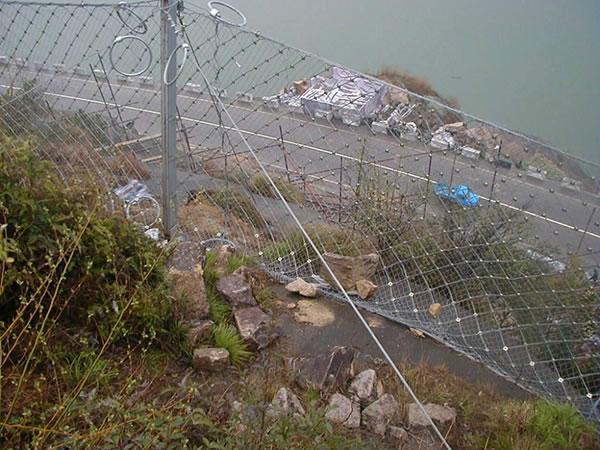

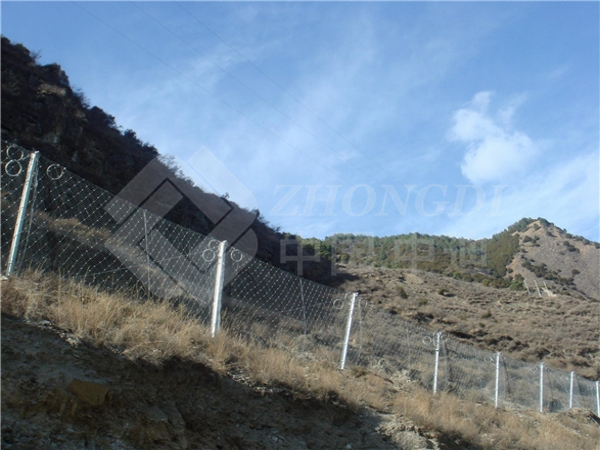

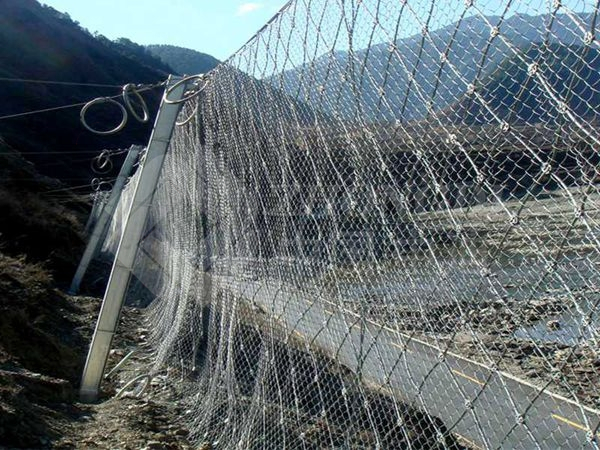

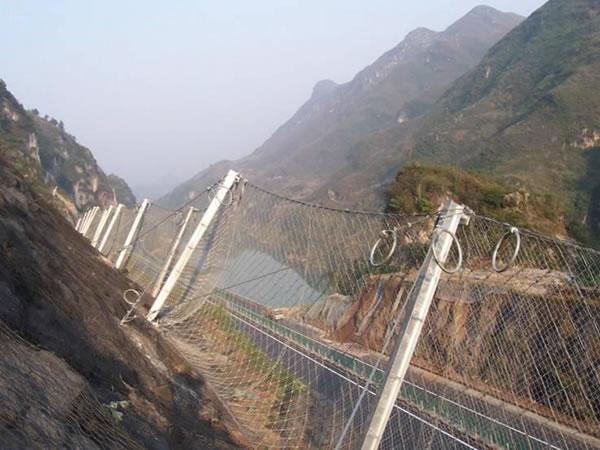

Although it is also made of wire rope nets made of steel wire rope, unlike the SNS active slope protection system, the SNS passive slope protection system is a protective net wall typically installed under a slope or mountain (or mid-mountain) so that when stone slides, the passive slope protection system acts as a protective wall to prevent impact caused by falling stone and prevent any loss caused by the falling stones.
It is also possible to use both SNS active and passive slope protection systems in combination with slope and mountain engineering conditions to achieve the best possible protection.
