Ferrule Stainless Steel Wire Rope Mesh

Inquiry Form

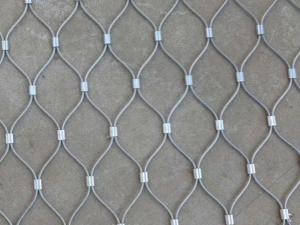

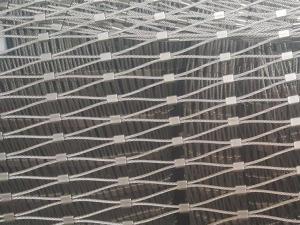

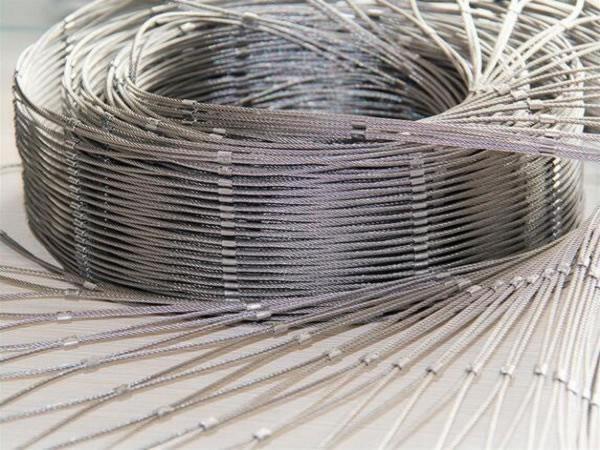

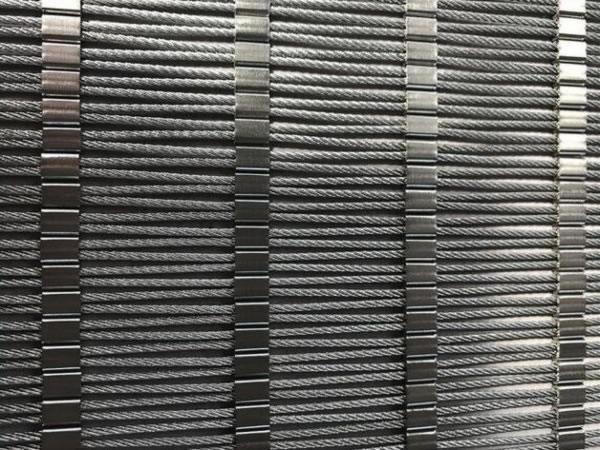

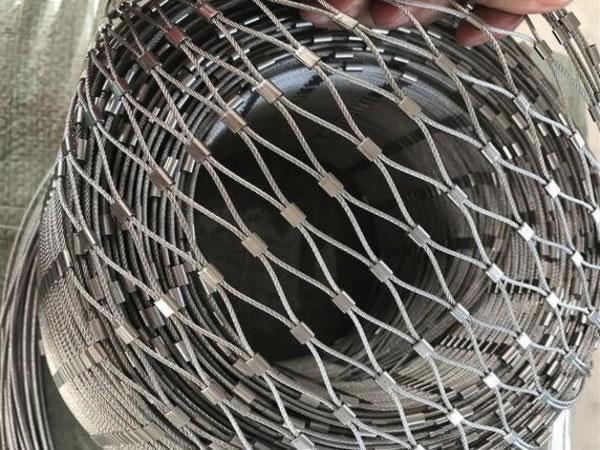

The Ferrule Stainless Steel Wire Rope Mesh, also called sleeve wire rope mesh feature wire ropes that are constructed from parallel connections and reciprocally curved stainless steel ferrules.

The wire rope construction is 7 x 7 or 7 x 19. The standard mesh angle is 60°. All of the components are made from the AISI 304 or AISI 316 material group. The mesh construction can be pulled apart like an accordion, producing a spring force that varies depending on the mesh aperture and wire rope thickness. The Ferruled Mesh is a vibrant, premium-quality product : the mesh aperture ( variable, from very tight to very wide ) and the wire rope diameter ( 1.2mm,1.6mm, 2.0mm, 2.4mm, 3.2mm ) determine its functionality and aesthetics. The Ferruled Mesh is mostly applied in architectural applications.

Stainless Steel Ferrule Wire Rope Mesh is a modern construction product that offers new ideas for global decoration and protection.

The advantage of the Ferrule Stainless Steel Wire Rope Mesh:
1. The netting is clipped to the cable.
2. The hole size and diameter can be modified.
3. It can be made to customer orders and statically tested – especially suitable for facades.
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5. Anti-corrosive.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Environmentally friendly.

Application of Ferrule Stainless Steel Wire Rope Mesh
Balustrade infills
Fall protection
Helidek safety net
Security net
Separation mesh
Facade greenery
Parking garage facades
Decoration

Flexible Ferrule Stainless Steel Wire Rope Mesh (Ferrule Type)
Item No. Cable Structure Cable Diameter Mesh Opening Size(W×H) Normal Break
inch mm inch mm lbs.
HL-3212F 7×19 1/8 3.2 4.75 x 8.23 120 x 207.8 1,600
HL-3210F 7×19 1/8 3.2 4 x 6.9 102 x 176.7 1,600
HL-3211F 7×19 1/8 3.2 3.55 x 6.15 90 x 156 1,600
HL-3212F 7×7 1/8 3.2 3 x5.2 76 x 131.6 1,600
HL-3213F 7×7 1/8 3.2 2 x3.46 51 x88.3 1,600
HL-3214F 7×7 3/32 2.4 4x6.9 102x176.7 920
HL-3215F 7×7 3/32 2.4 3.55x6.15 90x 156 920
HL-3216F 7×7 3/32 2.4 3 x 5.2 76x 131.6 920
HL-3217F 7×7 3/32 2.4 2.4x 4.16 60x 104 920
HL-3218F 7×7 3/32 2.4 2x3.46 51 x 88.3 920
HL-3219F 7×7 5/64 2.0 3 x 5.2 76 x 131.6 676
HL-3220F 7×7 5/64 2.0 2.4x 4.16 60 x 104 676
HL-3221F 7×7 5/64 2.0 2 x 3.46 51 x 88.3 676
HL-3222F 7×7 5/64 2.0 1-1/2 x 2.6 38 x 65.8 676
HL-3223F 7×7 1/16 1.6 1.2 x2.08 76 x 131.6 480
HL-3224F 7×7 1/16 1.6 2x 3.46 51 x 88.3 480
HL-3225F 7×7 1/16 1.6 1-1/2 x 2.6 38 x 65.8 480
HL-3226F 7×7 1/16 1.6 1.2x2.08 30 x 52 480
HL-3227F 7×7 1/16 1.6 1 x 1.73 25.4 x 44 480
HL-3228F 7×7 3/64 1.2 1-1/2x2.6 38 x 65.8 270
HL-3229F 7×7 3/64 1.2 1.2 x 2.08 30 x 52 270
HL-3230F 7×7 3/64 1.2 1 x 1.73 25.4 x 44 270
HL-3231F 7×7 3/64 1.2 4/5 x 1.39 20 x 34.6 270

FAQ

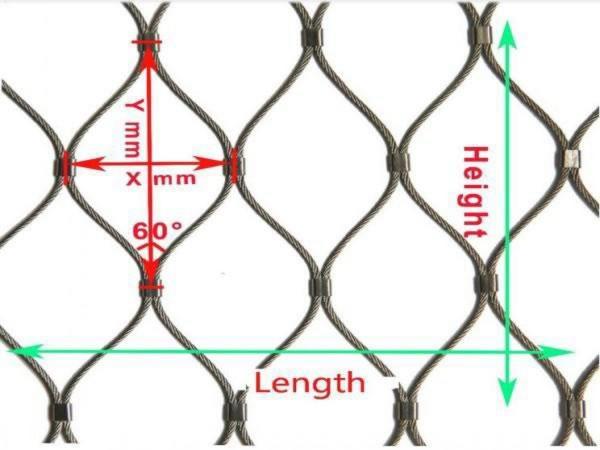

How to measure the mesh?
1. Front and Back: dispensable, just for looking beautiful.

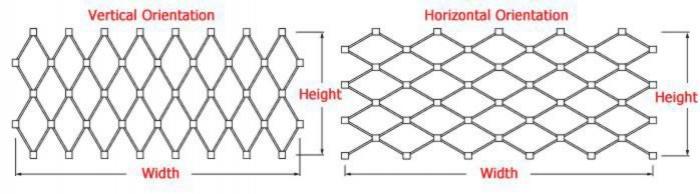

2. Size of mesh opening and the Direction of mesh panel
3. Size of each mesh panel
Standard size is 30ft x 60ft ( 9m x 18m )

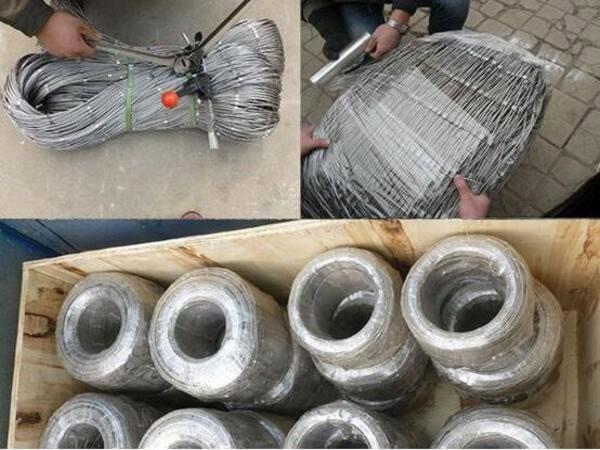

What the mesh size and packing of Ferrule Stainless Steel Wire Rope Mesh?
1. Size of each mesh panel:
Standard size is 30ft x 60ft (9m x 18m )
Mesh can be produced as customers' required sizes, but each panel is better no larger than 9m x 18m, for convenient to production, shipping and installation.

More question & information, please send us email for clarification.
