This product has been discontinued and removed from our shelves.
Stainless steel reverse Dutch belts are also known as stainless steel reversed Dutch wire mesh, auto mesh belt filter, reversed Dutch wire mesh, reversed Dutch mesh belt filter, and auto mesh belt filter.

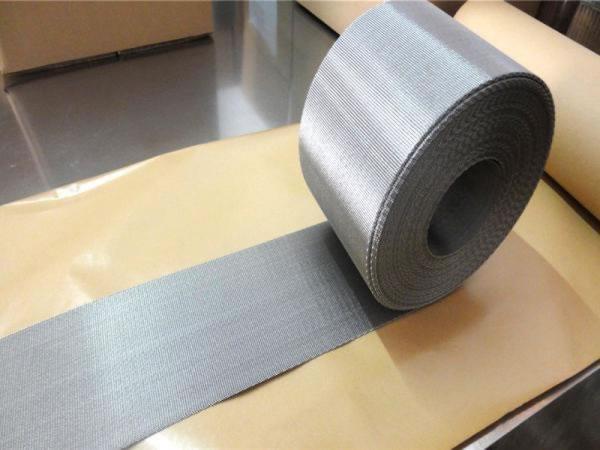

Reverse Dutch weave belt (also known as PZ weave) is a very strong woven product in which more warps and fewer wefts are found in the belt, thus reversing the method used in plain Dutch weave and twilled Dutch weaves. It is sometimes referred to as PZ and KPZ mesh.
Features of Stainless Steel Reverse Dutch Belts
The stainless steel reverse Dutch belts are made of high quality, high strength stainless steel wires. With the use of advanced equipment and precise production technology, the mesh features a smooth surface, high hardness, continuous net, no deformations, high temperature resistance, corrosion resistance and more attractive features. It has an outstanding filtering performance.
Material of Stainless Steel Reverse Dutch Belts: Stainless steel wire SUS302, 304, 316 or 316L.
Weaving Methods of Stainless Steel Reverse Dutch Belts: Reverse plain Dutch weave, reverse twill Dutch weave.
1. Reverse Plain Dutch Weave
RPD has warp wires laid as closely as possible to one another with relatively thin diameters, while the weft wires are very strong. This design is called a reversed weave.
2. Twilled Reverse Dutch Weave
TRD is also a reversed Dutch twilled type, although in a twilled form. The warp wires are distributed the same way as the reverse plain Dutch weave, however, the weft wires are knocked up in a twilled weave pattern, so as not to deform the warp wires.

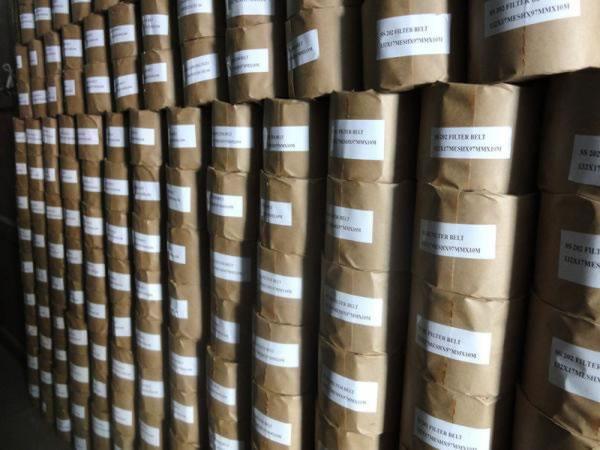

Packing Method of Stainless Steel Reverse Dutch Belts: Wooden case or according to your requirements.
Application of Stainless Steel Reverse Dutch Belts
• Filter for plastic, rubber, oil industry.
• High tensile warp wire for auto-screen changers used in the plastic extrusion industry.
• Rubbed edges after slitting to help with tracking for auto-screen changers.
• Plasma and laser cut parts to help prevent edge wire fraying.
• 100% inspection of wire cloth for critical applications such as sand screens and aerospace applications.
Specifications of Stainless Steel Reverse Dutch Belts

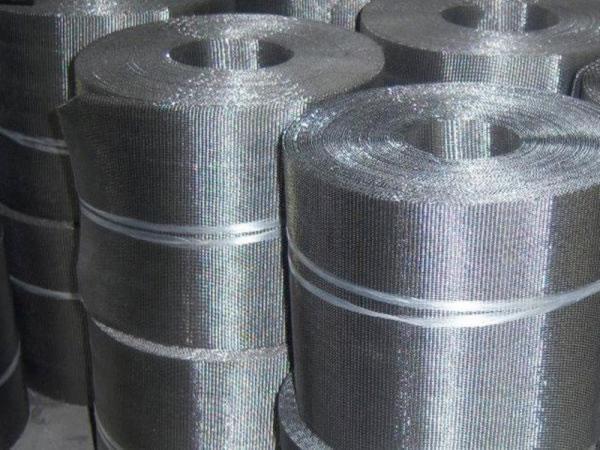

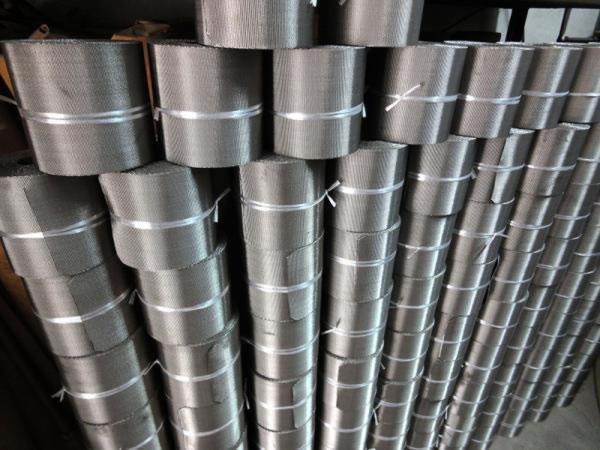

Stainless steel reverse Dutch belts are a Dutch weave wire mesh. As weft wire is much thicker than warp wire, it is called reverse Dutch weave. Standard dimensions include a roll length of 10m, width of 40mm-210mm, and 40mesh-350mesh, with the widest width reaching up to 50cm. If these do not fit your requirements, customized options can be designed.
|Mesh Counts||Wire Diameter(mm)||Thickness(mm)||Width(mm)|
(Other specifications are also available, please contact us for more information.)
