Guardrail posts determine the barrier's impact performance
As a provider of various guardrail and other highway safety equipment, our products are supported by these high quality guardrail posts to give the system strength at its base in order to withstand impact forces in the case of a collision.
The steel guardrail posts we supply are carefully designed and made of high quality materials, such as Q235, Q345 and Q255 steels. Additionally, the posts boast a long service life due to our superior zinc or PVC coatings which offer high resistance to rust and corrosion.
Available types of guardrail posts
We provide galvanized guardrail posts with or without flange plates. Generally, the post withour a flange plate is embedded in soft soil by post anchors. However, if you want to fix the post in concrete, the post with the plate is the best choice.
Specifications of Guardrail Posts
Material:Q235B, Q345B etc.
Post Styles: U post, H post, Round post, Sigma post, C post, Square post etc.
Surface Treatment: Hot-dipped Galvanized, Aluminium Coating, PVC coating.
Zinc Coating: 550-1100g/m2
Post Thickness: 3.00-7.00mm
Post Height: 450mm-3000mm ( other size is available as your requirements.)
Standards: AASHTO M 180, ENISO1461, JT/T281-2007, BS6399, BS6180:1999 etc.
|Shapes||Cross section sizes:|

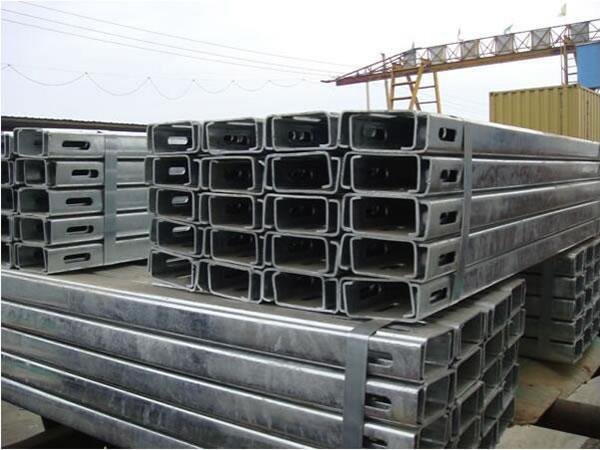

|U shape post||120×80mm, 150×75mm|

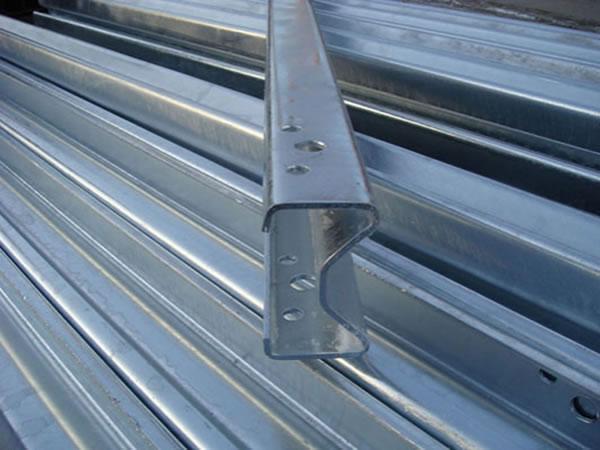

|C shape post||100×50mm, 120×55/68/80mm, 150×120mm, 1600×120mm|

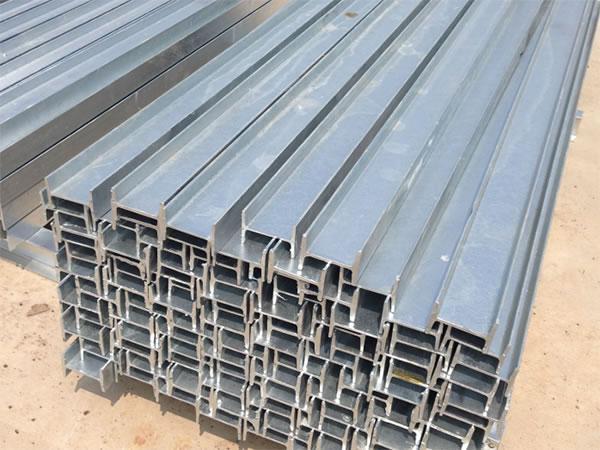

|H shape post||120×55mm, 140×73mm|

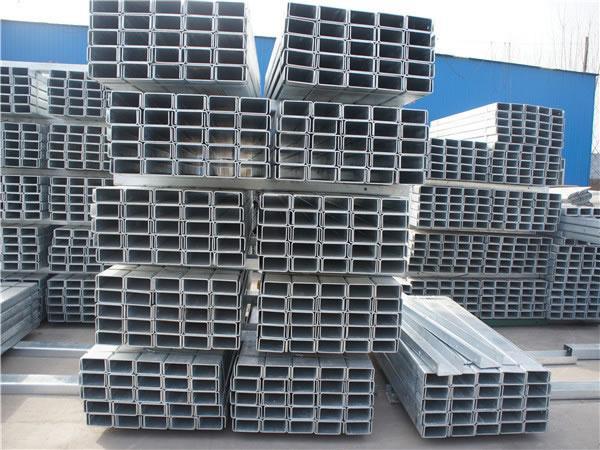

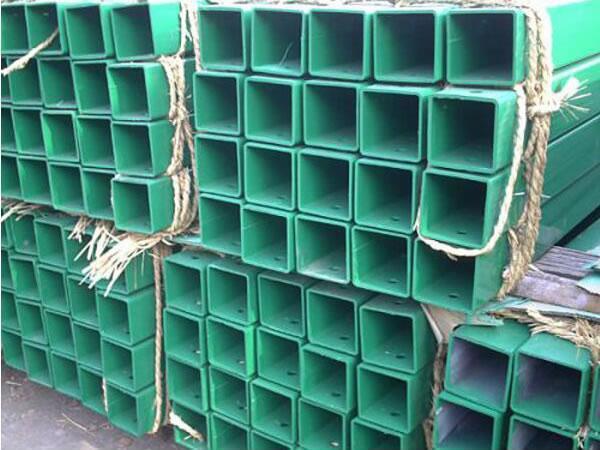

|Square post||130×130mm or 4'×4', 5'×5', 6'×6'|

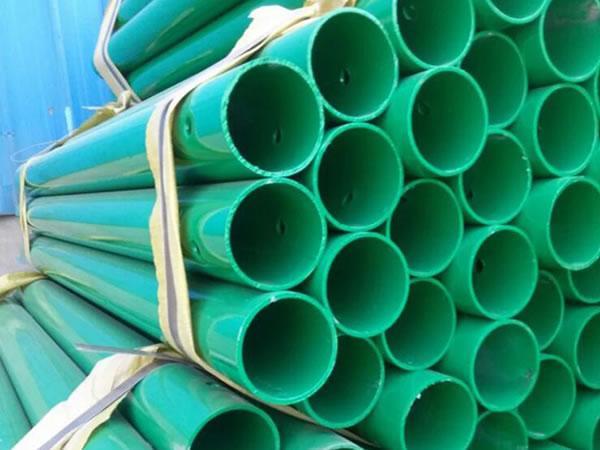

|Round post||Diameter: 100mm - 150mm|
