This product has been discontinued and removed from our shelves.
The conveyor belt is classified into different categories, including: balanced weave conveyor belt, chain driven conveyor belt, flat flex conveyor belt, flat wire conveyor belt, flat ladder conveyor belt, roller chain conveyor belt, and conveyor wire belt.
Main Technical Parameters
1. Width: 150-5500mm
2. Speed: 0.15-0.5m/min
3. Service Temperature: -40℃-1300℃
4. Edge Mode: Flanged Edge, Upset Head, Welding,
5. Optional Raw Material: Low Carbon Steel Wire, Carbon Steel Wire, Galvanized Wire, Stainless steel Wire, High Temperature Alloy
Features
1. The metal conveyor belt has an outstanding resistance to corrosion, abrasion and high temperatures.
2. In subzero temperature and high temperature, it has satisfying performances in resistance to thermal contraction, oxidation and fractures.
3. The product also has a reasonable design, compact structure, diverse specifications, convenient installation, reliable operation and more.
Application
ZhongDi metal conveyor belts can work in various work conditions for a long time and it is widely used in automatic glass work, petro chemistry fiber, food industry, glass fiber, electric furnace, kiln furnace, machinery, powder metallurgy, purging, reflux welding, metal heat treatment and stoving furnace etc.
Classification
1. According to the adopted material, the metal conveyor belt can be divided into the 1cr13 type, 201 type, 304 type and 316 type.

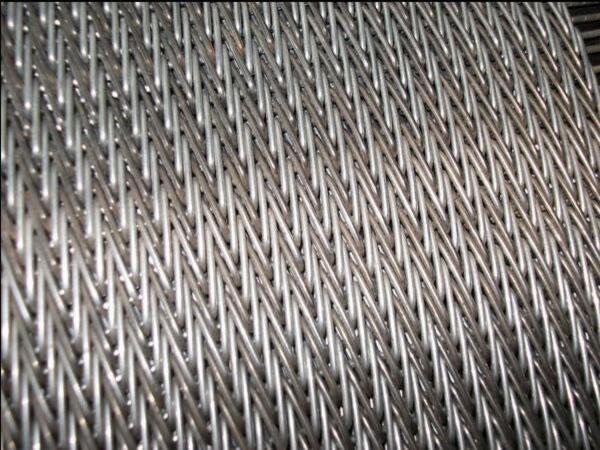

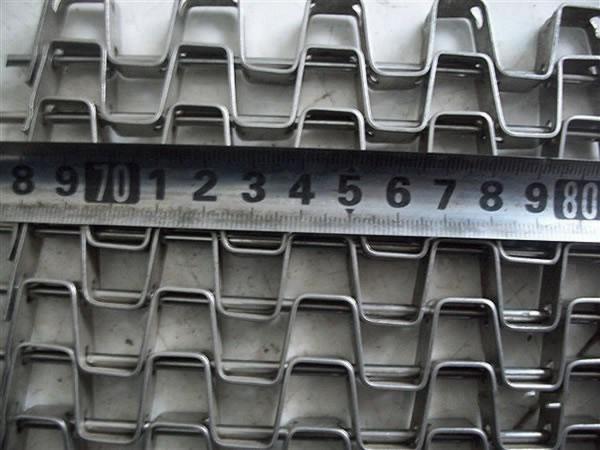

2. By shape, the product has the herringbone type, flat ladder type, diamond type, calla type, chain type, flat range type, chain plate type, ball type and more.
C | Mn | Fe | Sn | Ni | Si | S | Cr | P | Cu |
Max | Max | Max | Max | Max | Max | Max | Max | Max | Max |
0.08 | 2.00 | Rem | 0.025 | 34.0- 37.0 | 0.75 - 1.50 | 0.03 | 17.0- 20.0 | 0.03 | 1.00 |
Material | SS304 /316 / AISI304 |

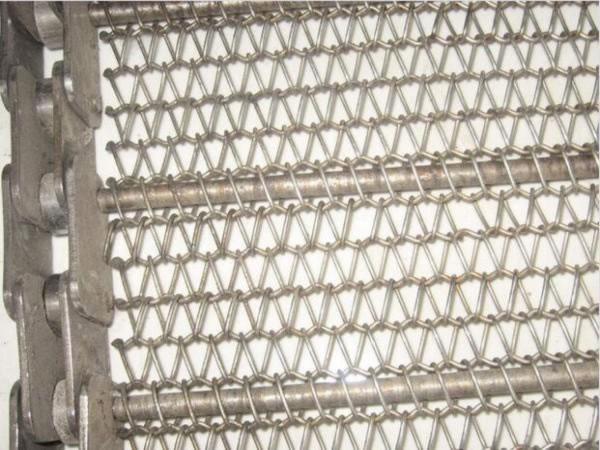

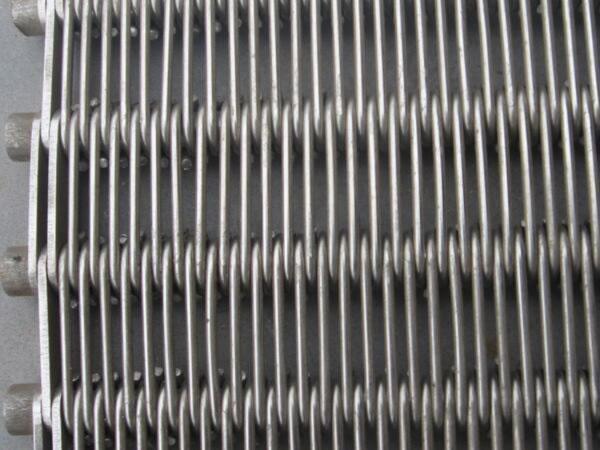

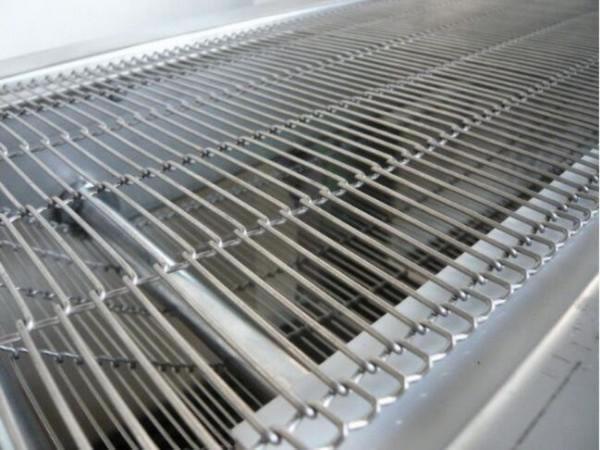

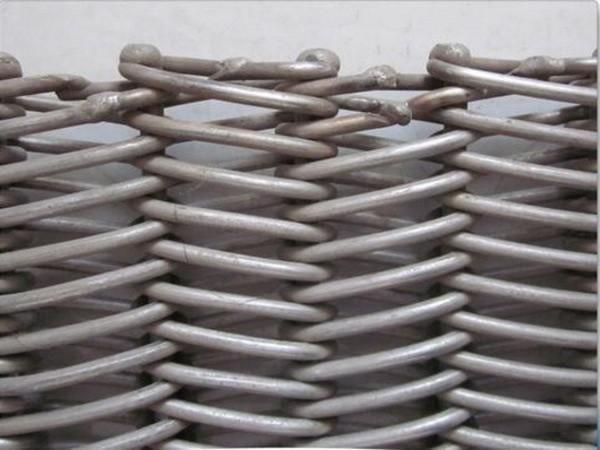

Types: | Chain plate belt; Spiral mesh belt; Flat flex mesh belt; Balanced weave mesh belt; Rhombus mesh belt; Honcycomb mesh belt; Loop wire belt. |

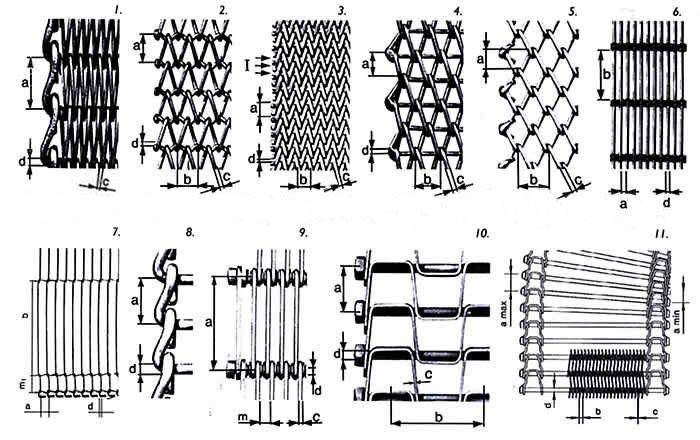

a - pitch(the distance from the centre of cross rod to the centre of cross rod) |
b - rising(the distance from the center of spiral wire to the centre of spiral wire) |
c - diameter of spiral wires or wire loop |
d - diameter of cross rod |
m - mesh(the distance between wires) |
ml - length of end eye |
l - number of cross bars per a pitch |
L - belt length |
S - belt width |
We can make various sizes and styles according to customer requirement.
