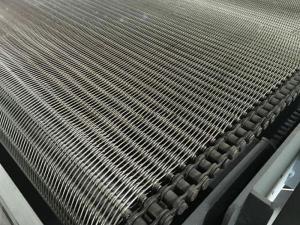

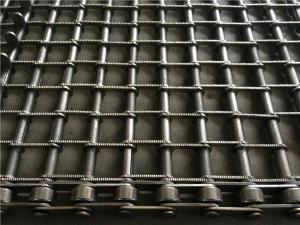

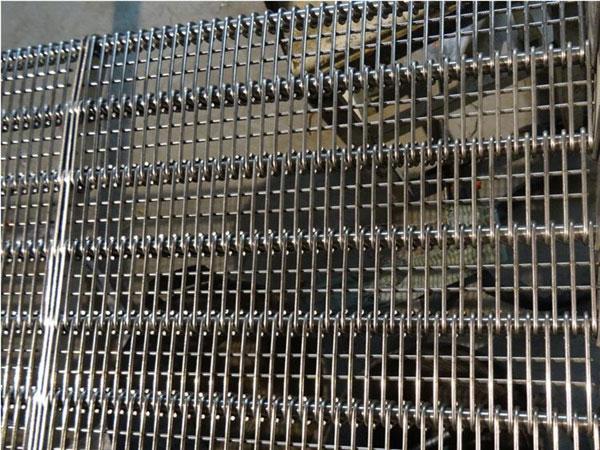

Eye Link Conveyor Belt
This product has been discontinued and removed from our shelves.
Application:
Eye link conveyor belt is mainly used in quick-drying equipment, such as casting equipment, quenching tank, dehydration equipment, sterilization equipment, drying equipment, sand-blast equipment of stainless steel, filtrating equipment, packaging equipment, bake-out furnace, cooling equipment, fulling and scalding machine, storage equipment, shrink wrapping equipment and cleaning equipment.
Materials:
stainless steel 304, stainless steel 316

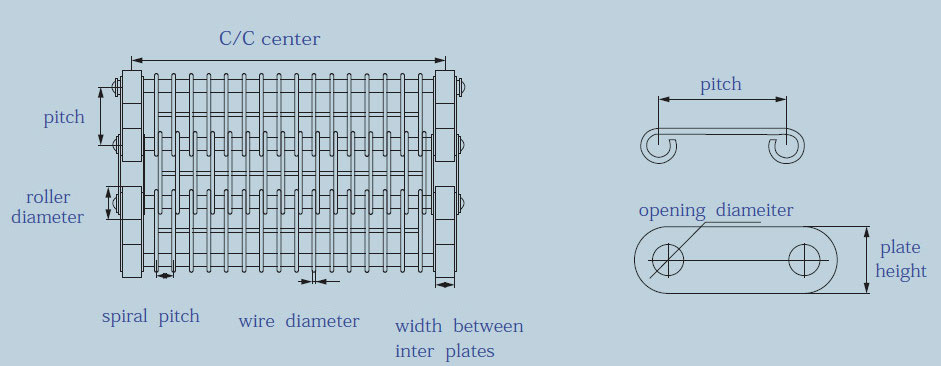

| Pitch mm |
Wire Dia mm |
Cross Rod Dia mm |
Minimal centre-to-centre distance between 2 eyelinks |
Minimal centre-to-centre distance between 2 eyelinks in welded version |
Pitch mm |
Wire Dia mm |
Cross Rod Dia mm |
Minimal centre-to-centre distance between 2 eyelinks |
Minimal centre-to-centre distance between 2 eyelinks in welded version |
| 15.9 | 1.80 | 3.20 | 3.60 | - | 50 | 2.00 | 5.00 | 4.00 | 3* |
| 25.4 | 1.60 | 5.00 | 3.20 | 3.25 | 50 | 2.50 | 5-7 | 5.00 | 5.05 |
| 25.4 | 2.00 | 5.00 | 4.00 | 3* | 50 | 3.20 | 6.00 | 6.40 | 6.45 |
| 30 | 1.60 | 4.00 | 3.20 | 3.25 | 50.8 | 2.00 | 5-8 | 4.00 | 3* |
| 30 | 2.00 | 4.00 | 4.00 | 4.05 | 50.8 | 2.50 | 5-8 | 5.00 | 5.05 |
| 38.1 | 2.00 | 8.00 | 4.00 | 4.05 | 50.8 | 3.00 | 8.00 | 6.00 | 6.05 |
| 38.1 | 2.50 | 8.00 | 5.00 | 5.05 | 75 | 2.50 | 5-8 | 5.00 | 5.05 |
| 38.1 | 3.00 | 8.00 | 6.00 | 6.05 | 75 | 3.00 | 8-10 | 6.00 | 6.05 |
| 50 | 1.60 | 5.00 | 3.20 | 3.25 | 76.2 | 3.00 | 10-13 | - | 6.05 |
| * Pressed and welded, type DPL | |||||||||
Feature:

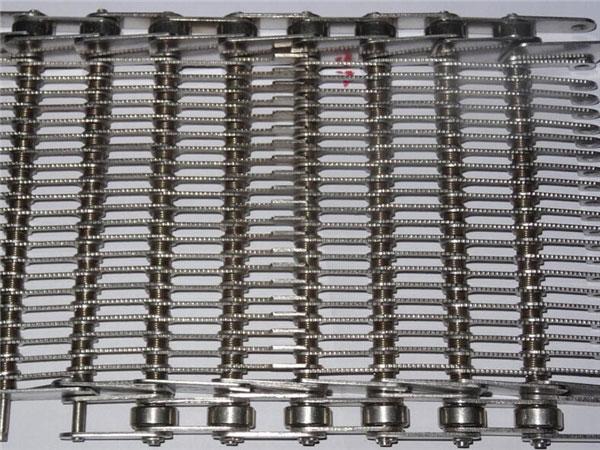

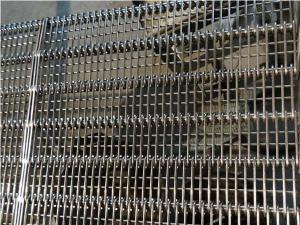

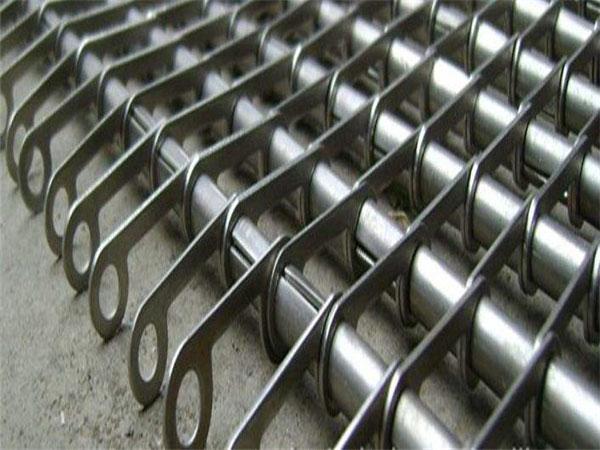

Eye link conveyor belt is made of circular steel wire or piece of steel to make eyeglasses shape, and then interweave the glasses hole to form mesh belt. So it is easy to treat liquids and gases and easy to clean. It can be drive combining with sprocket or drum. Sliding fastener phenomenon will not occur and cylinder with smaller diameter can be used, which ensure good operation and it’s easy to maintain. Using eye link conveyor can improve productivity and helps to control production costs and improve the whole product quality.
