Erosion Blanket / Steel Wire Mesh / Slope Stabilization

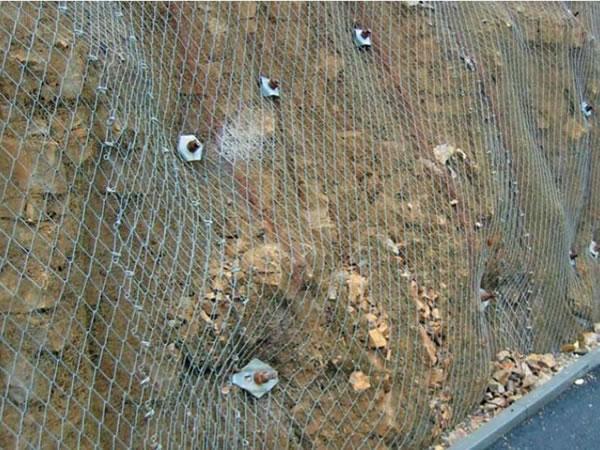

The TECCO system consists of TECCO steel wire mesh, anchors, an anchor bearing plate, border and suture ropes and net connection elements.

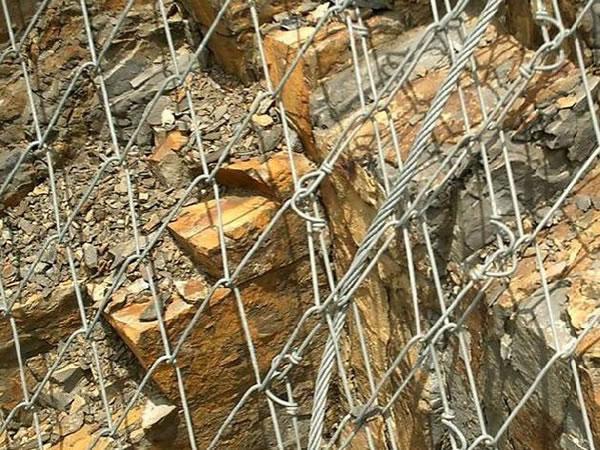

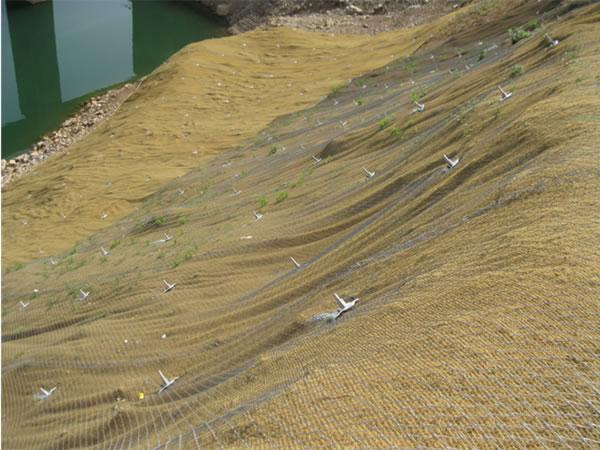

The TECCO steel wire mesh is made using 3mm high-tensile steel wire. And with anchors the TECCO steel wire mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.
Standard Specification of TECCO steel wire mesh
Hole Inscribed circle diameter: 65mm (+/- 5%)
Roll Size: 3.3m x 10m/20m/30m
Deformed steel bar anchor diameter: 25mm or 28mm

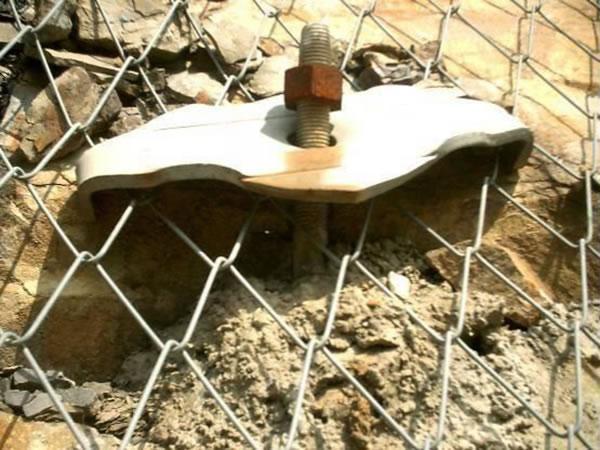

Anchor bearing plate: 320mm x 170/180mm
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.

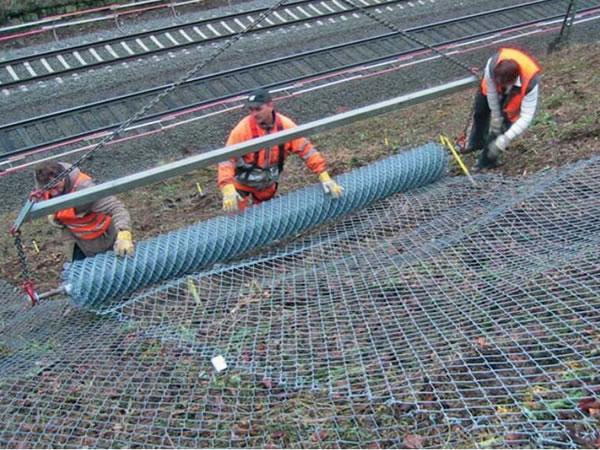

Fast and easy installation
