Stainless Steel Bolting Cloth

Bolting Cloth / Bolting Wire Cloth / Bolting Wire Mesh

Inquiry Form

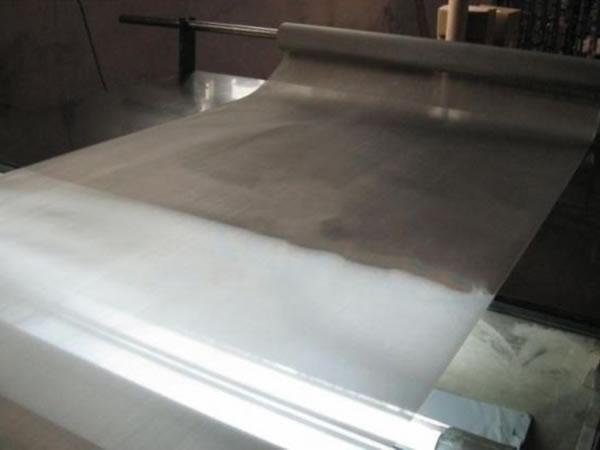

Stainless steel tensile bolting wire cloth is woven of extremely smooth, highly durable wire to speed up the bolting action and increase the capacity of vibratory screening machines.

The enhanced strength and toughness of stainless steel bolting cloth makes it the most durable of all fine wire cloths, ideal for industrial sifting and sizing uses for light materials requiring a high throughput allowed by enhanced useable open area.

Weaving Type: Plain weave.

Features of Stainless Steel Bolting Cloth

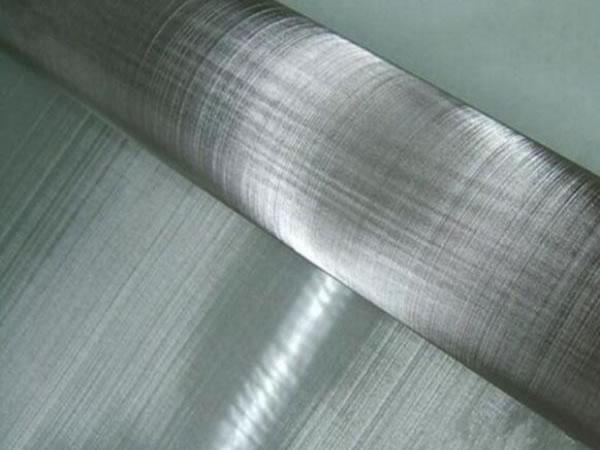

Stainless steel bolting cloth is made from a light wire woven into a plain square mesh. The light wire provides a high percentage of open area.
Stainless steel bolting cloth is mainly made of AISI 304 18-8 stainless steel or a few AISI 316 stainless steel, a tough and durable grade of stainless steel, and is woven with precision to the highest accuracy and quality standards.

Specifications of Stainless Steel Bolting Cloth
Mesh Per Lineal Inch Wire Diameter Inches Opening Width Inches Open Area %
16X16 .0090 .535 73.3
18X18 .0090 .0466 70.4
20X20 .0090 .0410 67.2
22X22 .0075 .0380 69.7
28X28 .0075 .0282 62.4
30X30 .0065 .0268 64.8
34X34 .0065 .0229 60.7
36X36 .0065 .0213 58.7
38X38 .0065 .0198 56.7
40X40 .0065 .0185 54.8
42X42 .0055 .0183 59.1
46X46 .0055 .0162 55.8
50X50 .0055 .0145 52.6
58X58 .0045 .0127 54.6
60X60 .0045 .0122 53.3
62X62 .0045 .0116 51.7
64X64 .0045 .0111 50.7
70X70 .0037 .0106 54.9
76X76 .0037 .0095 51.7
78X78 .0037 .0091 50.6
80X80 .0037 .0088 49.6
90X90 .0035 .0076 46.8
94X94 .0035 .0071 45.4
105X105 .0030 .0065 46.9
120X120 .0026 .0057 48.4
135X135 .0023 .0051 47.4
145X145 .0022 .0047 46.4
165X165 .0019 .0042 47.1
200X200 .0016 .0034 46.2
230X230 .0014 .0029 44.5
400X400 .0009 .0016 35.1
