Stainless Steel Wire Mesh for Screen Printing

This product has been discontinued and removed from our shelves.

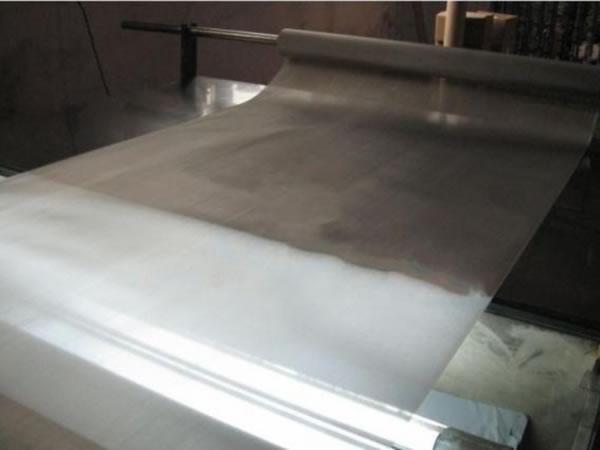

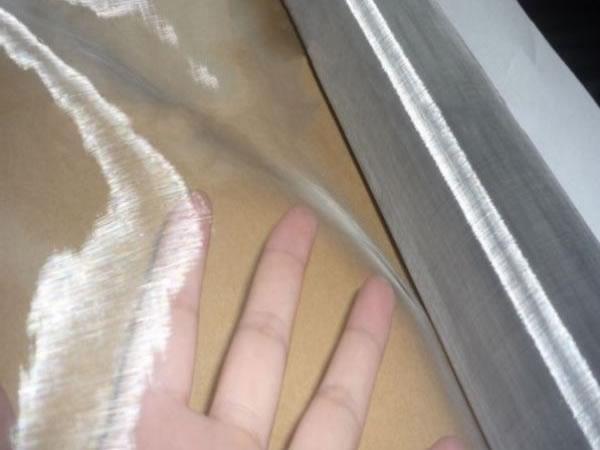

Stainless steel wire mesh for screen printing is also called stainless steel wire cloth for screen printing, and features a large open area. With the use of high viscosity paste, the low printing pressure is possible. This kind of screen printing mesh uses a wire with a tensile strength that is 3 times higher than that of standard stainless steel wire mesh, with an extremely low elongation rate of 3～5％ and the open area ratio exceeding 60％.

Stainless steel wire mesh for screen printing is made of T316L or T304 high tensile stainless steel wire. Wire cloth for screen printing can be used for the screen printing on bottles, flacons, drinking glasses, decorative glasses, high value ceramic fittings, vases, crockery and other surfaces.

Features
• High precision of the mesh openings
• Uniform weave (no mesh striping)
• Exceptionally high yield point
• Very narrow thickness tolerance
• Large open area
• Firm mesh binding
• Easy to use (flat lying, no curl)
• No static charge

Applications
• Printed circuit boards
• Multilayers
• Thick film
• Soldering pastes for SMT
• Keypads
• Scales
• Glass printing
• Ceramic printing

Popular Weaving Types: Plain weave.

Application
Stainless steel wire cloths for screen printing are now widely used in various fields, such as medical equipment electronics packages, liquid crystal devices, SMD, and printed circuit boards. The tensile strength of 1000-1100N/mm2 and the strength yield of 600-800N/mm2, as well as the uniform thickness and size of mesh are essential for high precision stainless steel wire cloth.

Specification of Stainless Steel Wire Mesh Clothes for Screen Printing
Mesh/Inch Wire Diameter
um 		Aperture
um 		Open Area
% 		Thickness
um 		Through ink
mm/m³ 		Material
40 160 475 56 300-320 179.1 316L/304
50 140 368 52 265-280 146.9 316L/304
60 120 303 51 230-245 123.2 316L/304
70 70 293 65 135-143 91.2 316L/304
80 120 198 39 235-245 92.9 316L/304
80 90 228 52 175-180 93.1 316L/304
80 50 268 71 95-100 71.0 316L/304
100 100 154 37 195-205 77.2 316L/304
120 80 132 39 155-165 65.8 316L/304
150 60 109 42 115-124 50.0 316L/304
165 35 119 60 70-75 48.0 316L/304
165 45 109 50 88-93 45.1 316L/304
165 50 104 46 97-105 45.6 316L/304
180 45 96 48 88-93 41.5 316L/304
180 50 91 42 96-104 41.7 316L/304
200 40 87 47 78-82 37.5 316L/304
200 50 77 37 98-103 36.8 316L/304
230 35 75 46 58-61 28.8 316L/304
250 40 62 37 69-74 23.2 316L/304
250 30 72 50 58-62 29.8 316L/304
250 35 67 43 64-68 31.2 316L/304
270 35 59 40 71-75 30.1 316L/304
300 30 55 42 65-69 28.8 316L/304
325 30 48 38 62-66 28.2 316L/304
325 28 50 41 60-64 26.4 316L/304
325 23 55 50 49-53 25.4 316L/304
350 25 48 43 46-49 18.7 316L/304
360 16 55 60 31-35 21.5 316L/304
400 23 41 41 50-54 22.0 316L/304
400 18 46 51 36-40 19.5 316L/304
500 18 33 42 36-40 15.3 316L/304
