High Tensile Wire Mesh for Screen Printing

This product has been discontinued and removed from our shelves.

Inquiry Form

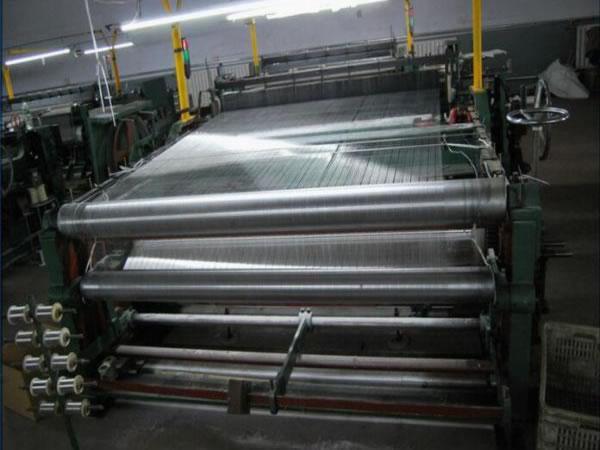

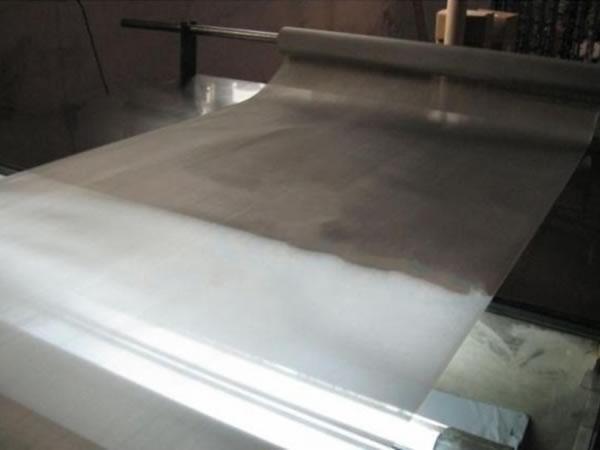

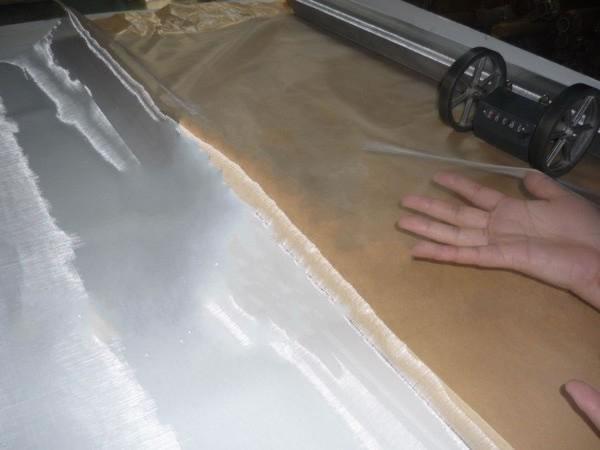

High tensile wire mesh for screen printing has a large open area. This kind of screen printing mesh uses a wire whose tensile strength is 3 times higher than that of a standard stainless steel wire mesh, with an extremely low elongation rate of 3～5％ and the open area ratio exceeding 60％. Ultra-thin wire diameter and high open area ratio make it possible to print high viscosity paste at low printing pressure. This product features an extraordinary performance in printing processes that require fine patterns and dimensional accuracy. Ultra-thin stainless steel wire mesh is used to apply phosphors on plasma display panel (PDP). Recently, it is also becoming widely used for sieving applications.

High tensile wire mesh for screen printing is widely used in the electronics industry due to its ability to produce precise thin and thick layers from various paste-like materials including conductive, resistive, dieletric or organic layers. The materials can be processed to create more electronic functions on the substrates, including on conductors, dielectrics, capacitors, resistors, coils, antennas, diodes, transistors, electroluminescence devices, bio sensors and embedded components in the multilayer circuits.

Applications
• Thick film micro-electronics
• Hybrid circuits
• Solar / Photovoltaic applications
• MCM's
• Ultra-fine lines
• Microelectronic packaging
• Low temperature co-fired ceramics
• Diffusion patterning process
• Solder paste & adhesives
• Membrane switches
• Electronic display systems
• Printed circuits

Specification of High Tensile Wire Mesh for Screen Printing
Mesh/Inch Wire Diameter
um 		Aperture
um 		Open Area
% 		Thickness
um 		Through ink
mm/m³ 		Material
40 160 475 56 300-320 179.1 316L/304
50 140 368 52 265-280 146.9 316L/304
60 120 303 51 230-245 123.2 316L/304
70 70 293 65 135-143 91.2 316L/304
80 120 198 39 235-245 92.9 316L/304
80 90 228 52 175-180 93.1 316L/304
80 50 268 71 95-100 71.0 316L/304
100 100 154 37 195-205 77.2 316L/304
120 80 132 39 155-165 65.8 316L/304
150 60 109 42 115-124 50.0 316L/304
165 35 119 60 70-75 48.0 316L/304
165 45 109 50 88-93 45.1 316L/304
165 50 104 46 97-105 45.6 316L/304
180 45 96 48 88-93 41.5 316L/304
180 50 91 42 96-104 41.7 316L/304
200 40 87 47 78-82 37.5 316L/304
200 50 77 37 98-103 36.8 316L/304
230 35 75 46 58-61 28.8 316L/304
250 40 62 37 69-74 23.2 316L/304
250 30 72 50 58-62 29.8 316L/304
250 35 67 43 64-68 31.2 316L/304
270 35 59 40 71-75 30.1 316L/304
300 30 55 42 65-69 28.8 316L/304
325 30 48 38 62-66 28.2 316L/304
325 28 50 41 60-64 26.4 316L/304
325 23 55 50 49-53 25.4 316L/304
350 25 48 43 46-49 18.7 316L/304
360 16 55 60 31-35 21.5 316L/304
400 23 41 41 50-54 22.0 316L/304
400 18 46 51 36-40 19.5 316L/304
500 18 33 42 36-40 15.3 316L/304

(For more specifications and information, please contact us.)
