Flexible Stainless Steel Cable Mesh

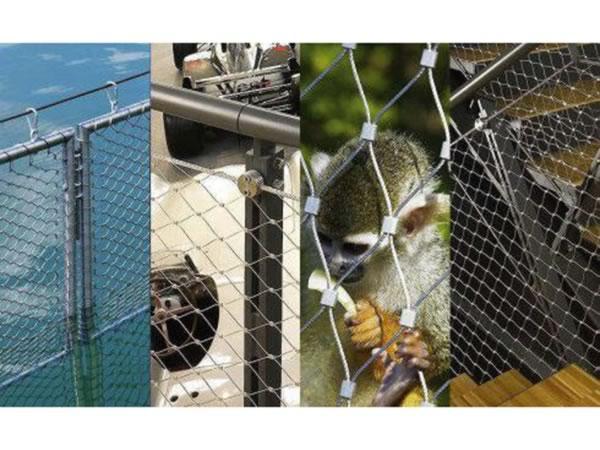

Flexible stainless steel cable mesh netting, or stainless steel wire rope mesh, and stainless steel cable net, is very popular in the field of modern architectural decoration and animal cages. The ZhongDi Plant's independently developed equipment and techniques can ensure consistently high quality production with each and every product.

Flexible stainless steel rope mesh netting is made from stainless steel wire rope in various grades, like SUS304, SUS304L ,SUS316, SUS316L etc. and two main strand structures: 7*7 and 7*19. Our mesh products are supplied in two main series according to different weave-types: Inter-woven and Ferrule Type. The ferrule type series are sub-divided into aluminum alloy mesh and stainless steel mesh by the material of the ferrule.

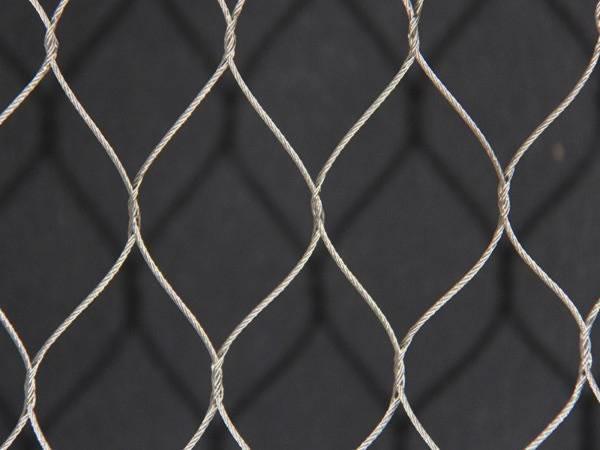

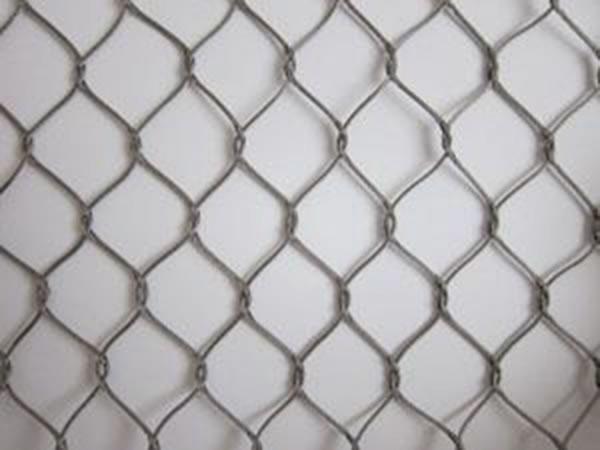

  • Inter-woven Type

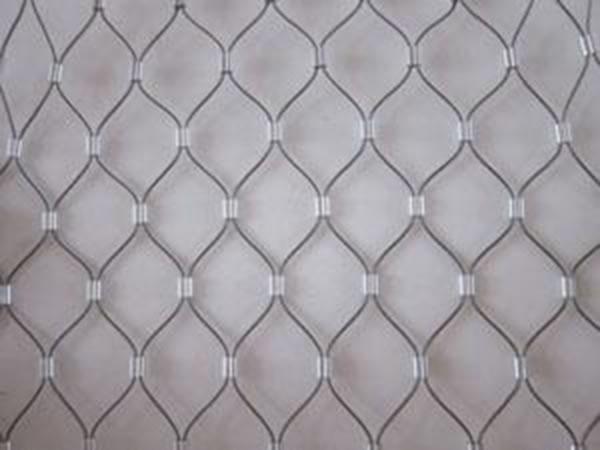

  • Ferrule Type(Aluminium ferrule)

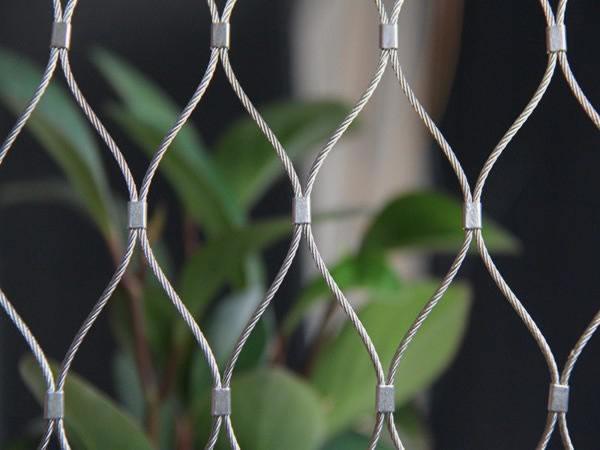

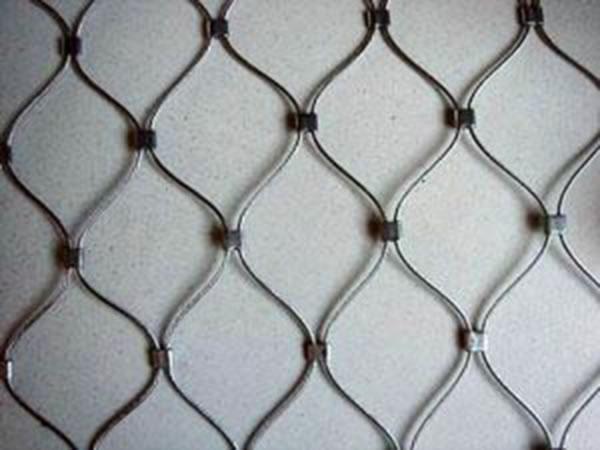

  • Ferrule Type(Stainless Steel Ferrule)

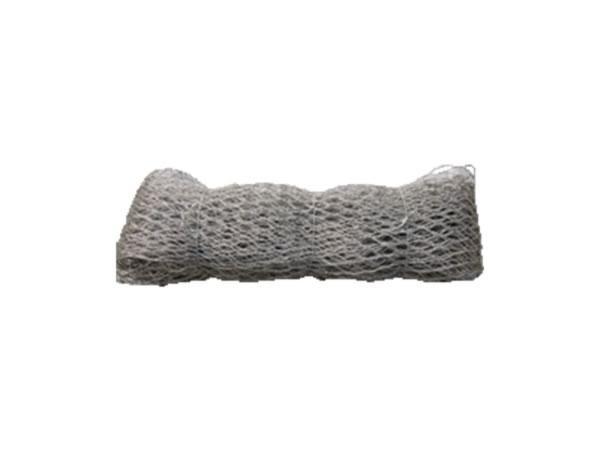

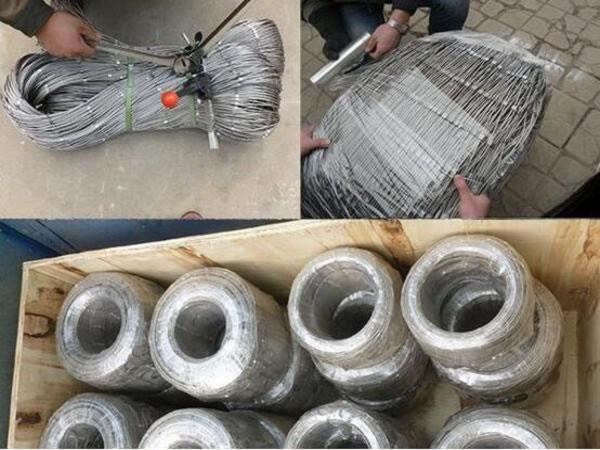

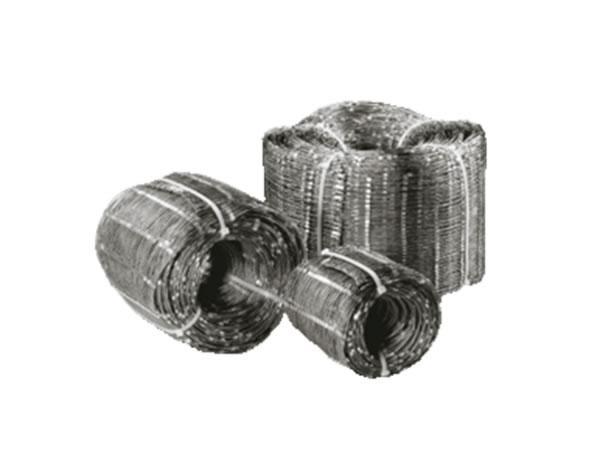

Normal packing way of Flexible stainless steel rope mesh netting

Our normal specification of Flexible stainless steel rope mesh netting is: cable dia.1mm-4mm and mesh size:20mm-160mm. Apart from the normal specifications, we can customize other specifications of mesh in different cable diameters and mesh sizes.

Inter-woven Type Ferrule Type

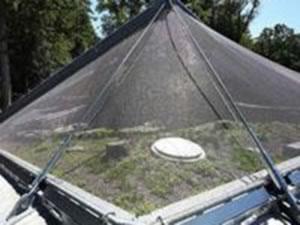

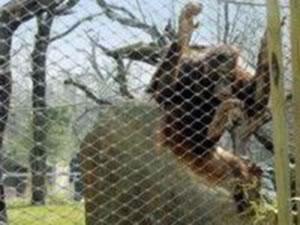

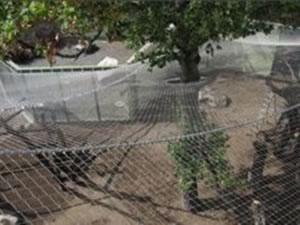

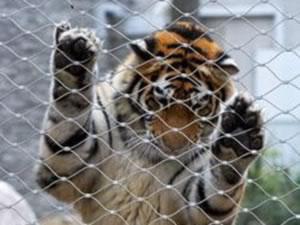

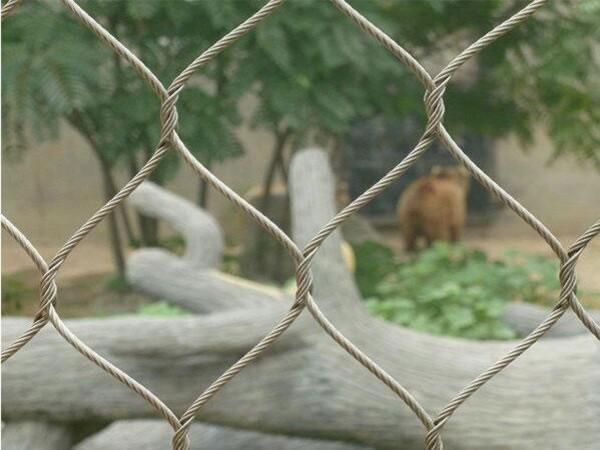

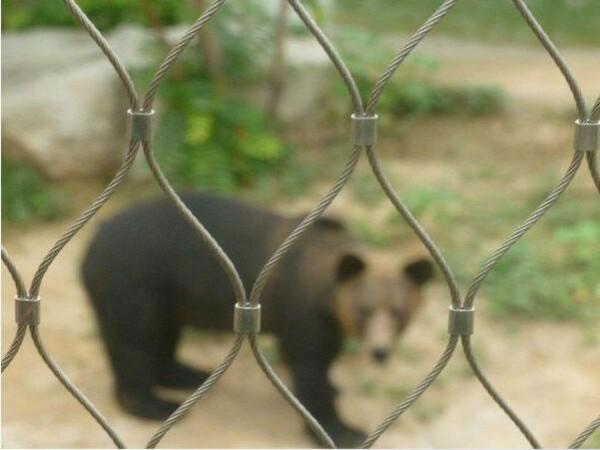

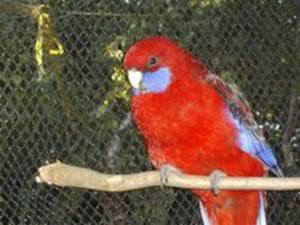

Flexible stainless steel cable mesh netting is used in animal cages, particularly those for birds. The strength and durability of the fencing does not affect the aesthetics of the enclosure as the cables are small enough to see through the apertures with ease.

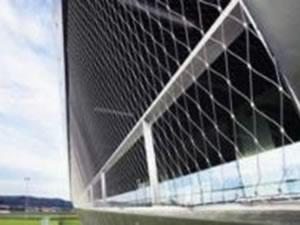

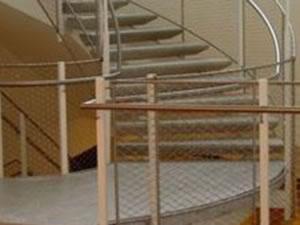

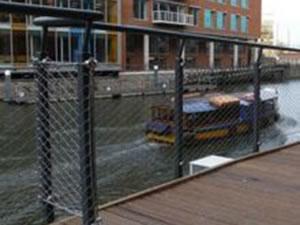

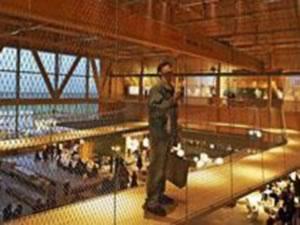

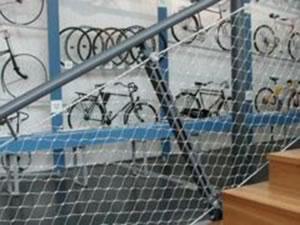

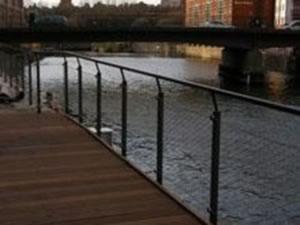

The stainless steel cable mesh netting produced with ferrule mesh is used for bridges and staircases as a safety feature. These meshes are often installed as an architectural element for decoration.

If you have any interests on our products, please feel free to contact us. We would also love to give you our practical advices and full supports on specification choices and installation schemes.

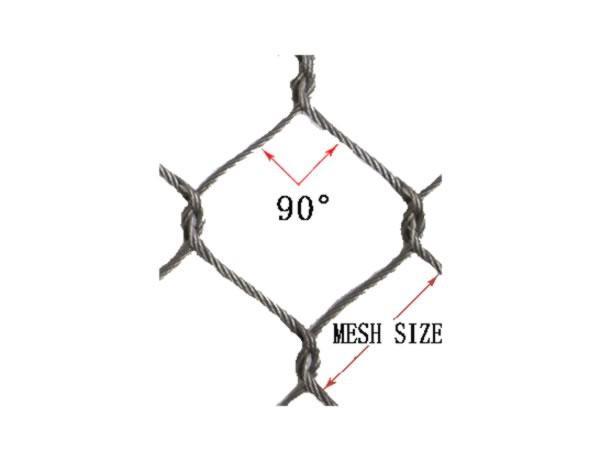

Flexible Stainless Steel Cable Mesh Netting(Inter-woven Type)
Item No.s Cable Diameter Mesh Opening Size Normal Break
inch mm inch mm lbs.
HL-3212W 1/8 3.2 4.75 x 4.75 120 x 120 1,600
HL-3210W 1/8 3.2 4 x 4 102 x 102 1,600
HL-3290W 1/8 3.2 3.55 x 3.55 90 x 90 1,600
HL-3276W 1/8 3.2 3 x 3 76 x 76 1,600
HL-3250W 1/8 3.2 2 x 2 51 x 51 1,600
HL-2410W 3/32 2.4 4 x 4 102 x 102 920
HL-2490W 3/32 2.4 3.55 x 3.55 90 x 90 920
HL-2476W 3/32 2.4 3 x 3 76 x 76 920
HL-2460W 3/32 2.4 2.4 x 2.4 60 x 60 920
HL-2450W 3/32 2.4 2 x 2 51 x 51 920
HL-2076W 5/64 2.0 3 x 3 76 x 76 676
HL-2060W 5/64 2.0 2.4 x 2.4 60 x 60 676
HL-2050W 5/64 2.0 2 x 2 51 x 51 676
HL-2038W 5/64 2.0 1-1/2 x 1-1/2 38 x 38 676
HL-1676W 1/16 1.6 3 x 3 76 x 76 480
HL-1650W 1/16 1.6 2 x 2 51 x 51 480
HL-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
HL-1630W 1/16 1.6 1.2 x 1.2 30 x 30 480
HL-1625W 1/16 1.6 1 x 1 25.4 x 25.4 480
HL-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
HL-1230W 3/64 1.2 1.2 x 1.2 30 x 30 270
HL-1225W 3/64 1.2 1 x 1 25.4 x 25.4 270
HL-1220W 3/64 1.2 4/5 X 4/5 20 x 20 270

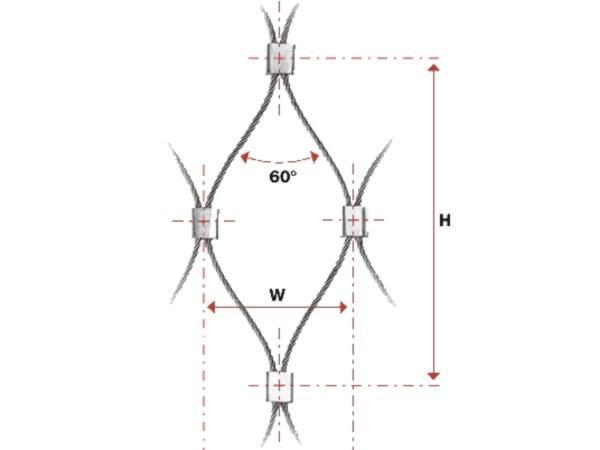

Flexible Stainless Steel Cable Mesh Netting(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size(W×H) Normal Break
inch mm inch mm lbs.
HL-3212F 1/8 3.2 4.75 x 8.23 120 x 207.8 1,600
HL-3210F 1/8 3.2 4 x 6.9 102 x 176.7 1,600
HL-3211F 1/8 3.2 3.55 x 6.15 90 x 156 1,600
HL-3212F 1/8 3.2 3 x5.2 76 x 131.6 1,600
HL-3213F 1/8 3.2 2 x3.46 51 x88.3 1,600
HL-3214F 3/32 2.4 4x6.9 102x176.7 920
HL-3215F 3/32 2.4 3.55x6.15 90x 156 920
HL-3216F 3/32 2.4 3 x 5.2 76x 131.6 920
HL-3217F 3/32 2.4 2.4x 4.16 60x 104 920
HL-3218F 3/32 2.4 2x3.46 51 x 88.3 920
HL-3219F 5/64 2.0 3 x 5.2 76 x 131.6 676
HL-3220F 5/64 2.0 2.4x 4.16 60 x 104 676
HL-3221F 5/64 2.0 2 x 3.46 51 x 88.3 676
HL-3222F 5/64 2.0 1-1/2 x 2.6 38 x 65.8 676
HL-3223F 1/16 1.6 1.2 x2.08 76 x 131.6 480
HL-3224F 1/16 1.6 2x 3.46 51 x 88.3 480
HL-3225F 1/16 1.6 1-1/2 x 2.6 38 x 65.8 480
HL-3226F 1/16 1.6 1.2x2.08 30 x 52 480
HL-3227F 1/16 1.6 1 x 1.73 25.4 x 44 480
HL-3228F 3/64 1.2 1-1/2x2.6 38 x 65.8 270
HL-3229F 3/64 1.2 1.2 x 2.08 30 x 52 270
HL-3230F 3/64 1.2 1 x 1.73 25.4 x 44 270
HL-3231F 3/64 1.2 4/5 x 1.39 20 x 34.6 270

FAQ

How to measure the mesh?
1. Front and Back: dispensable, just for looking beautiful.

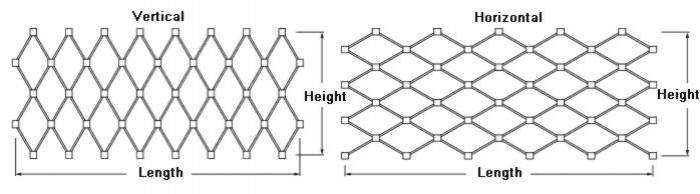

2. Size of mesh opening and the Direction of mesh panel
3. Size of each mesh panel
Standard size is 30ft x 60ft ( 9m x 18m )
Mesh can be produced as customers' required sizes, but each panel is better no larger than 9m x 18m, for convenient to production, shipping and installation.

What the mesh size and packing of Flexible Stainless Steel Cable Mesh Netting?
1. Size of each mesh panel:
Standard size is 30ft x 60ft ( 9m x 18m )
Mesh can be produced as customers' required sizes, but each panel is better not larger than 9m x 18m, for convenient to production, shipping and installation.

More question & information, please send us email for clarification.
