Material: | stainless steel SUS: 304, 304L, 316, 316L |
Wire rope diameter: | commonly used is 2.0mm(5/64"), 2.4mm(3/32") and 3.2mm (1/8") |
Structure: | adopting the structure of wire rope for the 7 x 7 rope(5/64", 3/32") and 7 x 19(1/8") |
Mesh size: | the mesh used 51 x 51 mm(2" x 2"), 76 x 76 mm(3" x 3") and 102 x 102mm(4" x 4") |
Sheet Size: | can be produced according to customer's requirements(Standard sheet size: 20m x 8m) |
Animal Enclosure Wire Mesh | ||||
ID | inch | mm | inch | mm |
HM-2050M | 5/64 | 2.0 | 2" x 2" | 51 x 51 |
HM-2450M | 3/32 | 2.4 | 2" x 2" | 51 x 51 |
HM-2476M | 3/32 | 2.4 | 3" x 3" | 76 x 76 |
HM-3250M | 1/8 | 3.2 | 2" x 2" | 51 x 51 |
HM-3276M | 1/8 | 3.2 | 3" x 3" | 76 x 76 |
HM-3210M | 1/8 | 3.2 | 4" x 4" | 102 x 102 |

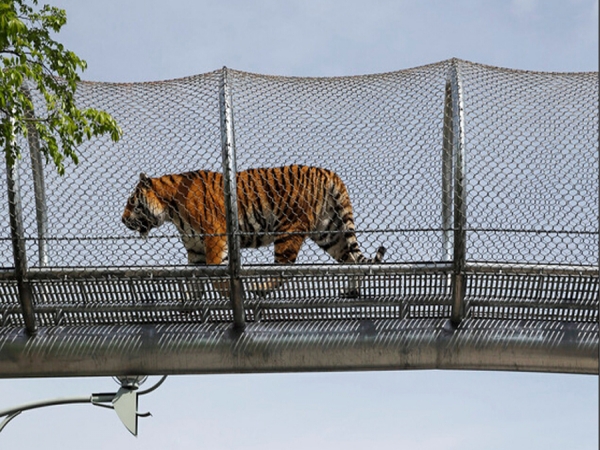

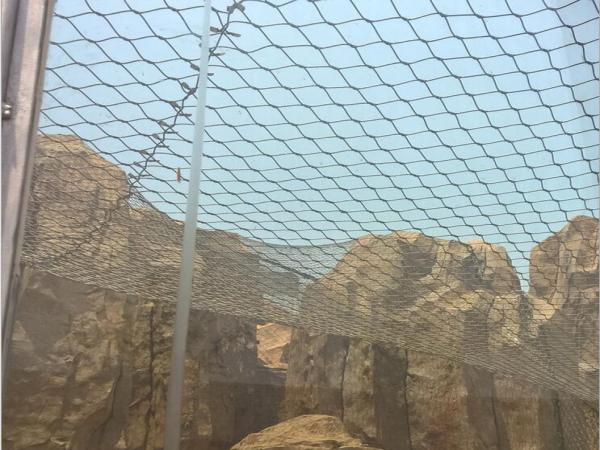

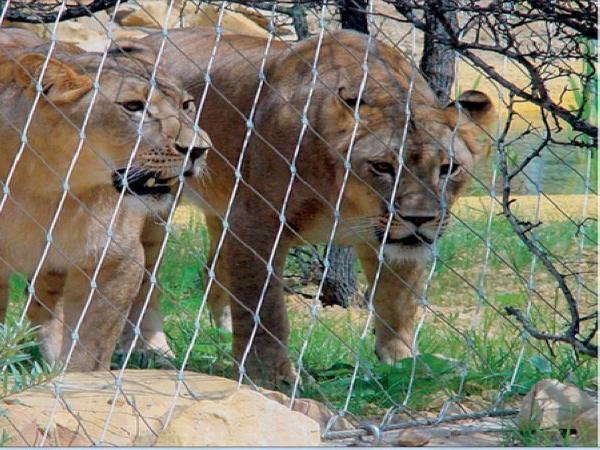

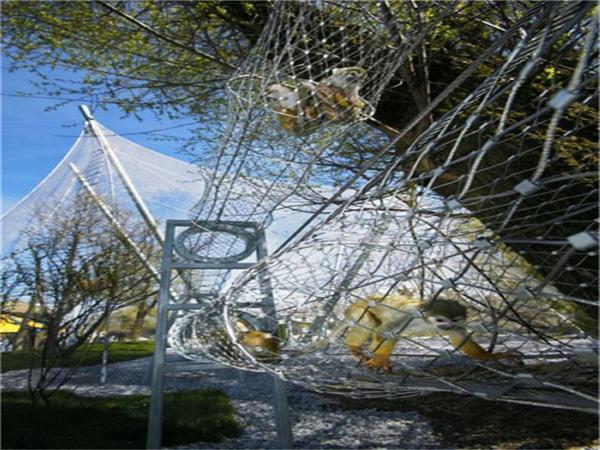

This animal enclosure netting is designed for the safety of animals and the people around them. The high strength yet lightweight mesh offers outstanding visibility without sacrificing the tensile strength of the structure once installed. The solid weave of the metal guarantees long lasting use.
How to measure the mesh?
1. Front and Back: dispensable, just for looking beautiful.
2. Size of mesh opening and the Direction of mesh panel
3. Size of each mesh panel
Standard size is 30ft x 60ft ( 9m x 18m )
Mesh size and packing?
1. Size of each mesh panel:
Standard size is 30ft x 60ft ( 9m x 18m )
Mesh can be produced according to the requested size, but each panel is better off no larger than 9m x 18m, for convenient production, shipping and installation.
