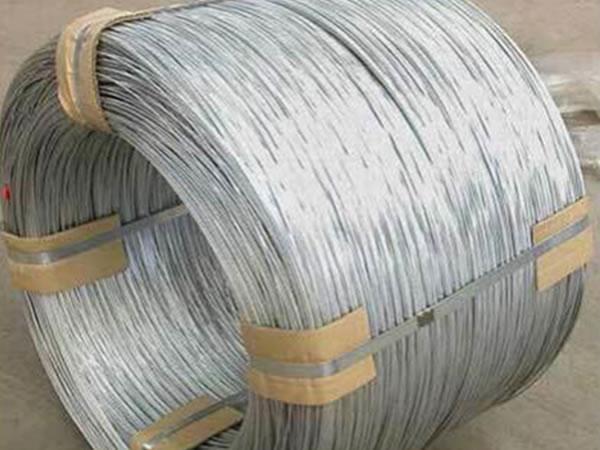

Hot-Dipped Galvanized Wire

Fully Galvanised Wire / Zinc Coated Wire / Hot Dipped Galvanized Wire

Inquiry Form

We have been producing hot dipped galvanized wire for nearly 30 years. Our hot-dipped galvanized wires are of the highest quality thanks to our expert engineers and technical personnel.

Production Process of Hot dipped Galvanized Wire
Steel rod coil -- Wire Drawing Molding -- Packing Derusting -- Wire Annealing -- Zinc Plating -- Cooling Process -- Wire Coiling.

Hot-dipped galvanized wire is widely used in construction, agriculture, handicrafts, wire mesh, gabion box, highway fencing, baling wire, armoring cable and many other daily uses.

Coating
Zinc Coated, GALFAN (Zn5Al).

Diameter
5.0mm-0.5mm (BWG6 - BWG25).

Minimum Zinc Coating
40-60g/m2, 60-200g/m2, 240-360g/m2.

Tensile Strength
35-55kgf/mm2, 350-550N/mm2.

Standard
BS or ASTM

Packing way

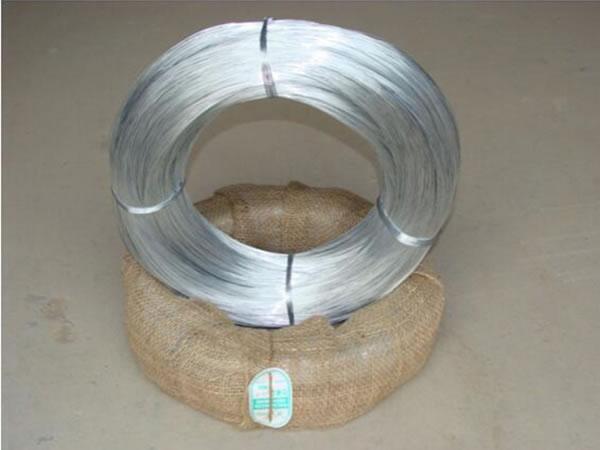

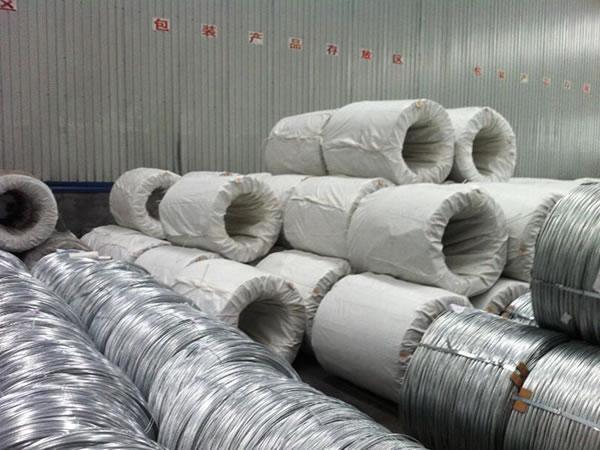

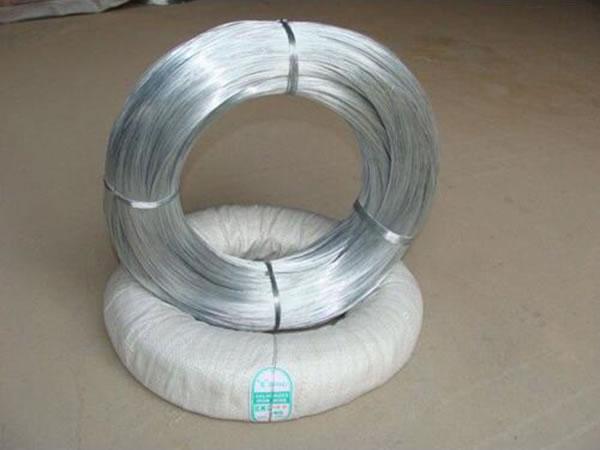

0.5-500kgs/roll, plastic inside & woven bag outside; Plastic inside & Hessian cloth outside; Spools; Carton;Pallets;Cases.

Optional Information
HS Code : 7217200000 Wire of Iron or Non-alloy Steel
Payment : L/C or T/T
Delivery : Tianjin Port
Origin : China
Minimum Order : 20MT / 1x20'GP

Specification of Hot-Dipped Galvanized Wire
Gauge SWG BWG BG AWG
# inch mm inch mm inch mm inch mm
0 0.324 8.23 0.34 8.639 0.3954 10.069 0.3249 8.252
1 0.3 7.62 0.03 7.62 0.3532 8.971 0.2893 7.348
2 0.276 7.01 0.284 7.214 0.3147 7.993 0.2576 6.544
3 0.252 6.401 0.259 6.579 0.2804 7.122 0.2294 5.827
4 0.232 5.893 0.283 6.045 0.25 6.35 0.2043 5.189
5 0.212 5.385 0.22 5.588 0.2225 5.652 0.1819 4.621
6 0.192 4.877 0.203 5.156 0.1981 5.032 0.162 4.115
7 0.176 4.47 0.18 4.572 0.1764 4.481 0.1443 3.665
8 0.16 4.046 0.165 4.191 0.157 3.988 0.1285 3.264
9 0.144 3.658 0.148 3.759 0.1398 3.551 0.1144 2.906
10 0.128 3.215 0.134 3.404 0.125 3.175 0.1019 2.588
11 0.116 2.946 0.12 3.048 0.1113 2.827 0.0907 2.305
12 0.104 2.642 0.109 2.769 0.0991 2.517 0.0808 2.053
13 0.092 2.337 0.095 2.413 0.0882 2.24 0.072 1.828
14 0.08 2.032 0.083 2.108 0.0785 1.994 0.0641 1.628
15 0.072 1.829 0.072 1.829 0.0699 1.775 0.0571 1.45
16 0.064 1.626 0.065 1.651 0.0625 1.588 0.0508 1.291
17 0.056 1.422 0.058 1.473 0.0556 1.412 0.0453 1.15
18 0.048 1.219 0.049 1.245 0.0495 1.257 0.0403 1.024
19 0.04 1.016 0.042 1.067 0.044 1.118 0.0359 0.912
20 0.036 0.914 0.035 0.839 0.0392 0.996 0.032 0.812
21 0.032 0.813 0.032 0.831 0.349 0.887 0.0285 0.723
22 0.028 0.711 0.028 0.711 0.03125 0.749 0.02535 0.644
23 0.024 0.61 0.025 0.635 0.02782 0.707 0.02256 0.573
24 0.022 0.559 0.022 0.559 0.02476 0.629 0.02011 0.511
25 0.02 0.508 0.02 0.508 0.02204 0.56 0.01791 0.455
26 0.018 0.457 0.018 0.457 0.01961 0.498 0.01594 0.405
27 0.0164 0.417 0.016 0.406 0.01745 0.443 0.0142 0.361
28 0.0148 0.376 0.014 0.356 0.01562 0.397 0.01264 0.321
29 0.0136 0.345 0.013 0.33 0.0139 0.353 0.01126 0.286
30 0.0124 0.315 0.012 0.305 0.0123 0.312 0.01003 0.255
31 0.0116 0.295 0.01 0.254 0.011 0.27 0.00893 0.227
32 0.0108 0.274 0.009 0.229 0.0098 0.249 0.00795 0.202
33 0.01 0.254 0.008 0.203 0.0087 0.221 0.00708 0.18
34 0.0092 0.234 0.007 0.178 0.0077 0.196 0.0063 0.16
35 0.0084 0.213 0.005 0.127 0.0069 0.175 0.00561 0.143
36 0.0076 0.193 0.004 0.102 0.0061 0.155 0.005 0.127

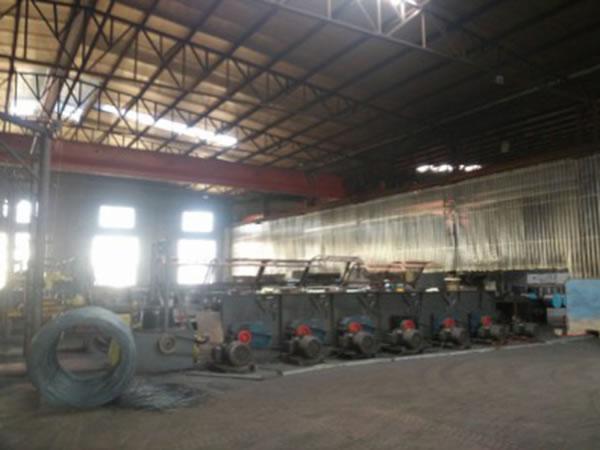

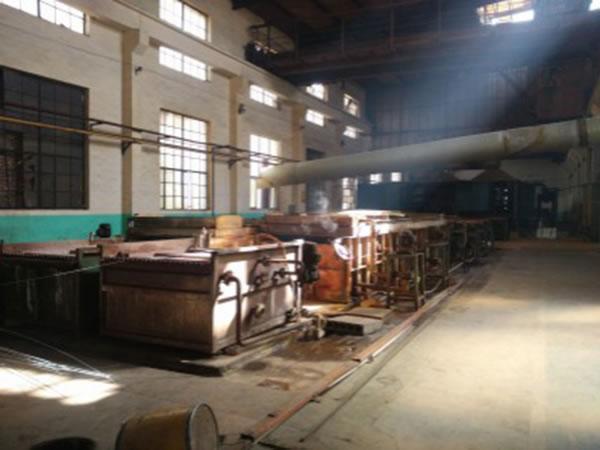

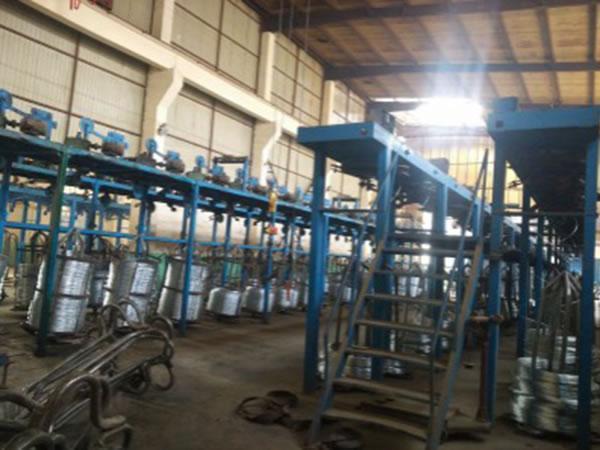

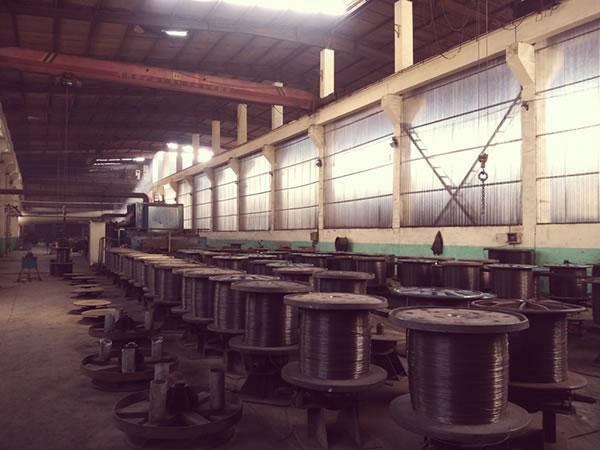

Factory Online Quality Control
