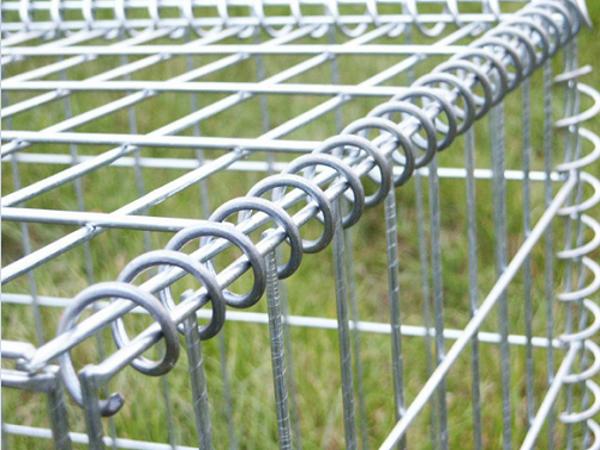

Our welded gabions are made using rigid, lightweight galvanized steel mesh instead of our standard mesh for added strength and stability. Welded gabion cages are more quickly erected and do not require tensioning. They maintain a more rigid shape that is resistant to bulging and sagging for stronger, more reliable structures.

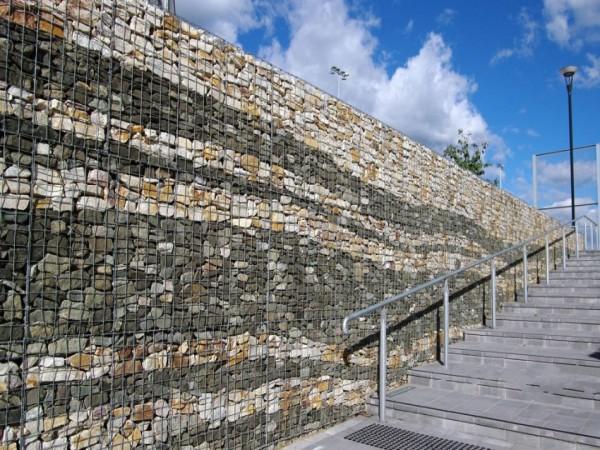

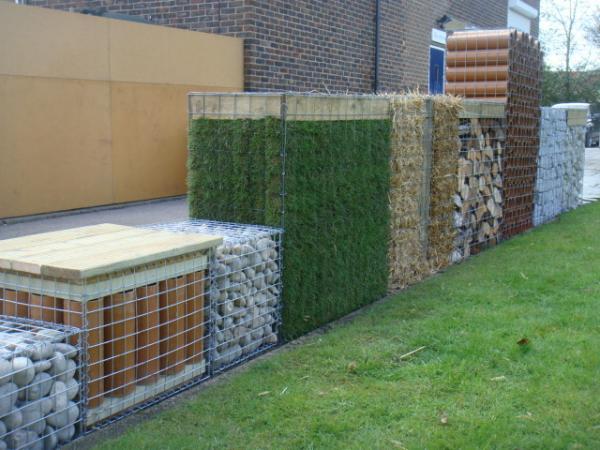

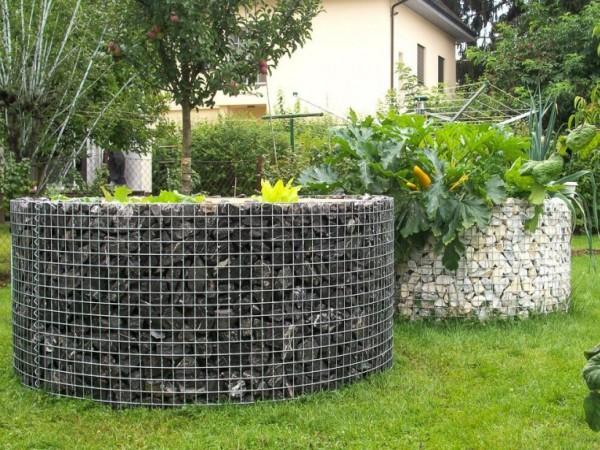

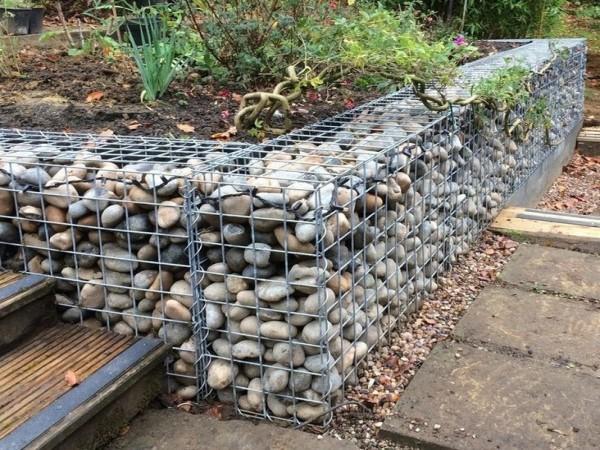

Welded gabions are for many applications including the stabilization of earth movement and erosion, river control, reservoirs, canal repair, landscaping and retaining walls.
Wire material of Welded mesh for gabion
Tensile strength: 380N/mm2 - 550N/mm2
Diameter: 2.5mm-6.0mm
Finishing: heavy duty galvanized,galvanized, or hot-dipped galvanized.
Coating weight: 245g-350g/m2 , 50-100g/m2.
Standards of Welded Gabion
1. ASTM90 Standard - Test Method for weight of coating on iron or steel articles with zinc or zinc alloy coating.
2. ASTM A641 standard - Specifications for zinc-coated carbon steel wire.
Specifications of Welded Gabion:
Wire material of welded mesh for Gabion
Tensile strength: 380N/mm2 - 550N/mm2
Standard wire diameter (mm)
Heavily galvanized or zinc coated wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00.
Polymer coated on heavily galvanized or zinc coated wire 2.5/2.8, 2.7/3.0, 3.0/3.3, 4.0/4.3, 5.0/5.3.
Finishing: heavy duty galvanized, galvanized, or hot-dipped galvanized.
Coating weight: 245g-350g/m2 , 50-100g/m2.
Standards of Welded Gabion
1. ASTM90 Standard - Test Method for weight of coating on iron or steel articles with zinc or zinc alloy coating.
2. ASTM A641 standard - Specifications for zinc-coated carbon steel wire.
Nominal box sizes (m) | No. of diaphragms (no.) | Capacity per box (m3) |
1.0 × 1.0 × 0.5 | Nil | 0.50 |
1.0 × 1.0 × 1.0 | Nil | 1.00 |
1.5 × 1.0 × 0.5 | Nil | 0.75 |
1.5 × 1.0 × 1.0 | Nil | 1.50 |
2.0 × 1.0 × 0.5 | 1 | 1.00 |
2.0 × 1.0 × 1.0 | 1 | 2.00 |
3.0 × 1.0 × 0.5 | 2 | 1.50 |
3.0 × 1.0 × 1.0 | 2 | 3.00 |
4.0 × 1.0 × 0.5 | 3 | 2.00 |
4.0 × 1.0 × 1.0 | 3 | 4.00 |
Note: Standard wire diameter (mm)
Heavily galvanized or zinc coated wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00.
Polymer coated on heavily galvanized or zinc coated wire 2.5/2.8, 2.7/3.0, 3.0/3.3, 4.0/4.3, 5.0/5.3.
Advantages of Welded Gabion:
Blends in with the natural surroundings.
Low cost alternative to concrete or masonry structures.
Very high resistance to natural forces due to better tensile strength.
Can withstand any unpredictable movement or settlement without loss of stability.
Simple and speedy installation, making it cost effective.
Quality finish and appearance is more aesthetically pleasing.
More rigid than woven mesh resulting in a more uniform finish when built.
Quicker and cheaper to install than woven Mesh gabions because no pre-stretching required.
Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.
Easy to vegetate.
