The ZhongDi hesco barrier, is a gabion box used for flood control, military fortification and many other applications. The box is made up of a collapsible wire mesh structure and a heavy duty fabric liner. The boxes can then be filled with dirt, rocks, etc. to be used as a temporary to semi-permanent structure that can help control water or act as a barrier against blasts or small-arms fire.
The hesco barriers can be used together to create a larger structure or individually as needed.
Product Informations of Hesco Barrier / Military Barrier / Hesco Bastion
Wire diameter: 4mm - 5mm (Tensile Strength 380-550N/mm2).
Mesh Sizes: 75mm x 75mm ( 3" x 3" ), 37.5 x 75mm, 50 x 50mm, 100 x 50mm, 100 x 100mm , etc.
Panel size: 2.21m x2.13m, 1.37m x1.06m, 0.61m x0.61m, 1.5m x 2.0m, 0.5m x 0.5m, it also can be customized according to customer's requirement.
Geotextile: in heavy duty non-woven polypropylene.
Finish: hot dipped galvanized, galfan coated after welded.
Packing: wrapped with shrink film or packed in a pallet.
Application of Hesco Barrier / Military Barrier / Hesco Bastion

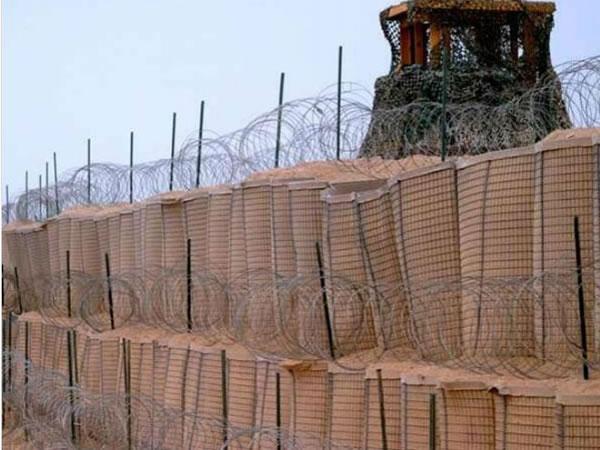

Perimeter security and defense walls
Explosive and contraband search areas
Personnel and material bunkers
Defensive firing positions
Border crossing checkpoints
Protection existing structures
Highway traffic management
Emergency flood deployment
Features of Hesco Barrier / Military Barrier / Hesco Bastion
Easy to handle and install
High tensile and anti-impact capability
Long life, regular use
Can be filled with sand, earth, cement, stone.

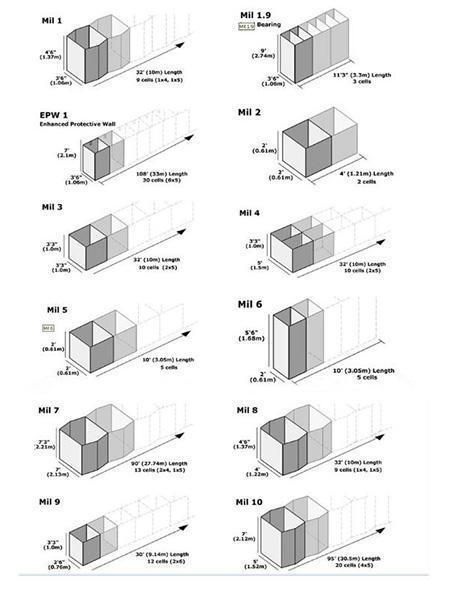

|Hesco Barrier / Military Barrier / Hesco Bastion|
|MIL1 5442 R||54''(1.37M)||42''(1.06M)||32'9''(10M)|
|MIL2 2424 R||24'' (0.61M)||24''(0.61M)||4'(1.22M)|
|MIL3 3939 R||39''(1.00M)||39''(1.00M)||32'.9''(10M)|
|MIL4 3960 R||39''(1.00M)||60''(1.52M)||32'.9''(10M)|
|MIL5 2424 R||24''(0.61M)||24''(0.61M)||10'(3.05M)|
|MIL6 6624 R||66''(1.68M)||24''(0.61M)||10'(3.05M)|
|MIL7 8784 R||87''(2.21M)||84''(2.13M)||91'(27.74M)|
|MIL8 5448 R||54''(1.37M)||48''(1.22M)||32'.9''(10M)|
|MIL9 3930 R||39''(1.00M)||30''(0.76M)||30''(9.14M)|
|MIL10 8760 R||87''(2.21M)||60''(1.52M)||100'(32.50M)|
|MIL11 4812 R||48''(1.22M)||12''(0.30M)||4'(1.22M)|
|MIL12 8442 R||84''(2.13M)||42''(1.06M)||108'(33M)|
Technical Information of Hesco Barrier / Military Barrier / Hesco Bastion
Wire Thickness 8 Gauge (4mm) Alu-Zinc coated steel
Mesh Size 3" (76.2mm) x 3" (76.2mm)
Coil Size 8 Gauge (4mm) Alu-Zinc coated hard steel and 10 Gauge (3mm) Alu-Zinc coated hard steel
Joining Pins 8 Gauge (4mm) Alu-Zinc coated hard steel
Geotextile 0.8" (2mm) heavy-duty non-woven polypropylene
Defensive Barrier, Military Barrier, Hesco Bastion, Barrier Bastion
