Application:

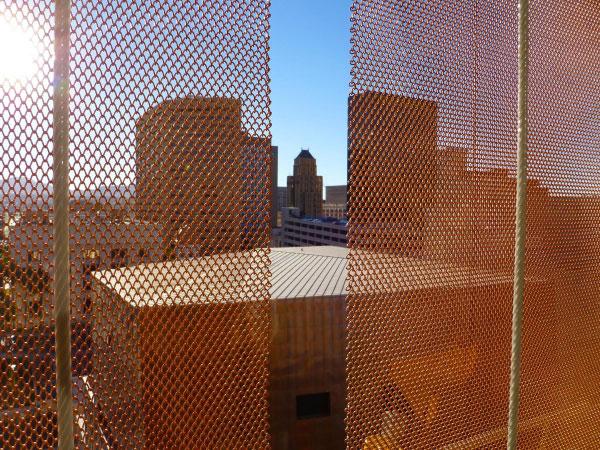

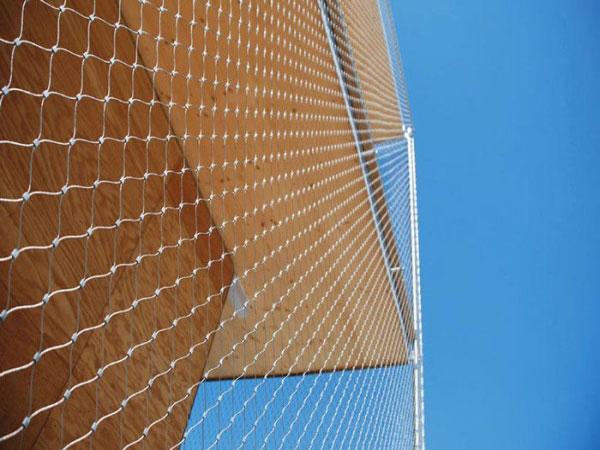

Building facade mesh cladding is usually used in building façade, partition, ceiling, balcony, corridor, stairs, and high-grade interior and exterior wall decoration of airport, station, hotel, advanced, museum, opera house, music hall, office building, exhibition hall and shopping mall. Especially, the stereoscopic decoration of ceiling can show elegant, translucent and simple visual effect.
Materials:
Building facade mesh cladding is woven by high-quality 304 or 316 stainless steel, brass, phosphor copper and carbon steel.

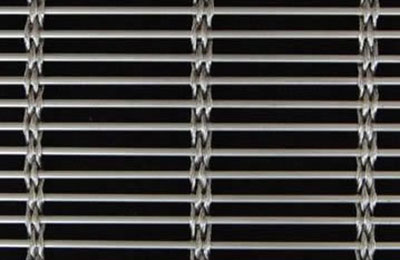

Cable Facade Mesh CMM-01
Material: stainless steel wire 304/316/316L.
Cable diameter: 2.0mm × 4.
Cable pitch: 60mm.
Rod diameter: 3.0mm.
Rod pitch: 6.0mm.

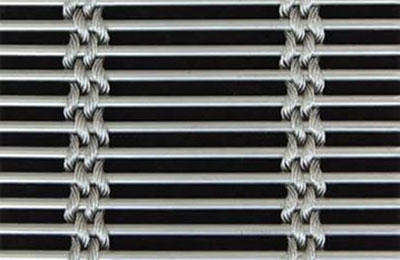

Cable Facade Mesh CMM-02
Material: stainless steel wire 304/316/316L.
Cable diameter: 1.0mm × 4.
Cable pitch: 36mm.
Rod diameter: 2.0mm.
Rod pitch: 5.0mm.

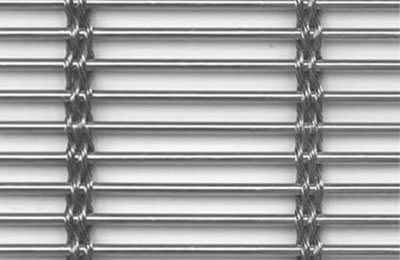

Cable Facade Mesh CMM-03
Material: stainless steel wire 304/316/316L.
Cable diameter: 2.0mm × 4.
Cable pitch: 50mm.
Rod diameter: 3.0mm.
Rod pitch: 6.0mm.

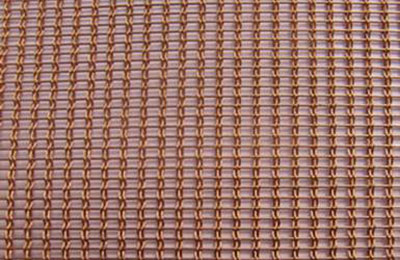

Cable Facade Mesh CMM-05
Material: copper.
Cable diameter: 2.0mm × 3.
Cable pitch: 80mm.
Rod diameter: 3.0mm.
Rod pitch: 15mm.

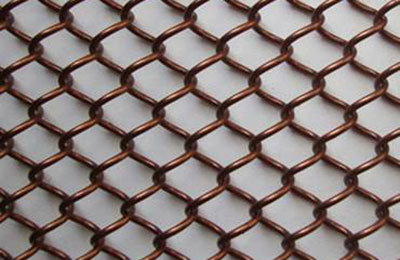

NO.S: ZD-1206O
Material: Magnesium Alloy Wire
Wire Dia.: 1.2mm
Opening: 6mm
Weight: appr.1.25kg/m2
Processing: lacquer coated( O color)

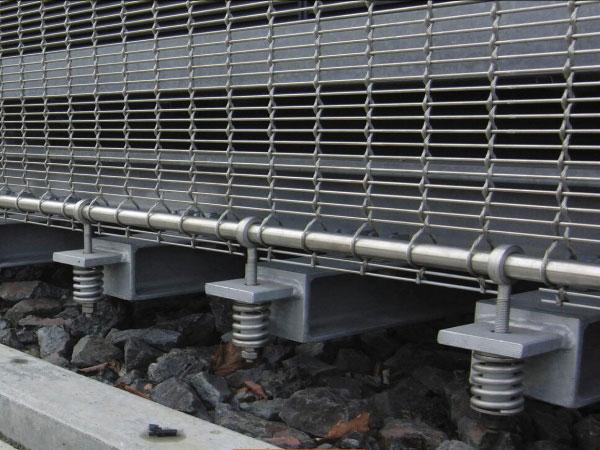

According to different design requirement of different exterior wall of building, we will consider using different solution. We will consider the materials, weaving structure and installation position of building facade mesh cladding in order to achieve ideal transparent and lighting effect.
Feature:

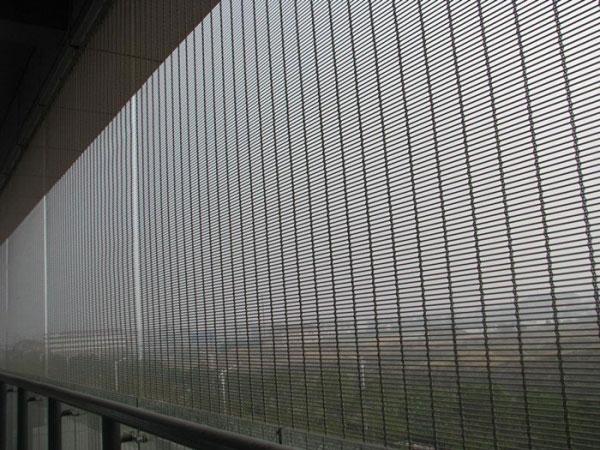

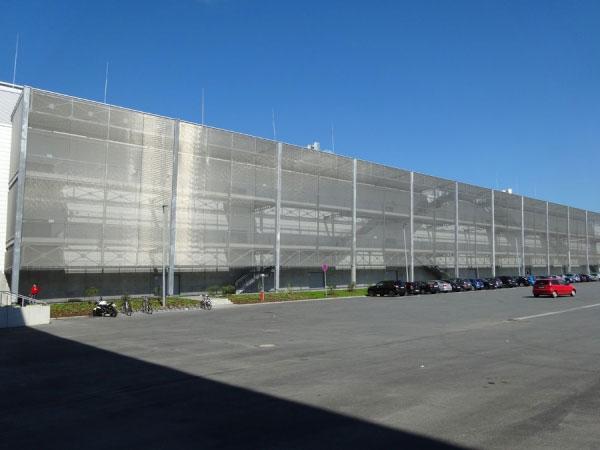

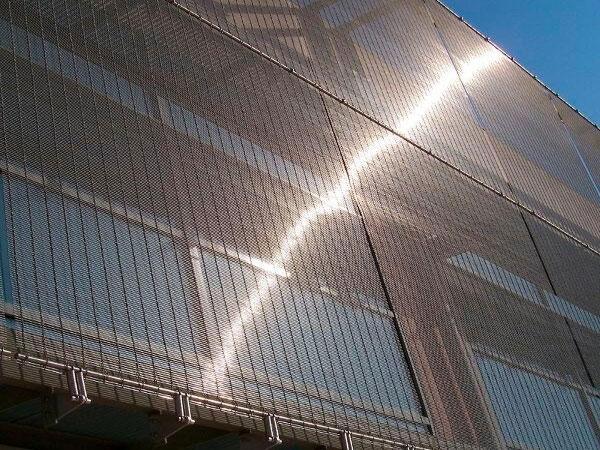

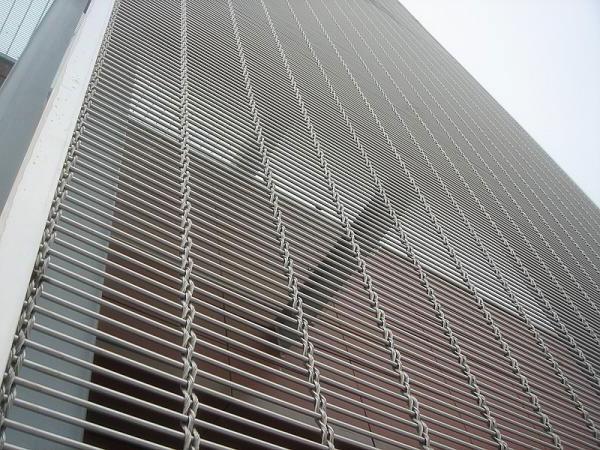

1. Building facade mesh cladding is installed on the surface of building to play the role of decoration, sun shading and energy saving.

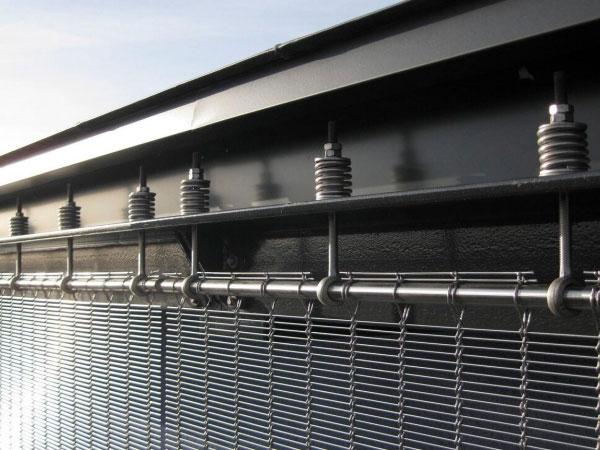

2. The wire of building facade mesh cladding is made of stainless steel. Make 2-4 root as a group and set a group at a certain distance. The distance and thickness of rope can be customized according to customer’s requirements. The weft is single stainless steel bar. Set a rope at a certain distance, and the distance depends on customer’s requirements. The length of building facade mesh cladding is not limited.
3. The surface of building facade mesh cladding has fabric texture. Visual and application functions also show different changes according to its various forms and structures. After special treatment of stainless steel, such as titanium coating, copper coating it presents a variety of colors, which enrich the decorative effect. So building facade mesh cladding can meet the requirements of various scenes.

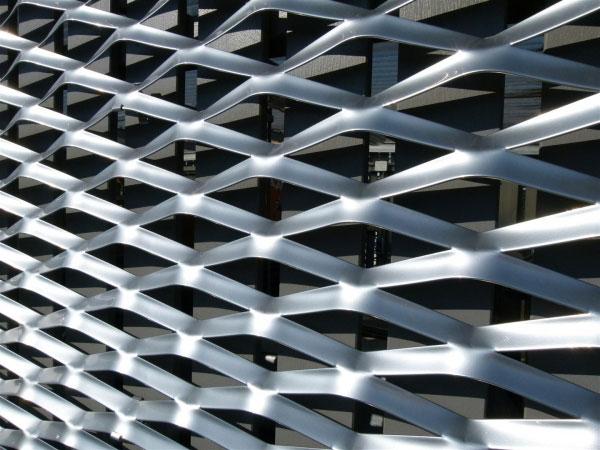

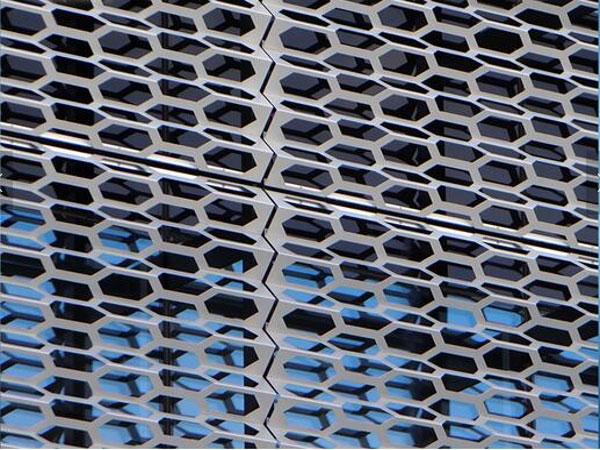

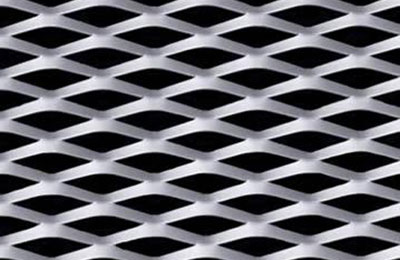

4. ZhongDi can also produce other kinds of decoration materials for building curtain wall, such as Chain Link Curtain,Expanded Metal Mesh, Punched Metal Mesh and so on.
