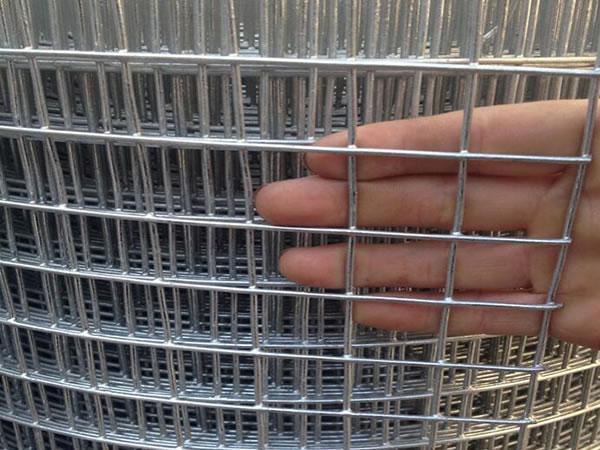

Our welded wire mesh rolls are made from high quality plain steel wire and stainless steel wire. The corrosion resistant wire is often used for poultry houses, draining racks, and animal pens. The highly versatile steel mesh is nearly limitless when it comes to applications.
Varieties Available According to Processing and Finish Treatment
Welded wire mesh, galvanized before weaving
Welded wire mesh, galvanized after weaving
Welded wire mesh, thermal electroplated

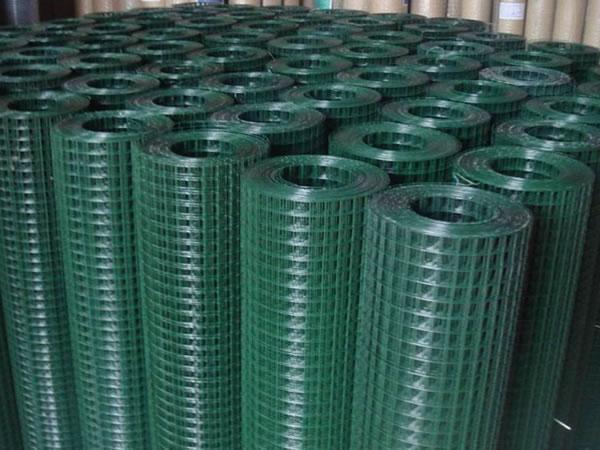

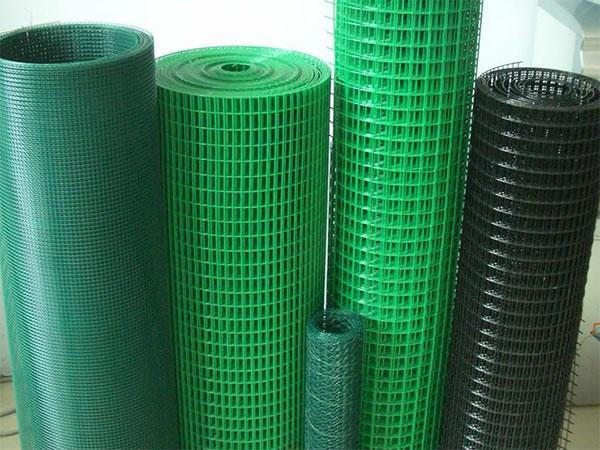

Welded wire mesh, PVC coated

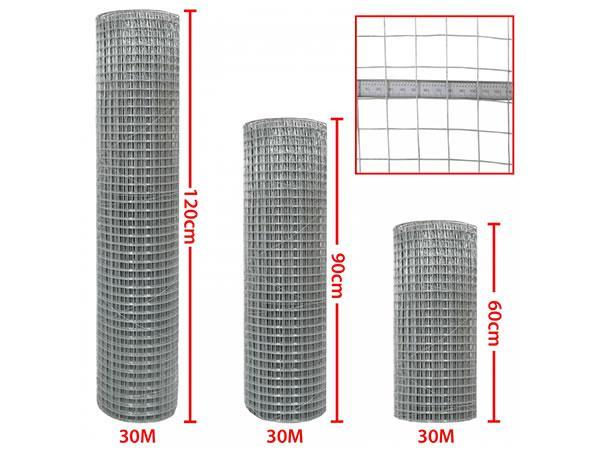

General roll width of Welded Mesh: 3', 4', 5', 6'
Welded Wire Mesh Length: 100'
General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
General wire gauge (BWG): 14# to 23#
The wire mesh roll not only features a long service life but also has an unobtrusive appearance that makes it suitable for any number of applications.Specification of welded wire mesh
|Mesh Size||Wire Gauge Diameter|
|In MM||In Inch||BWG No.||MM|
|9.5mm||3/8Inch||BWG23-19||0.64mm - 1.07mm|
|12.7mm||1/2Inch||BWG22-16||0.71mm - 1.65mm|
|19.1mm||3/4Inch||BWG21-16||0.81mm - 1.65mm|
|25.4x 12.7mm||1 x 1/2Inch||BWG21-16||0.81mm - 1.65mm|
|25.4mm||1Inch||BWG21-14||0.81mm - 2.11mm|
|38.1mm||1 1/2Inch||BWG19-14||1.07mm - 2.11mm|
|25.4 x 50.8mm||1 x 2Inch||BWG17-14||1.47mm - 2.11mm|
|50.8mm||2Inch||BWG16-12||1.65mm - 2.77mm|
