Material: SUS302, 304, 316, 316L
Property: Acid-resistant, alkali-resistant, high temperature resistant, strong tension and great abrasion performance. Dutch weave wire mesh is stable and fine with a high precision filtering performance.

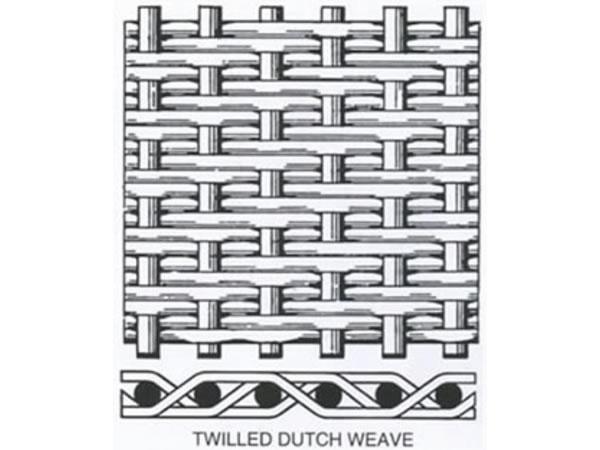

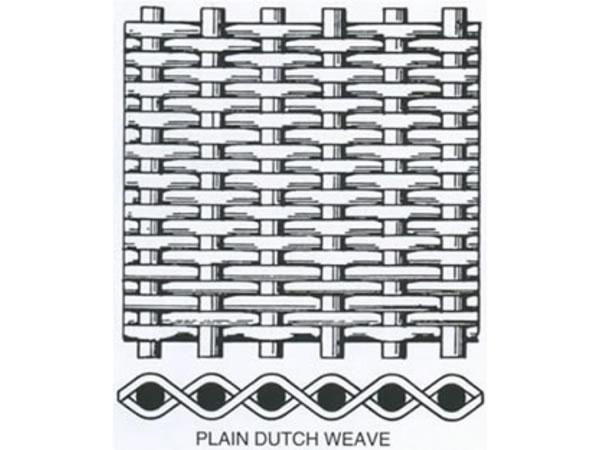

Weave Pattern: Plain Dutch weave stainless steel wire mesh (Plain Dutch Weave), twill Dutch weave stainless steel wire mesh (Twill Dutch Weave)

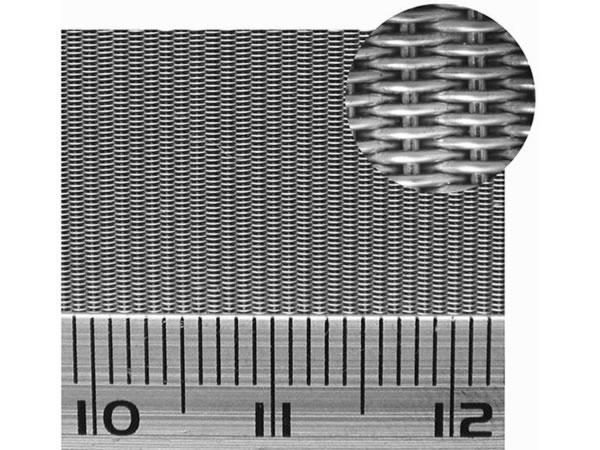

Introduction of Dutch Weave Stainless Steel Wire Mesh Cloth
As a filter screen that involves a special weaving process, Dutch weave stainless steel wire mesh has different warp and weft mesh numbers. Ordinary and common Dutch weave stainless steel wire mesh has more weft numbers than warp numbers and thicker warp steel wires than weft steel wires, giving it its name of Dutch weave mesh. Dutch weave stainless steel wire mesh has a high filter precision than that of ordinary stainless square-hole mesh has, and the stainless square hole mesh will never meet the same precision levels as the Dutch weave. Dutch weave stainless steel wire mesh is also called Dutch cloth, dense mesh and hole-less mesh. Its weft wires are based on the close arrangement of steel wires, generally used in precision screening and oil filtering. Dutch weave stainless steel wire mesh with a large mesh number can filter oil only in a pressure environment. It is classified into two categories: plain weave and twill weave.
Features of Dutch Weave Stainless Steel Wire Mesh Cloth
There is great contrast to the density of wire diameter in warp and weft direction, so the mesh thickness, filter rating and service life are all significantly improved when compared to square hole mesh. Its filtering precision cannot be achieved by square hole mesh.
Applications of Dutch Weave Stainless Steel Wire Mesh Cloth
Dutch weave stainless steel wire mesh is mainly used for gas, liquid filtration and other medium separation. It is widely used in precision pressure filters, fuel filters, vacuum filters, and can be applied to aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food, scientific research, conveying and many other industries.
|Mesh||Wire Diameter||Absolute Filter Rating μm||Nominal Filter Rating μm|
|8X85||0.014X0.0126||318 － 340||250 － 255|
|12X64||0.024X0.0165||270 － 285||200 － 205|
|14X88||0.020X0.013||225 － 245||150 － 155|
|20X150||0.0098X0.007||155 － 165||100 － 105|
|24X100||0.015X0.010||115 － 125||80 － 85|
|30X150||0.009X0.007||95 － 100||65 － 70|
|40X200||0.007X0.0055||65 － 70||55 － 60|
|50X250||0.0055X0.0045||55 － 60||40 － 45|
|80X400||0.0049X0.0028||43 － 48||35 － 40|
(Other Specs are also available, please contact us for more information.)
