This product has been discontinued and removed from our shelves.

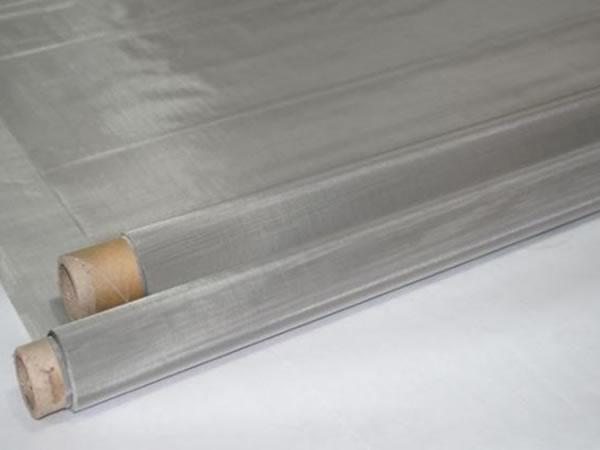

Name: Stainless steel wire mesh, stainless steel mesh screen, stainless steel filter wire mesh, metal wire mesh, stainless steel square wire mesh.
Material: SUS 201, 304, 304L, 316, 316L, 431, 321 etc.
Mesh Count, Wire Diameter, Width
Plain weave wire mesh can be woven up to 400 mesh.
Twill weave wire mesh can be woven from 30 to 635 mesh.
Wire diameter: 0.018-2.03mm
Common width: 0.914m, 1.0m, 1.22m, 1.5m, special requirements can be customized.
Characteristics of Plain/Twill Weave Stainless Steel Wire Mesh
1. Plain/Twill weave stainless steel wire mesh has an excellent acid resistance, alkali resistance, and corrosion resistant performance.
2. High strength, excellent tension, toughness and abrasion performance, long durability.
3. Resistance to high temperature oxidation: 304 stainless steel wire mesh resists temperatures as high as 800° C, while 310S stainless steel wire mesh can resist to 1150° C.
4. It is easy to carry out plastic processing under room temperature, achieving a diverse usage of the stainless steel wire mesh.
5. With a great surface finish, there is no need to do any surface treatment. The maintenance is convenient and simple.
Application of Plain/Twill Weave Stainless Steel Wire Mesh
Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environments. It serves as a mud filter screen in the oil industry, as packaging nets for chemical products, as a screen mesh in the chemical fiber industry, and as pickling mesh in the electroplating industry.
Mesh | Wire Diameter | Aperture/Opening | Opening Area % | ||
Inch | MM | Inch | MM | ||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 |
