Gabions

Gabion Basket / Gabion Box / Gabion Mesh

Inquiry Form

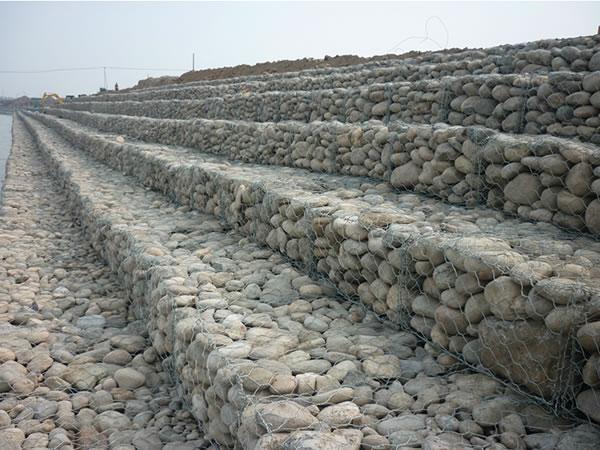

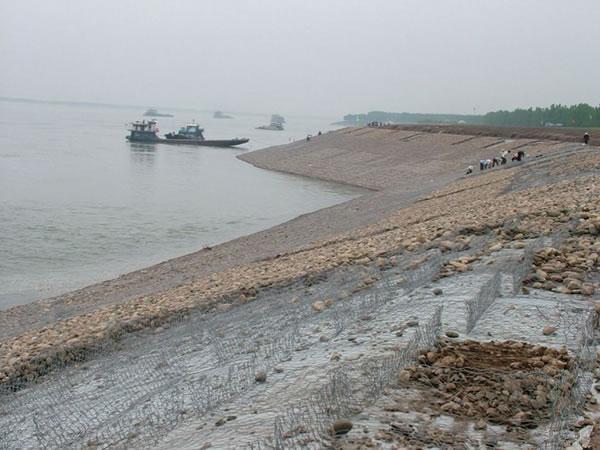

Gabions are rectangular containers fabricated from double twisted hexagonal wire mesh. The gabions are filled with stones and other materials that allow water to pass through them. They are perfect for retaining walls and other structures that require drainage assistance. Our gabions and mattresses are often found in riverbank protection, weirs and channel lining installations.

Gabions are divided into cells with diaphragms (usually spaced at 1 meter or 3' intervals), designed to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate easy assembly and installation.

International Standards
ASTM 975 standard
Style 1 galvanized wire as per ASTM A 641, class 3 soft temper
Style 2 style 1 and coated with PVC
Style 3 Zn-5Al-MM coated wire as per ASTM A 856

EN 10223-3 standard
Galvanized wire meets EN 10244-2 and old BS 443
Tensile strength between 420N/mm2 and 500N/mm2 according to EN 10218-2

Tolerances
The hexagonal, double-twisted wire mesh opening shall not exceed ±10% of the nominal dimension.

Factory Online Quality Control

Specification
For Gabions
Standard size: 2mx1mx0.5m, 4mx1mx0.5m, 1mx1mx1m, 2mx1mx1m, 4mx1mx1m, 2mx1.5mx1m, 6mx2mx0.5m ( LxBxH)
Mesh size: 60mmx80mm, 80mmx100mm, 100x120mm, 120mmx140mm etc
Mesh wire: 2.0mm, 2.7mm, 3.0mm etc
Selvedge wire: 2.4mm, 3.4mm 4.00mm etc
Lacing wire: 2.2mm
Finishing: Heavily galvanized, heavily galvanized and PVC coated, Galfan coated, Galfan coated and PVC coated

For Mattress
Standard size: 6mx2mx0.17m, 6mx2mx0.23m, 6mx2mx0.30m etc ( LxBxH)
Mesh size: 60mmx80mm, 80mmx100mm, 100mmx120mm.
Body wire: 2.0mm, 2.7mm,
Selvedge wire: 2.4mm, 3.4mm
Lacing wire: 2.2mm
Finishing: Heavily galvanized, heavily galvanized and PVC coated, Galfan coated, Galfan coated and PVC coated
Special request available
