Rockfall Protection System / Slope Consolidation System / Tecco Slope Stabilization System / Slope Flexible Stabilization System
TECCO Systems include several options, such as the TECCO System G65/3, TECCO System G65/4, TECCO System G80/4, Tecco System G45/2, etc.
The TECCO system is an important active protection type system installed as part of rockfall protection projects. This tecco system mainly consists of Tecco mesh, Steel anchors, Spike plates, Boundary rope, Sewing rope and Connection clips T2 / T3.
Components of the TECCO System

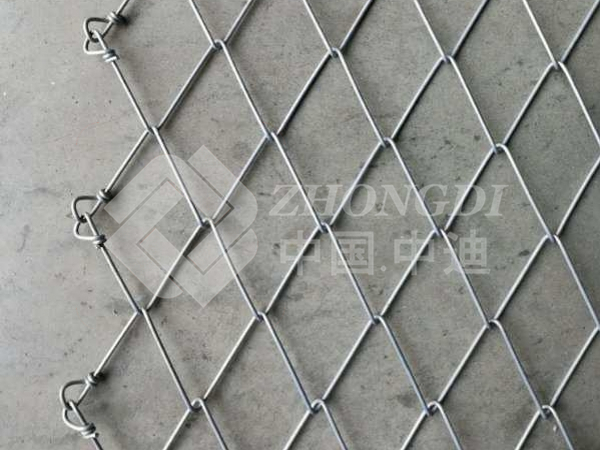

The main part of the tecco system, tecco mesh is made of high tensile steel wire 3.0mm /4.0mm /2.0mm and has excellent corrosion resistance performance. The 1770 N/m2 tensile strength supplies maximum protection for the slope and people below. The hole inscribed circle diameter can be 65mm(+/-5%)(83*143mm), 80mm(+/-5%)(102*177mm), 45mm(+/-5%)(62*95mm) etc. The roll width*length are available with 3.5m*10m/20m/30m, 2.9m*10m/20m/30m etc. Considering the special needs of protective engineering, we can accept the customization of special mesh holes, such as square hole 65 (+/- 5%) (65 * 65mm) 55 (+/- 5%) (55 * 55mm), etc.

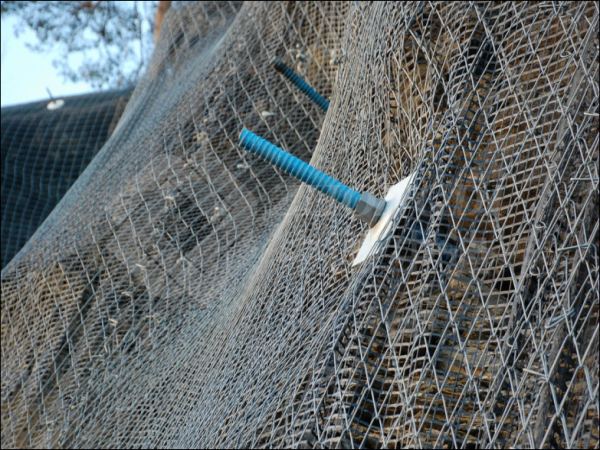

The steel anchor is made of a specially formed steel bar with 25mm / 28mm diameter, it is mainly used to fix the tecco mesh onto the rock or soil slopes. It can supply greater stability to the slope and tecco mesh.

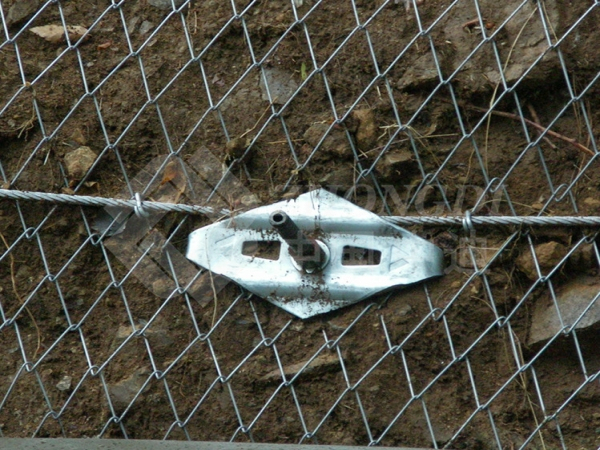

The claw type spike plate is commonly used with nails to fasten the tecco mesh onto the slope firmly. The claw design makes the spike plate a more stable and firm structure. Popular specifications are 350*180mm, 330*205mm.
The connection clips are used to connect the neighbor tecco mesh rolls firmly. It is an alternative to the sewing rope and the connection is common without overlap. Common types of Connection Clips are T2 / T3.
The sewing rope is used for connecting the nearby tecco meshes. And the connection commonly has overlaps. It can be used to replace the clips.
The boundary rope Passes through the tecco mesh and then be fixed onto the anchor for tecco mesh and system stability.
Applications of TECCO System

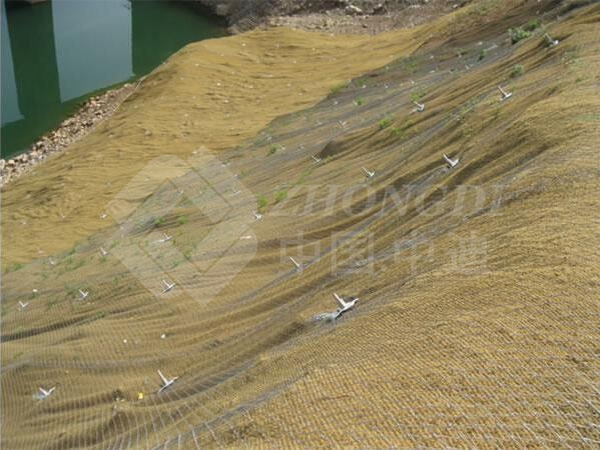

Tecco System is suitable for soil texture and a similar slope surface. It can not only stabilize the slope and replace the traditional mortar slag stones structure, but it is also environmentally friendly, which can ensure the plant growth.
Tecco System can be used in the strongly weathered rock slopes, bank strengthening.
Tecco System can be used to control water and soil loss and external-soil spray seeding.
Tecco System can be used for the protection of geological disasters such as avalanche protection and debris flow protection.
