Component

Various components act as a key aspect in slope stabilization systems as they effecteively maintain the integrity of the stabilitization system, ensuring an outstanding slope protective performance. Shown below are a variety of components, all of which are applicable to both active and passive slope protection systems, and can be sold separately. We will also provide free samples for customers to test, and sincerely welcome customers contacting us for more information.

The components of the Slope Stabilization System

    1. Anchors

      ZhongDi provides 3 types of anchors:
      The prestressed anchor is made of a high strength screw steel, giving it an outstanding rigid and solid structure for slope stabilization systems to prevent landslides and rocks from falling.

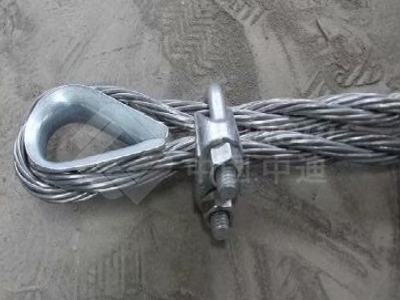

    1. Steel Wire Rope Anchor:
      available in 16, 14.5 or 18mm, this anchor is made of a hot-dip galvanized wire rope. They feature a reinforced plate on the end for easy movement and an excellent wearing resistance.

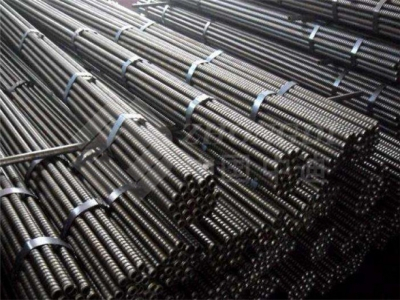

    1. Hollow Anchor:
      the anchor rod features a hollow bore for flushing or simultaneous drilling and grouting, and features a left hand/right hand thread for connection to standard drill tooling. It is manufactured using API standard thick wall steel tubing, and hot rolled to a standard ISO rope thread profile. The rolling process refines the crystalline steel structure, increases the yield strength and produces a durable drill rod suitable for a wide array of applications.

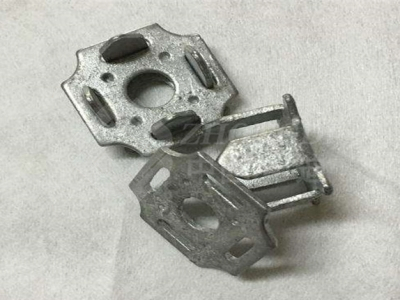

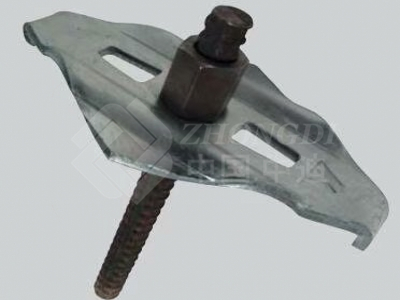

    1. Claw Type Spike Plates / Steel Plate P33

      The anchor plate is made of a hot-dipped galvanized plate that is both corrosion and rust resistant. The anchor plate features a claw-like structure that easily fastens to soil or stones with a firm grip. The anchor plate is most commonly used with an ancor to fasten slope stabilization meshes onto the slope.

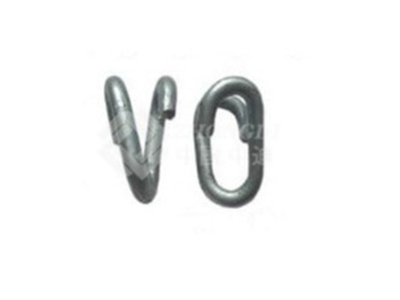

    1. Connection Clip T2

      The T2 connection clip is a T2 press claw for boundary rope attachment, and is made of a Zn/Al coated steel wire with a 6mm/4mm≥390Mpa.

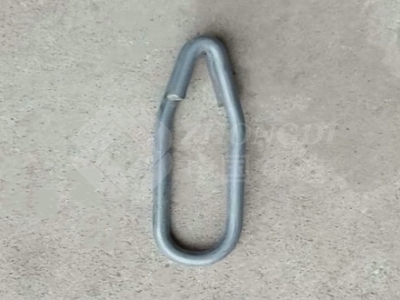

    1. Connection Clip T3

      The T3 connection clip is used for connection of the rolls and is made of a Zn/Al coated steel wire with a 4mm ≥1770Mpa.

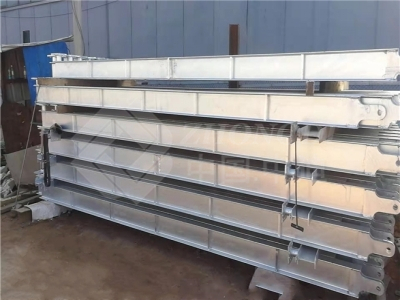

    1. Column

      The column is widely used in passive rockfall barrier systems to raise and support rockfall barriers. The column is attached to the base and is placed between rockfall barriers. The column then bears the rockfall barrier pressure and supplies additional stability and rigidity to the rockfall barrier system. The column is made of a hot-dip galvanized steel I/H plate and features an outstanding corrosion and rust resistance. It is chemically stable, making it ideal for use in harsh environments.

    1. Column Base

      The column base is made of hot-dipped galvanized plates that are both corrosion and rust resistant, as well as chemically stable. They are formed for use with columns and form a solid base and support for rockfall barrier systems in passive barrier systems.

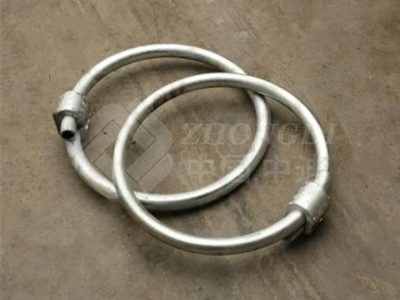

    1. Decompression Ring

      The decompression ring is made of hot-dipped steel with an excellent corrosion and rust resistance. It is attached to the supporting rope and metal columsn using the double supporting rope to bear the rockfall barrier pressure. Different rockfall barrier systems require different decompression ring quantities.

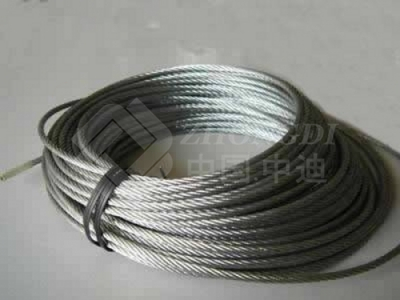

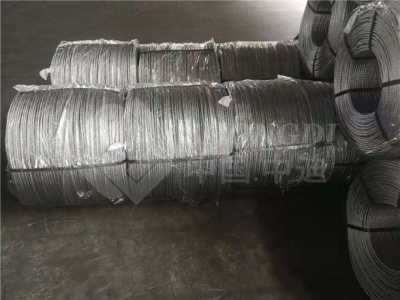

    1. Sewing Rope 8mm/12mm

      Slope stabilization meshes are supplied as pieces or rolls for an easy transportation. However, because mountains or other areas requiring a rockfall barrier are large and extensive, sewing rope for combining slope stanlization mesh into a full protective net is a must. The sewing rope also requires a high strength and large loading capacity to prevent stones from falling through joint areas on the net.

    1. Boundary Rope 16mm/20mm/22mm/14mm/12mm

      Supporting rope is an important component in a slope stabilization system. It is installed along the edge of the stabilization system to bear both the pressure and loading capacity of the entire system.

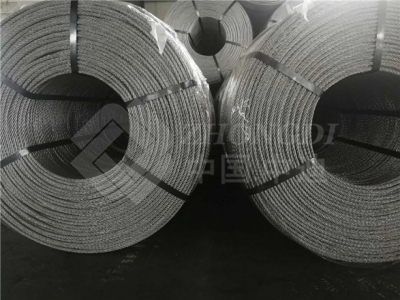

    1. Supporting Rope 12mm/14mm/16mm/20mm/22mm

      Supporting rope is an important component in the slope stabilization system and is installed along with wire nets to bear both the pressure and loading capacity of the stabilization system. Supporting rope is also used to support decompression rings and columns. Hot dip galbanized steel wire rope as the support rope offers a high tensile strength, and and outstanding corrosion and rust resistance. It is a durable and solid tool for slop stabilization systems.

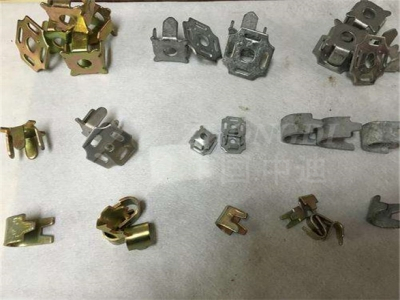

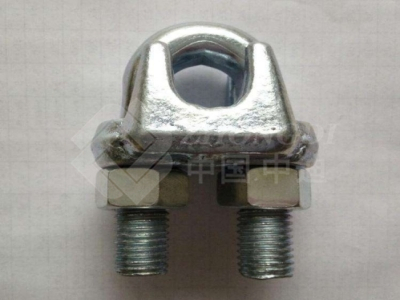

Clips for Mesh and Cables

Other Standard Accessories
We are also provide other standard accessories, simply contact us for more information. We also provide customization options.
