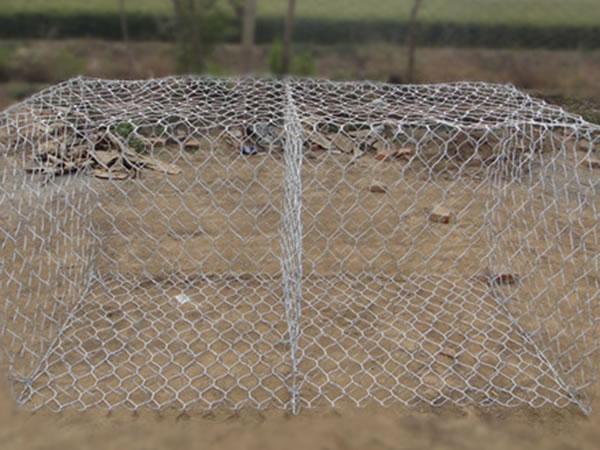

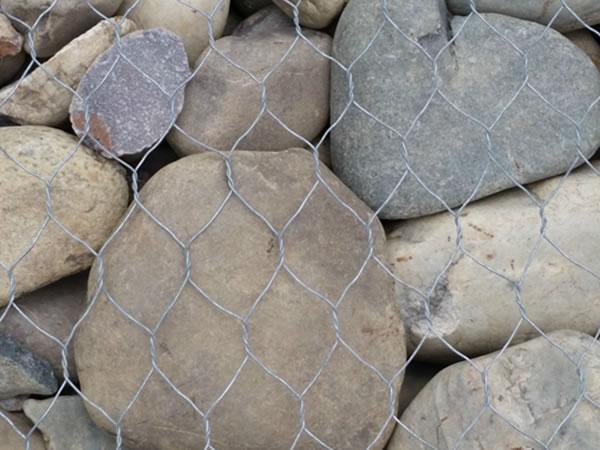

Gabion Baskets / Gabion Box are rectangular boxes formed with double twisted hexagonal steel mesh. The Gabion Baskets / Gabion Box can then be filled with stones to create a solid structure that is permeable to allow for proper drainage.

Gabion Baskets / Gabion Box are arranged in cells with diaphragms (usually spaced at 1 or 3 meter intervals). The diaphragms reinforce the structure in addition to the built in reinforcement along the edges of the mesh. The basket edges feature wire mesh that is of a thicker diameter than the rest of the structure.

Internal wires are used to reinforce the outer wires of the basket to prevent bulging during filling.

International standards Of Gabion Baskets / Gabion Box
ASTM 975 standard
Style 1 galvanzied wire as per ASTM A 641, class 3 soft temper

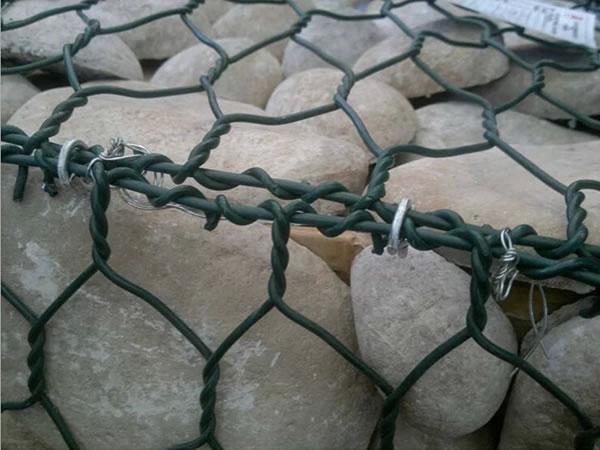

Style 2 style 1 and overcoated with PVC
Style 3 Zn-5Al-MM coated wire as per ASTM A 856

EN 10223-3 standard
Galvanized wire meets EN 10244-2 and old BS 443
Tensile strength between 380N/mm2 and 550N/mm2 according to BS 1052.

Tolerances
he hexagonal, double-twisted wire mesh opening shall not exceed ±10% of the nominal dimension.

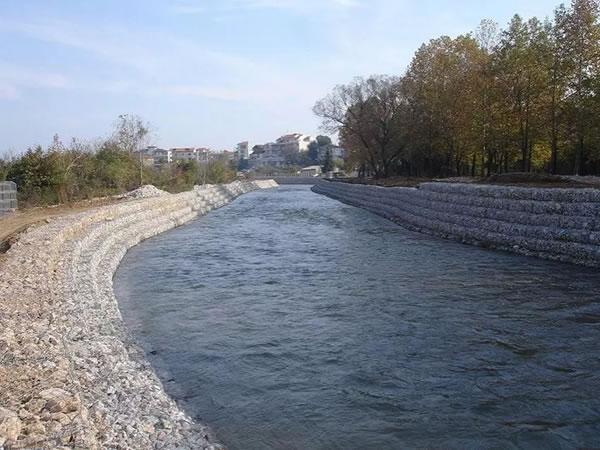

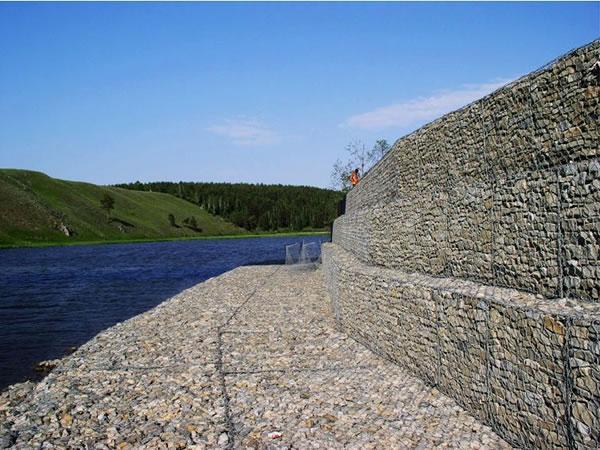

Gabion Baskets and mattresses are widely used for many applications such as retaining walls and riverbank maintenance structures.

Factory Online Quality Control
Table 1 Mesh Characteristics
Characteristics Gabion Baskets / Gabion Box
Metallic coated PVC coated
Mesh type opening 8 by 10 83 by 114 mm(3.25 by 4.5 in.) 8 by 10 83 by 114 mm(3.25 by 4.5 in.)
Mesh wire 2.4/2.7/3.0mm 2.4/2.7mm
Selvege wire 3.0/3.4/3.8mm 3.0/3.4mm
Lacing wire 2.2mm 2.2mm
Fasteners 3.0mm 3.0mm
Stiffeners( using lacing wire ) 2.2mm 2.2mm
Preformed 3.8mm 3.4mm
PVC coating thickness: Nominal N/A 0.5mm
Minimum N/A 0.38mm
Table 2 Typical Gabion Baskets / Gabion Box Sizes (M)
Length
M		 Width
M 		Height
M 		No.
Of Cells 		Volume M3
Meter Meter Meter Each Cu.meter
2.0 1.0 1.0 2.0 2.0
3.0 1.0 1.0 3.0 3.0
4.0 1.0 1.0 4.0 4.0
2.0 1.0 0.5 2.0 1.0
3.0 1.0 0.5 3.0 1.5
4.0 1.0 0.5 4.0 2.0
2.0 1.0 0.3 2.0 0.6
3.0 1.0 0.3 3.0 0.9
4.0 1.0 0.3 4.0 1.2
Table 3 Typical Gabion Baskets / Gabion Box Sizes (Feet)
Length Feet Width Feet Height Feet No.
Of Cells 		Volume Yd3
Feet Feet Feet Each Cu.Yard
6.0 3.0 3.0 2.0 2.0
9.0 3.0 3.0 3.0 3.0
12.0 3.0 3.0 4.0 4.0
6.0 3.0 1.5 2.0 1.0
9.0 3.0 1.5 3.0 1.5
9.0 3.0 1.5 3.0 1.5
12.0 3.0 1.3 4.0 2.0
6.0 3.0 1.0 2.0 0.67
12.0 3.0 1.0 4.0 1.33

Packing of Gabion Baskets / Gabion Box
For easy handling and shipping, the gabion baskets are shipped folded flat. A color stripe applied on the side of each folded gabion identifies the size.

Loading of Gabion Baskets / Gabion Box
Usually, gabion baskets will be loaded into 40ft containers to minimize cost.
