Landslide Barrier / Flexible Ring Net Barriers / Rocco High Tensile Steel Wire Ring Net / High Tensile Rocco Ring Net/ Rockslopes Safety Net / Debris Flow Barriers

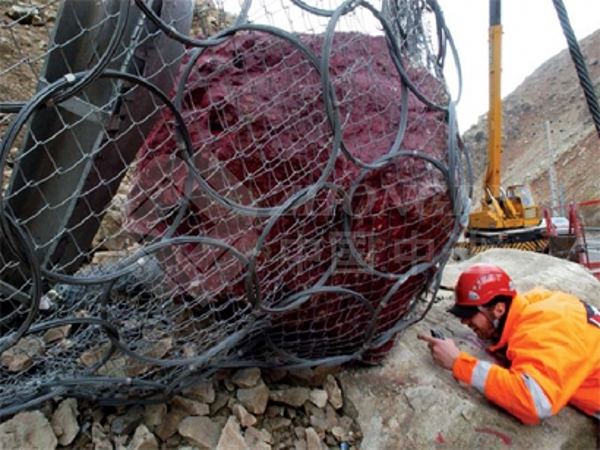

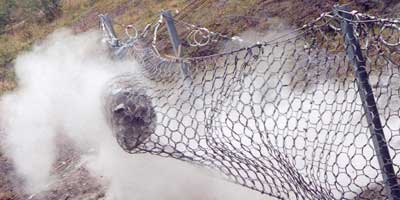

The rocco ring net, also known as flexible ring net barriers, and rocco high tensile steel wire ring net are linked together using rings with a high tensile strength 3mm steel wire with a strength no less than 1770N/mm². Anywhere between 5 and 19 spirals are bundled together into a ring measuring 30 or 35 in diameter to ensure an excellent buffering performance through its deformation. It features outstanding energy absorption properties, making it applicable for both active and passive protection systems. which between 5 and 19 spirals are bundled together into a ring measuring 30cm or 35cm in diameter. It has good buffering performance through its deformation, and it is with outstanding energy absorption properties and has a wide application for active and passive protection systems.

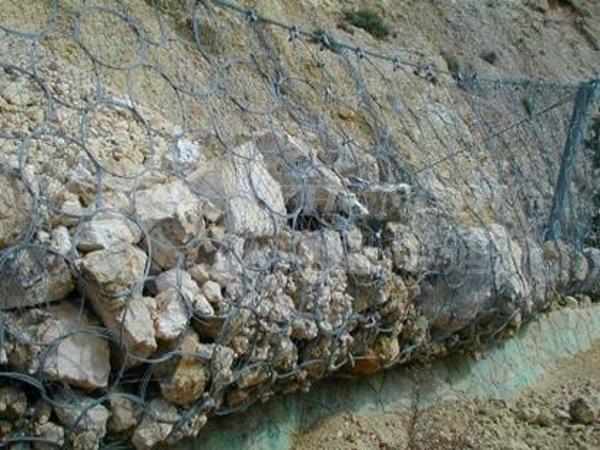

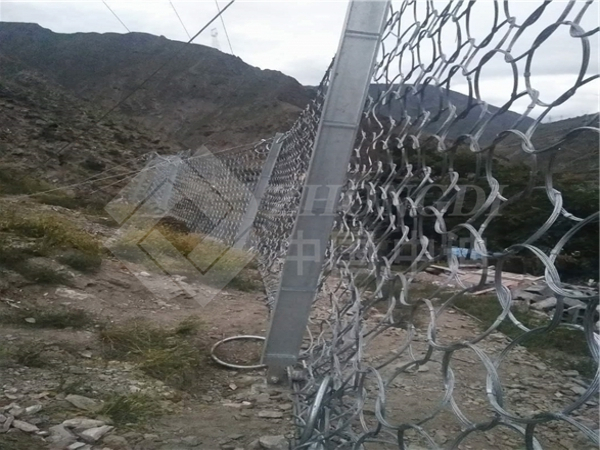

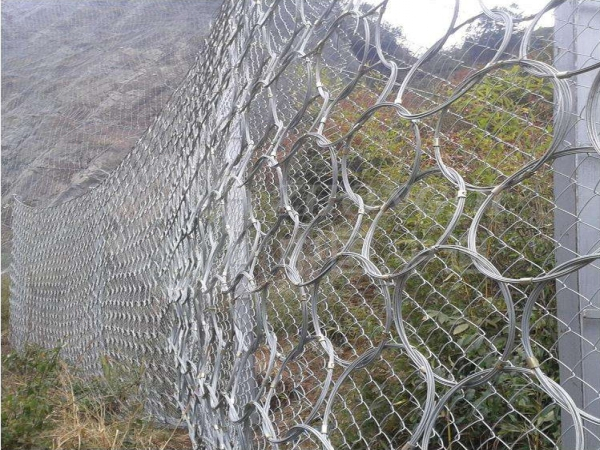

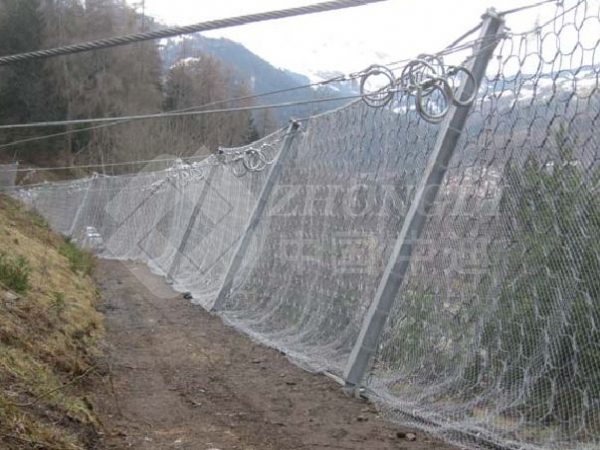

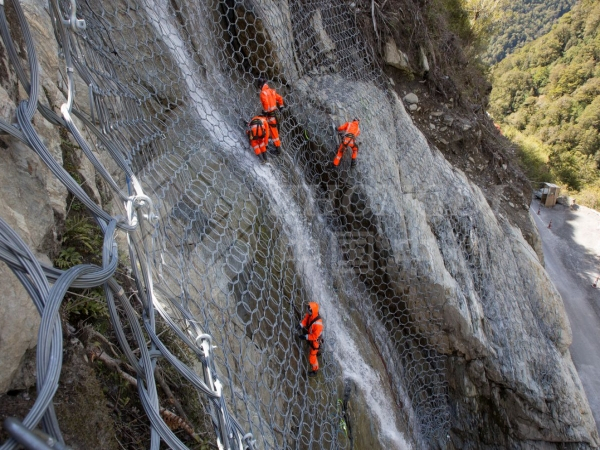

The rocco ring net system is composed of an SNS slope protection mesh, steel wire mesh, decompression rings, supporting rope, sewing rope, steel column, boundary rope, wire rope anchor and other installation components. The buffering, absorbing, and supporting performances are exerted to ensure an effective slope protection performance.

The rocco ring net system is composed of an SNS slope protection mesh, steel wire mesh, decompression rings, supporting rope, sewing rope, steel column, boundary rope, wire rope anchor and other installation components. The buffering, absorbing, and supporting performances are exerted to ensure an effective slope protection performance.

Rocco Ring Net Bundling Types

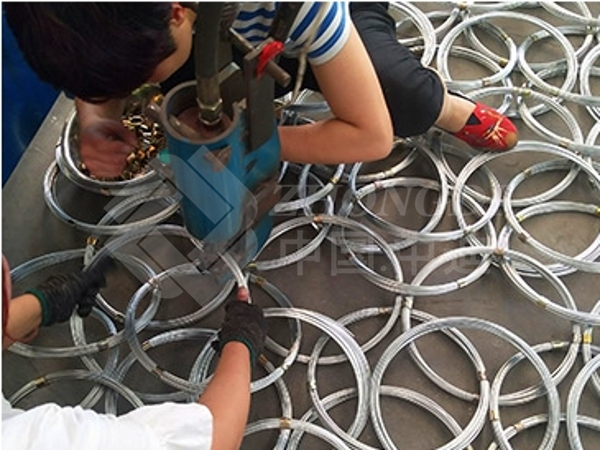

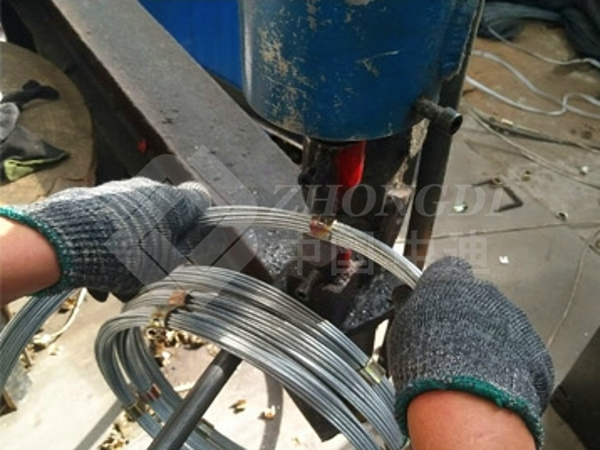

The rocco ring net features three types of bundling rings: ordinary pressed connection, direct winding, and spiral winding, each with an outstanding performance based on specific applications. The wire uniformly bears loads, features a simple appearance with no button joints, and has no broken ring failures during loading.

Rocco Ring Net System Types
Rocco Ring Net System VX Barrier：For narrower V-cuttings
In smaller mountain torrents, we anchor debris flow barriers to the channel flanks with no posts, instead using spiral rope anchors or self-drilling anchors with flexible anchor heads. The ring net is then hung from upper and lower support ropes outfitted with braking rings with the use of shackles. This structure is suitable for a width of up to 15 meters and an installation height of up to 6 meters.
Rocco Ring Net System UX Barrier: For wider, U-shaped Channels
The debris flows barrier for large mountain torrents is preferably supported by two posts in the river bed as well as with spiral rope anchors or flexible anchor heads. This structure is suitable for widths of about 25 meters and an installation height of up to 6 meters.

Note: VX / UX 060-180 ... = Resistance to debris pressure and impulse during stopping, filling and overtopping process
VX / UX ... H4 / H6 = Maximum installation height in meters
