Wire Mesh For EMI RFI Shielding

This product has been discontinued and removed from our shelves.

Inquiry Form

ZhongDi manufactures EMI & RFI shielding wire mesh for dielectric metal mesh through the light reflected radio waves.

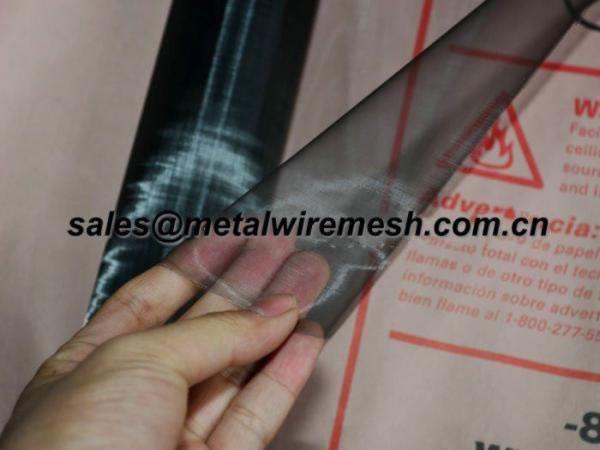

EMI & RFI shielding wire mesh (also called EMI high transmission micro mesh) is typically used when heat and corrosion resistance is required, and frequently used when it is necessary to shield electromagnetic interference (EMI) and radio frequency interference (RFI). It is for EMI shielded windows or displays.

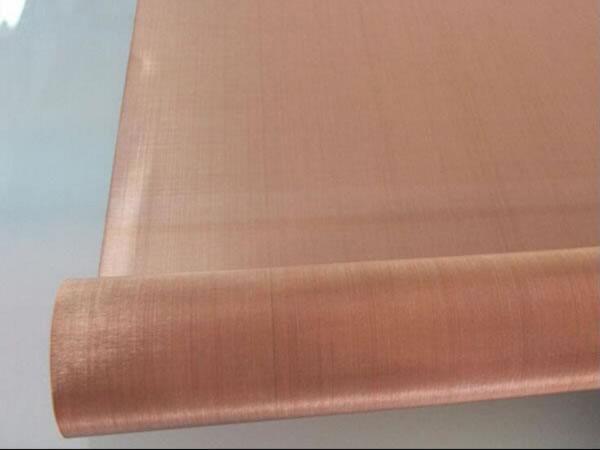

EMI & RFI & ESD shielding wire mesh includes copper wire mesh, phosphor bronze wire mesh, and ultra-thin stainless steel wire mesh.

Main Benefits of Wire Mesh for RFI & EMI & ESD Shielding
1. Can be easily sculpted or molded.
2. Can assist in avoiding the 'Corona Effect' (air around the component becoming conductive).
3. Excellent fire and corrosion resistance.
4. Available in numerous metals, such as copper, stainless steel, monel and aluminum.
5. An almost infinite number of specifications and open areas are possible.

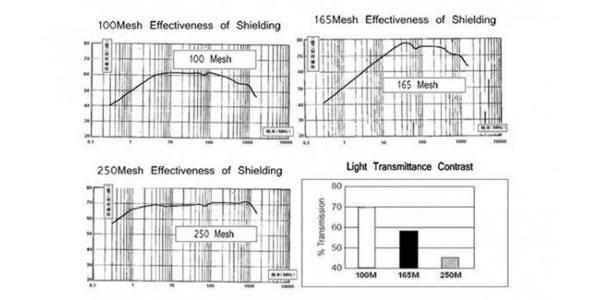

Wire Mesh for EMI & RFI & ESD Shielding 30MHZ~1GHZ Frequency
Mesh Shielding Effectiveness Light Transmittance Application
100 52db 70% Windows of standard shield room and other equipments
160 60db 50% Vehicle windows, shelter windows, window of high standard shield room
250 70db 45% CRT/lCD displays, instrument windows
The Most Popular Specifications of EMI & RFI & ESD Shielding Wire Mesh
Material Mesh/Inch Diameter (mm) Open area (%)
SS 304,316,316L 50 0.030 88.4
SS 304,316,316L 70 0.076 62.6
Copper 70 0.076 62.6
SS 316,316L 80 0.028 83.2
SS 304,316,316L 80 0.050 71.0
316,316L SS 100 0.050 64.5
316,316L SS 100 0.028 79.2
Copper 100 0.055 60.8
SS 304,316,316L 100 0.055 60.8
Copper 145 0.055 46.4
SS 316,316L 150 0.028 70.7
SS 316,316L 180 0.028 65.5
SS 316,316L 200 0.028 62.0
SS 316,316L 230 0.028 55.8
SS 304,316,316L 230 0.035 46.0
SS 316,316L 250 0.028 54.0
SS 304,316,316L 250 0.035 43.5
Phosphor Bronze 250 0.035 43.5
The Most Common Specifications of Stainless Steel EMI & RFI & ESD Shielding Wire Mesh
Number of meshes
per inch
(n) 		Wire
Diameter
mm 		Aperture
W
mm 		Open Area
Ao
%
16 0.040 1.547 95
30 0.050 0.796 89
50 0.025 0.483 90
50 0.030 0.478 89
80 0.025 0.292 85
100 0.030 0.224 78
100 0.050 0.196 62
165 0.050 0.104 46
165 0.045 0.109 50
180 0.045 0.096 46
200 0.040 0.087 47
230 0.035 0.075 47
230 0.028 0.082 56
250 0.040 0.062 37
250 0.035 0.067 43
250 0.030 0.072 50
250 0.028 0.059 52
270 0.035 0.059 39
280 0.030 0.061 45
300 0.030 0.055 42
325 0.030 0.048 38
325 0.028 0.050 41
325 0.023 0.055 50
400 0.023 0.046 41
