High Tensile Steel Wire Mesh / High Strength Steel Wire Mesh / High Tensile Strength Mesh / Tecco Mesh / High Tensile Steel Netting

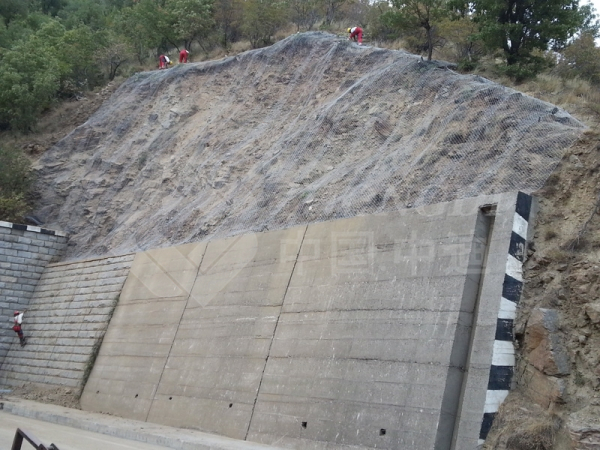

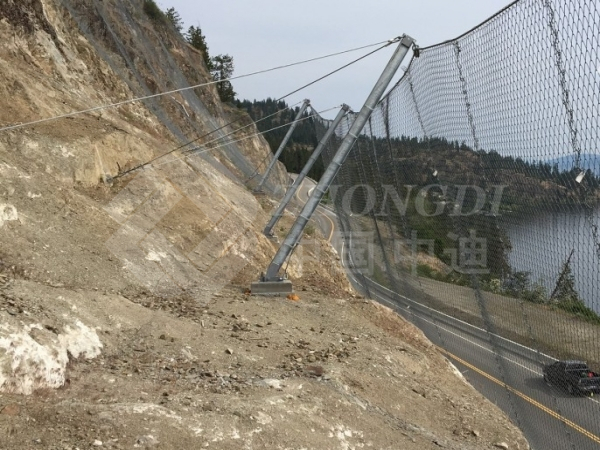

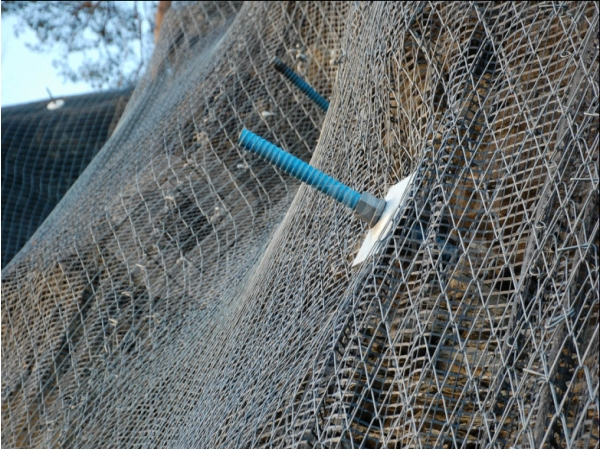

High tensile strength steel wire mesh is a specially engineered mesh product with high tensile strength and corrosion resistance. It can withstand large impacts caused by falling rocks or landslides, while providing a long service life. It is adaptable to different heights and irregular slope structures thanks to its outstanding flexibility. The openness of the mesh will not affect the growth of vegetation. High tensile strength steel wire mesh has been widely used for slope conservation, landslide protection, rockfall protection, valance and debris flow protection, and other protections from natural disasters.
It is made of high-strength and corrosion-resistant steel wire with a tensile strength of 1770Mpa, 1370Mpa, or 900Mpa, which is woven using precision machinery. Its hole type is often Diamond or square in structure. Common specifications include Tecco G65 / 3, Tecco G80 / 4, Tecco G45 / 2, etc. The mesh specifications feature circle diameters of 65mm, 80mm, 45mm, 40mm, 60mm, 55mm, etc. Our equipment has been continuously improved and can now handle the production High tensile strength steel wire mesh with different hole types and different mesh sizes. All products have undergone strict testing and can provide free samples for you to test as desired.
Common materials and specifications of High Tensile Strength Steel Wire Mesh
1.) Zinc 95% Aluminum 5%-10% Alloy Steel Wire (Zinc Coating ≥150gr/m2), Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )
2.) Stainless Steel 304 Wire, Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )
3.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥1370Mpa, Mesh Ending Knotted (≥1.5 laps )
4.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥900Mpa, Mesh Ending Knotted ( ≥1.5 laps )
Other wire materials are also available.
Wire Diameter: 3.00mm, 4.0mm, 2.0mm, 2.2mm，4.4mm etc
Mesh Sizes: 83*143mm, 102*177mm, 62*95mm, 65*65mm, 60*60mm, 55*55mm, 50*50mm etc

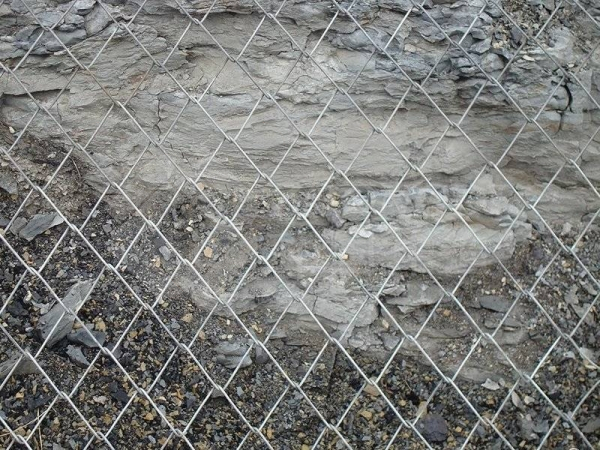

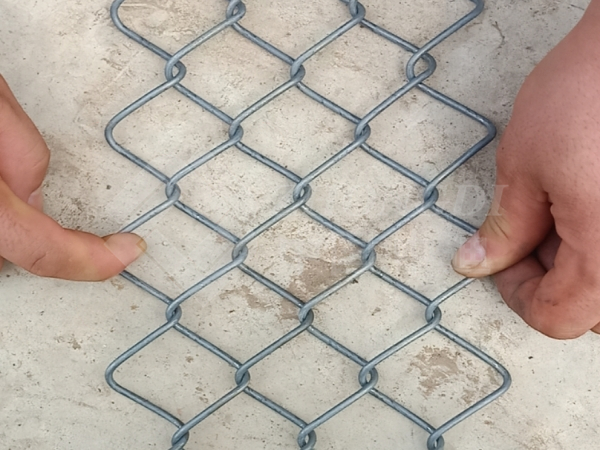

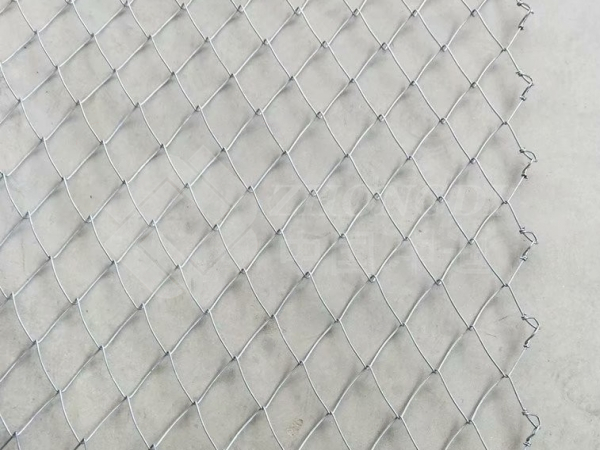

Mesh Types: Rhomboid Hole or Square Hole.
Mesh Height: 10mm, 30mm, etc

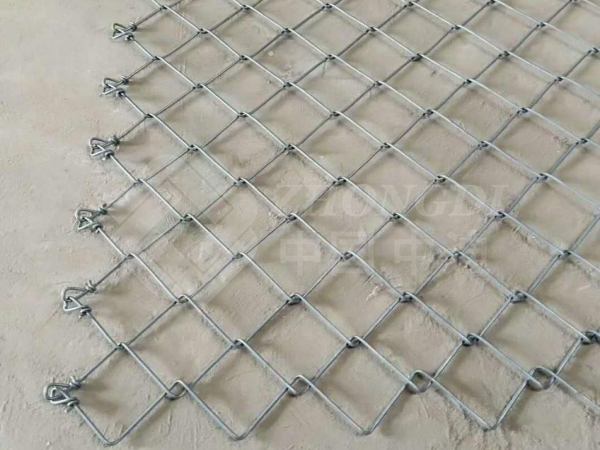

Mesh Ending: Knotted Edge, Knuckle Edge, Twist Edge, Ferrule Edge, etc.
Roll Width: 3.5m, 2.9m, 2.5m, 1.0m etc
Roll Length: 10m, 20m, 30m etc
