Ends Knotted Mesh / Edges Knotted Mesh / Anchored Mesh / Inchalam Mesh / Net With Anchor / Anchored Wire Mesh / High Tensile Steel Wire Mesh

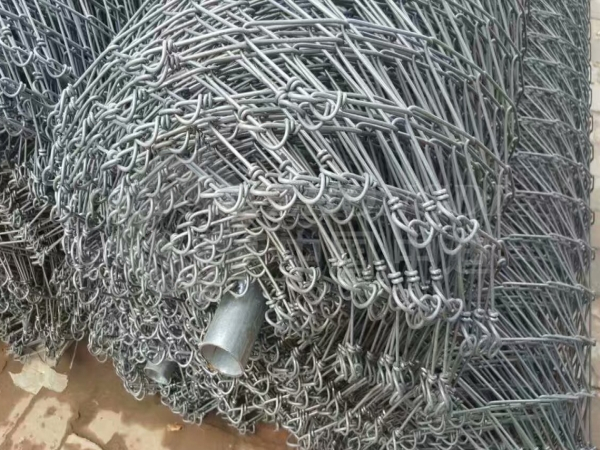

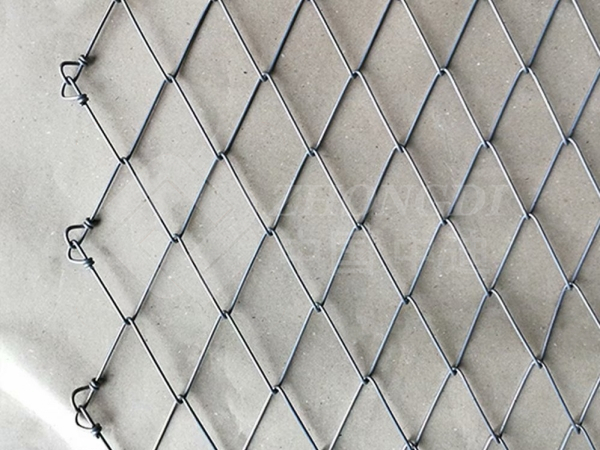

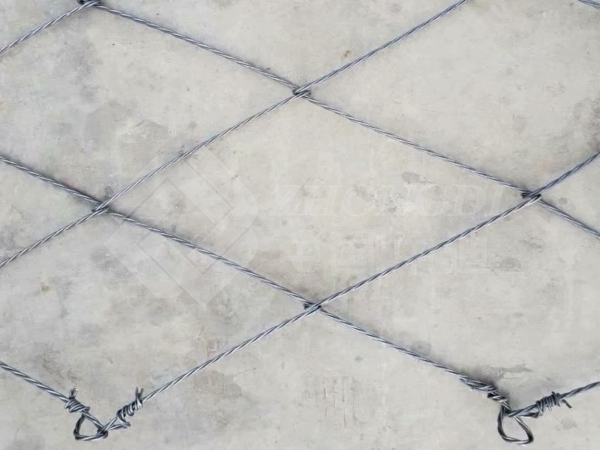

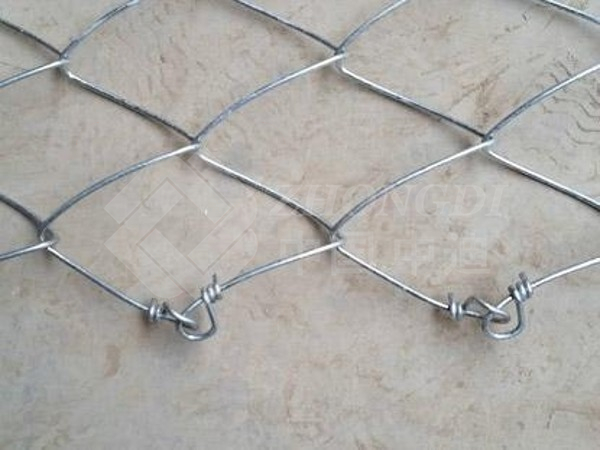

Knotted Ends Mesh is a high-strength steel wire mesh featuring specially fixed knots tightly connected at the edge of each mesh. During production we ensure that each fixed knot is tight (≥ 1.5 laps). After the stitching is strengthened by the fixed knot, it forms a solid and unified whole, effectively improving the impact resistance of the mesh surface after splicing and ensuring the greatest amount of protection.

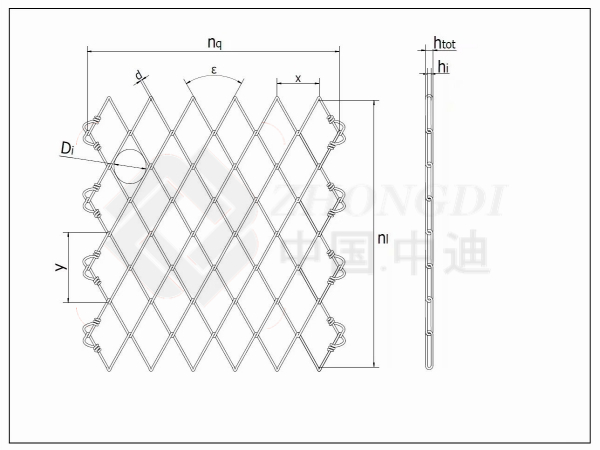

Knotted Ends Mesh is made of high tensile strength steel wire with commonly used wire diameters of 3.0mm 4.0mm 4.4mm 2.0mm, etc. The mesh is diamond or square in structure, while the mesh size is 50 * 50mm, 55 * 55mm, 65 * 65mm, 83 * 143mm, 102 * 177mm, etc. The tensile strength of the high tensile strength steel wire is usually 1770Mpa, 370Mpa, 900Mpa, and the surface anti-corrosion treatment methods or raw materials of high tensile strength steel wire are included ① Zinc coating ≥200g/m2, or ② Zn95% / Al 5-10%(Zinc coating ≥150g/m)③Stainless Steel 304 Material.
Knotted Ends Mesh Roll width: 2.9m, 3.2m or 3.5m
Knotted Ends Mesh Roll length:10m 20m or 30m

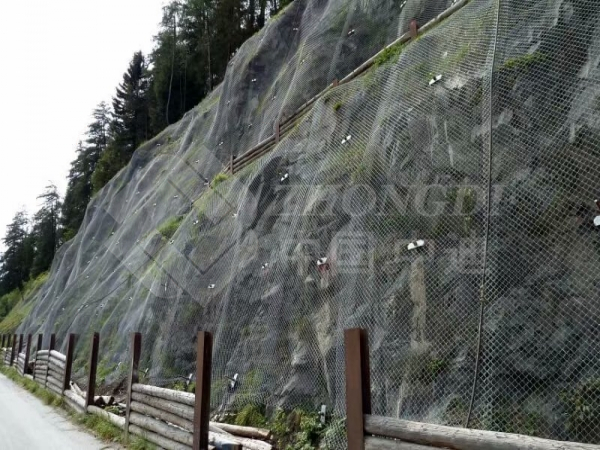

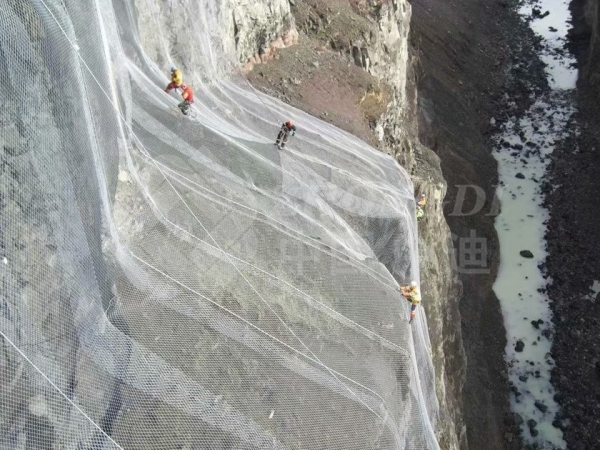

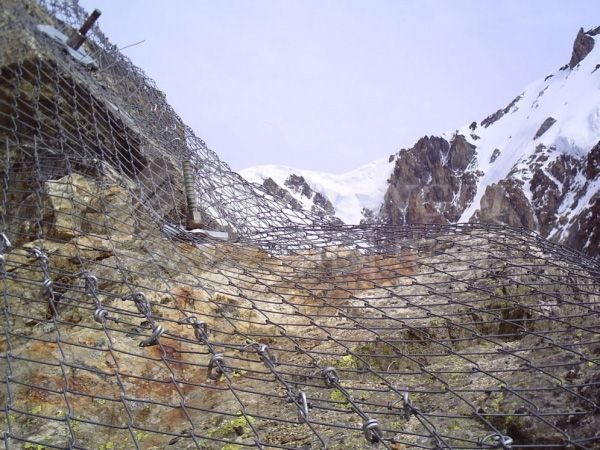

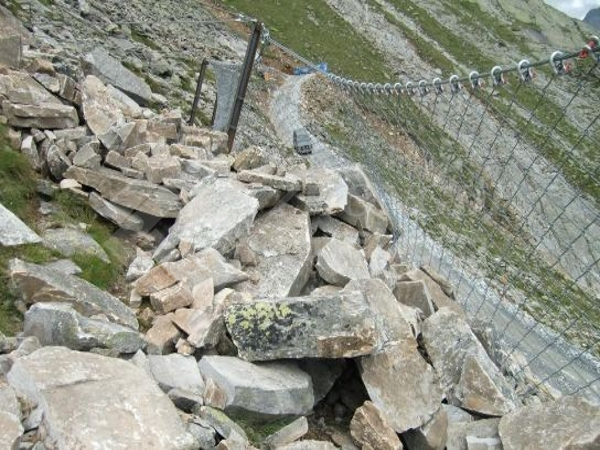

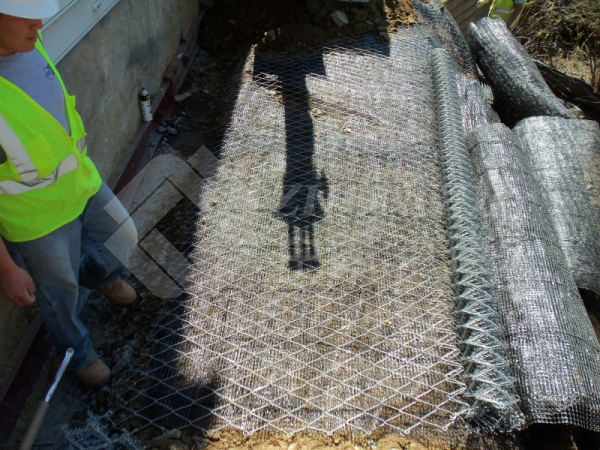

This type of mesh is usually used in slope protection systems to enhance the stability of the slope, preventing landslides and damage caused by falling rocks. Knotted Ends Mesh's tightly knotted structure has been widely used in slope stabilization mesh, rockfall protection net, landslide prevention mesh, mountain rockfall protection mesh, wire mesh drapery, debris flow barrier, avalanche prevention barrier, etc.
