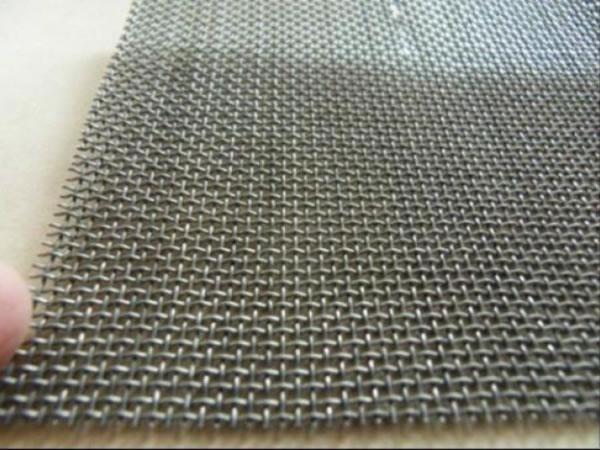

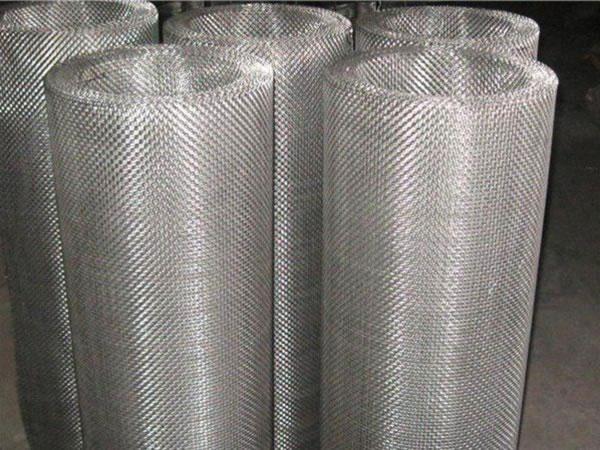

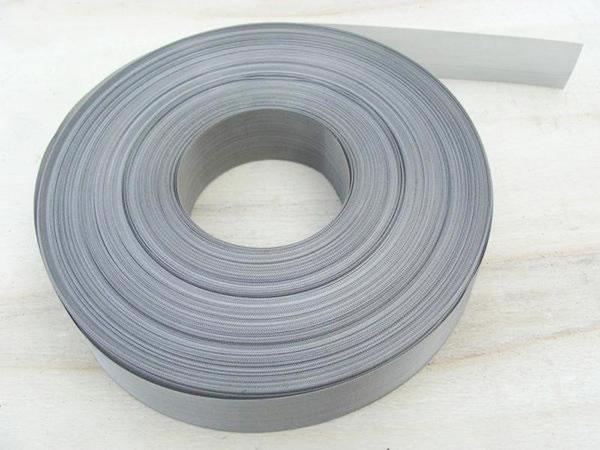

Nichrome Wire Mesh

This product has been discontinued and removed from our shelves.

Inquiry Form

Material: Nichrome wire Cr20Ni80, Cr15Ni60, Cr20Ni35
Mesh Count: 1-100
Width: 0.1m-1.5m Length: 30m, special sizes can be customized
Weave: Plain weave, Twill weave

Features of Nichrome Wire Mesh:
Nichrome wire mesh is known for the following features: Good ductility, high tensile strength, high oxidation and sulfur resistance, permeability resistance, superior elongation, non-magnetic performance and high temperature resistance.

Chemical Composition
Grade % Ni Cr Fe Al Mn Si C P S
Cr20Ni80 Min Bal 20 - - 0.6 0.75 0.08 0.02 0.08
Max 23 1.0 0.2 1.6
Cr15Ni60 Min 55 15 Bal - - 0.75 0.08 0.02 0.15
Max 61 18 0.5 0.6 1.6
Cr20Ni35 Min 34 18 Bal - 1.0 1 0.1 0.03 0.025
Max 37 21 0.5 3

Applications of Nichrome wire mesh:
Nichrome wire mesh is widely used in aerospace, shipbuilding, weapons manufacturing, chemical machinery, electric power, desalination, medical apparatus and instruments.
