This product has been discontinued and removed from our shelves.
Material: nickel 200, nickel 205, nickel 270, N2, N4, N6, N8
Mesh Count: 1-300
Weaving: Plain weave, twill weave, dutch weave

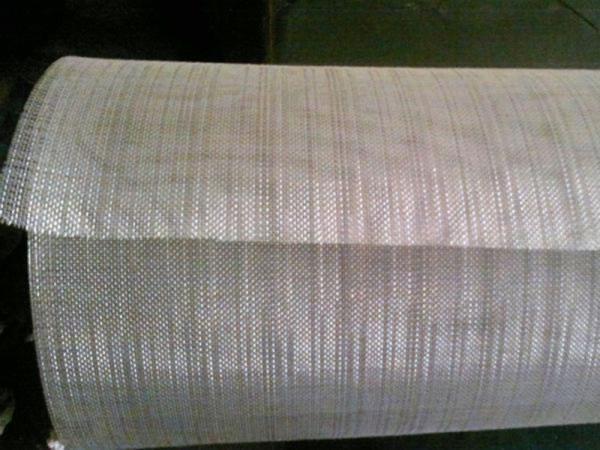

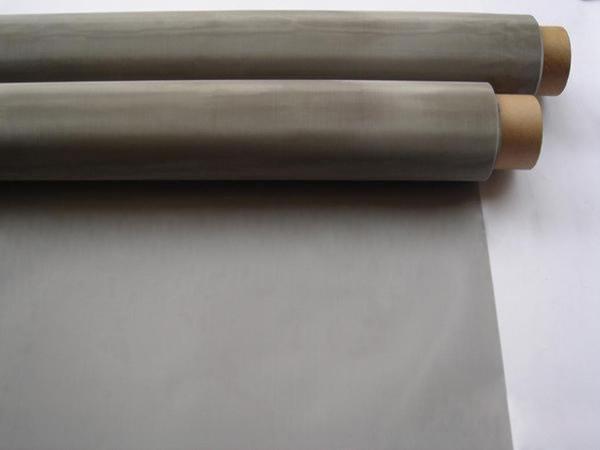

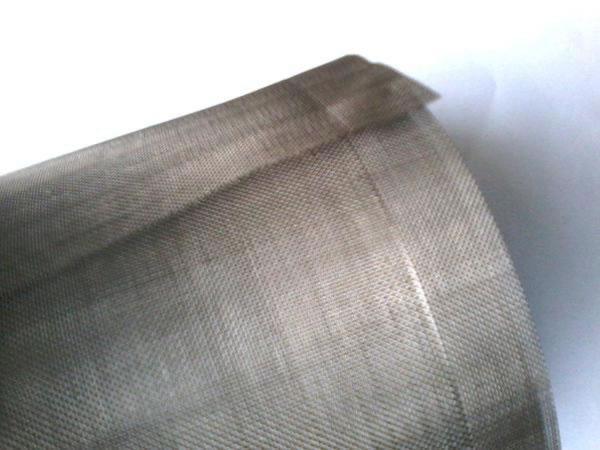

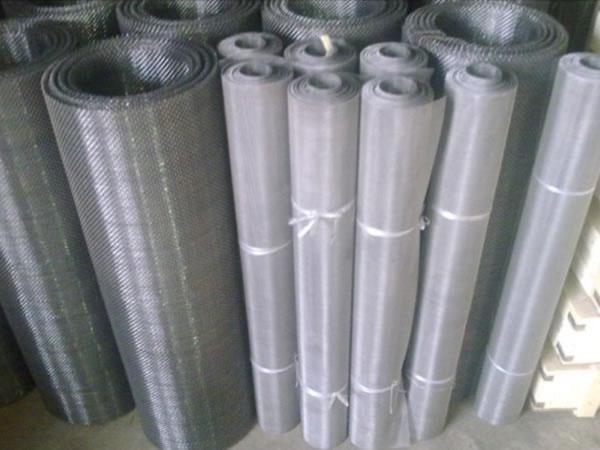

Features of Pure Nickel Mesh Screen:
Nickel Mesh Screen features an excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, and wear resistance.
Grade | C% | Cu% | Fe% | Mn% | Ni% | S% | Si% | Co% | Cr% | Mg% | Ti% |
Nickel 200 | 0.015 | 0.25 | 0.40 | 0.35 | 99.0 | 0.01 | 0.35 | -- | -- | -- | -- |
Nickel 205 | 0.02 | 0.001 | 0.005 | 0.001 | 99.97 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
Nickel 270 | 0.15 | 0.15 | 0.20 | 0.35 | 99.0 | 0.15 | 0.15 | -- | 0.01- 0.05 | 0.01- 0.08 | -- |
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Impurity Sum | |||
Min | Max | |||||||||||
N2 | 99.98 | .001 | .003 | .002 | .005 | .003 | .001 | .007 | .02 | |||
N4 | 99.9 | .015 | .03 | .002 | .01 | .01 | .001 | .04 | .1 | |||
N6 | 99.5 | .06 | .10 | .05 | .10 | .10 | .005 | .10 | .5 | |||
N8 | 99.0 | .15 | .15 | .20 | .20 | .10 | .015 | .30 | 1.0 |
Specifications | ASTM B160 |
Density | 0.321 lbs per cubic inch |
Tensile Strength | 70 Kpsi |
Elongation | 30 % |
Melting temperature | 2625 oF |
Highest service Temperature | 1200 oF |
Poisson's Ratio | 0.29 |
Thermal Conductivity | 463 |
Mean Coeff Thermal Expansion | 7.4 |
Modulus of Elasticity Tension | 29.7 |
Specification List of Nickel Mesh Screen | |||||||||
Mesh/Inch | Wire Dia mm d |
Mesh Opening mm w |
Opening Area A % |
Weight (kg/sq m) |
Mesh /Inch | Wire Dia mm d |
Mesh Opening mm w |
Opening Area A % |
Weight (kg/sq m) |
20 | 0.180 | 1.090 | 74% | 0.366 | 180 | 0.050 | 0.091 | 42% | 0.254 |
40 | 0.15 | 0.485 | 58% | 0.508 | 200 | 0.050 | 0.077 | 37% | 0.282 |
60 | 0.120 | 0.303 | 51% | 0.488 | 250 | 0.04 | 0.061 | 37% | 0.226 |
80 | 0.100 | 0.218 | 47% | 0.452 | 270 | 0.035 | 0.059 | 39% | 0.186 |
100 | 0.080 | 0.174 | 47% | 0.361 | 300 | 0.030 | 0.054 | 41% | 0.152 |
120 | 0.060 | 0.151 | 51% | 0.244 | 325 | 0.030 | 0.048 | 38% | 0.165 |
150 | 0.060 | 0.109 | 41% | 0.305 | 350 | 0.030 | 0.042 | 34% | 0.177 |
160 | 0.055 | 0.104 | 43% | 0.273 | 400 | 0.030 | 0.033 | 27% | 0.203 |
Applications of Pure Nickel Mesh Screen:
The pure nickel mesh screen is widely used as the filtration materials in the mining, oil, chemical, food, pharmaceutical, machine and other fields. The nickel woven wire mesh has a high electrical conductivity, so it can be used in electronics, as well as in battery production.
